Pipe threading machines provide a workstation for high-volume threading jobs that require accurate cuts and faster threading than handheld power threaders. Their adjustable die heads cut a range of pipe sizes with a single set of dies, and their large work surface supports pipe. Extra-long lengths of pipe may require additional support from a pipe stand. Pipe threading machines rotate their die head around pipe, conduit, bolts, and rods to cut or repair external threads that mate with internal threads on fittings or fasteners. They are commonly used when installing new pipe or replacing damaged sections of pipe.
This M18 Fuel cordless pipe threader with One-Key kit operates on two 18V Redlithium HD12 Ah batteries and has a pipe diameter capacity ranging from 0.13 to 2 inches. It has a brushless motor, side grip, a carrying handle, and is compatible with Ridgid 12R dies. The kit includes a threader, two batteries, a rapid charger, a support arm, and a carrying case.
This M18 Fuel cordless pipe threader with One-Key kit operates on two 18V Redlithium HD12 Ah batteries and has a pipe diameter capacity ranging from 0.13 to 2 inches. It has a brushless motor, side grip, a carrying handle, and is compatible with Ridgid 12R dies. The kit includes a threader, two batteries, a rapid charger, a support arm, and a carrying case.
This corded model 300 power drive complete operates at 115V/25 to 60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a ½HP universal reversible motor with a spindle speed of 57 RPM, a heavy-duty forward/off/reverse/integral foot switch, a speed chuck, a rear centring device, and two heavy-duty support bars.
This corded model 300 power drive complete operates at 115V/25 to 60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a ½HP universal reversible motor with a spindle speed of 57 RPM, a heavy-duty forward/off/reverse/integral foot switch, a speed chuck, a rear centring device, and two heavy-duty support bars.
This corded power threading machine 300 compact kit with NPT thread operates at 115V/50 to 60Hz and has a pipe diameter capacity ranging from ½ to 2 inches. It has a ½ HP universal motor with a spindle speed of 38 RPM, a heavy-duty rotary forward/off/reverse switch with an integral foot switch, a bolt capacity of ¼ to 2 inches, and a hammer chuck.
This corded power threading machine 300 compact kit with NPT thread operates at 115V/50 to 60Hz and has a pipe diameter capacity ranging from ½ to 2 inches. It has a ½ HP universal motor with a spindle speed of 38 RPM, a heavy-duty rotary forward/off/reverse switch with an integral foot switch, a bolt capacity of ¼ to 2 inches, and a hammer chuck.
This Supertronic 2SE corded compact threading machine operates at 115V/50 to 60Hz and has a pipe diameter capacity ranging from ½ to 2 inches. It has NPT thread, a 1HP standard motor with a spindle speed of 40 RPM, and bolt sizes ranging from ½ to 4 inches. The reversible machine with ½ to ¾ inches die sizes includes one gallon oil and reamer.
This Supertronic 2SE corded compact threading machine operates at 115V/50 to 60Hz and has a pipe diameter capacity ranging from ½ to 2 inches. It has NPT thread, a 1HP standard motor with a spindle speed of 40 RPM, and bolt sizes ranging from ½ to 4 inches. The reversible machine with ½ to ¾ inches die sizes includes one gallon oil and reamer.
This corded model 300 power drive complete operates at 115V/25 to 60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a ½HP universal reversible motor with a spindle speed of 38 RPM, a heavy-duty forward/off/reverse/integral foot switch, a speed chuck, a rear centring device, and two heavy-duty support bars.
This corded model 300 power drive complete operates at 115V/25 to 60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a ½HP universal reversible motor with a spindle speed of 38 RPM, a heavy-duty forward/off/reverse/integral foot switch, a speed chuck, a rear centring device, and two heavy-duty support bars.
This corded automatic threading machine with ½" to 2" NPT operates at 115V/18A/60Hz and has a pipe diameter capacity ranging from ⅛ to 2 inches. It has a 2HP universal motor with a spindle speed of 16/46/58 RPM, a heavy-duty forward/off/reverse switch, an 811A die-head, a bolt range of 5/16 to 2 inches, and a three-prong plug.
This corded automatic threading machine with ½" to 2" NPT operates at 115V/18A/60Hz and has a pipe diameter capacity ranging from ⅛ to 2 inches. It has a 2HP universal motor with a spindle speed of 16/46/58 RPM, a heavy-duty forward/off/reverse switch, an 811A die-head, a bolt range of 5/16 to 2 inches, and a three-prong plug.
This corded pipe threading machine operates at 120V/60Hz/15A and has a pipe threading capacity ranging from ¼" to 4" NPT. It has a 1½HP induction motor with a spindle speed ranging from 12 to 36 RPM, a forward/off/reverse/rotary switch with an integral foot switch, a two-speed gearbox, and a bolt range of ¼ to 2 inches.
This corded pipe threading machine operates at 120V/60Hz/15A and has a pipe threading capacity ranging from ¼" to 4" NPT. It has a 1½HP induction motor with a spindle speed ranging from 12 to 36 RPM, a forward/off/reverse/rotary switch with an integral foot switch, a two-speed gearbox, and a bolt range of ¼ to 2 inches.
This corded power threading machine with a ½" to 1½" NPT hammer manual chuck operates at 115V/60Hz and has a pipe threading diameter capacity ranging from ¼ to 1½ inches. It has a ½HP universal motor with a spindle speed of 44 RPM, an on/off switch with an integral foot switch, bolt size ranging from 5/16 to 1 inches, and through-the-head oiling.
This corded power threading machine with a ½" to 1½" NPT hammer manual chuck operates at 115V/60Hz and has a pipe threading diameter capacity ranging from ¼ to 1½ inches. It has a ½HP universal motor with a spindle speed of 44 RPM, an on/off switch with an integral foot switch, bolt size ranging from 5/16 to 1 inches, and through-the-head oiling.
This corded automatic threading machine with NPT die operates at 115V/20A/60Hz and has a pipe threading capacity ranging from ½ to 2 inches. It has a ½ HP universal motor with a spindle of 36 RPM, a heavy-duty forward/off/reverse switch, an 811A die-head, a 5-flute cone reamer, an oil pump, and a bolt capacity of ¼ to 2 inches.
This corded automatic threading machine with NPT die operates at 115V/20A/60Hz and has a pipe threading capacity ranging from ½ to 2 inches. It has a ½ HP universal motor with a spindle of 36 RPM, a heavy-duty forward/off/reverse switch, an 811A die-head, a 5-flute cone reamer, an oil pump, and a bolt capacity of ¼ to 2 inches.

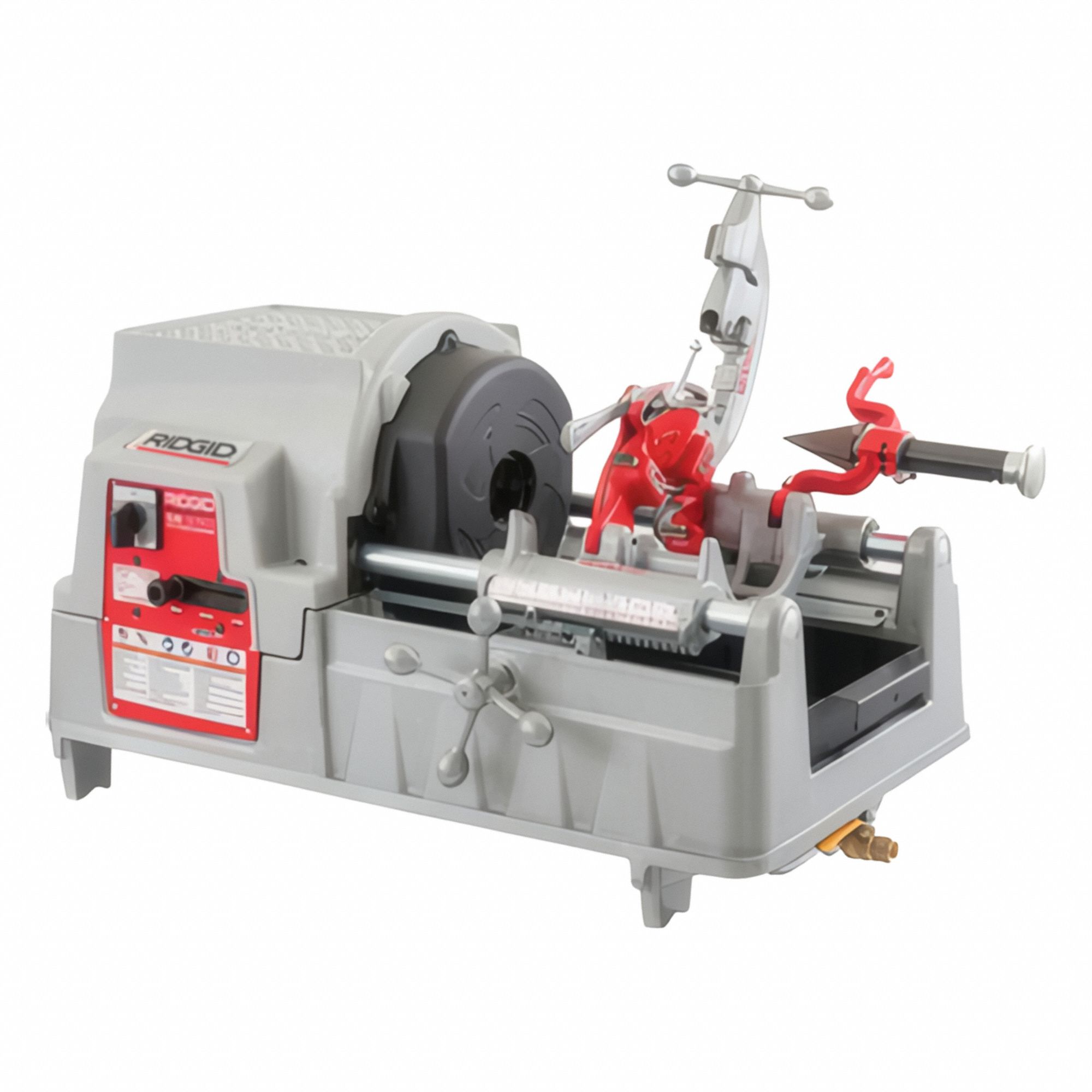

This automatic threading machine with ½" to 2" NPT operates at 115V/20A/60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a 2HP universal motor with a spindle speed of 16/46/58 RPM, a heavy-duty forward/off/reverse switch, an 816/817 die-head, a 5-flute cone reamer, a bolt range of 5/16 to 2 inches, and an automatic chuck.
This automatic threading machine with ½" to 2" NPT operates at 115V/20A/60Hz and has a pipe threading capacity ranging from ⅛ to 2 inches. It has a 2HP universal motor with a spindle speed of 16/46/58 RPM, a heavy-duty forward/off/reverse switch, an 816/817 die-head, a 5-flute cone reamer, a bolt range of 5/16 to 2 inches, and an automatic chuck.
Geared pipe threader, model 141, threads 2-1/2 inches, 3 inches, 3-1/2 inches, 4 inches pipe, 1 set dies, drive pinion kicks out automatically. 1 set of high-speed dies threads 4 sizes of pipe and conduit, adjust for tapered, straight, over/under size threads.
Geared pipe threader, model 141, threads 2-1/2 inches, 3 inches, 3-1/2 inches, 4 inches pipe, 1 set dies, drive pinion kicks out automatically. 1 set of high-speed dies threads 4 sizes of pipe and conduit, adjust for tapered, straight, over/under size threads.

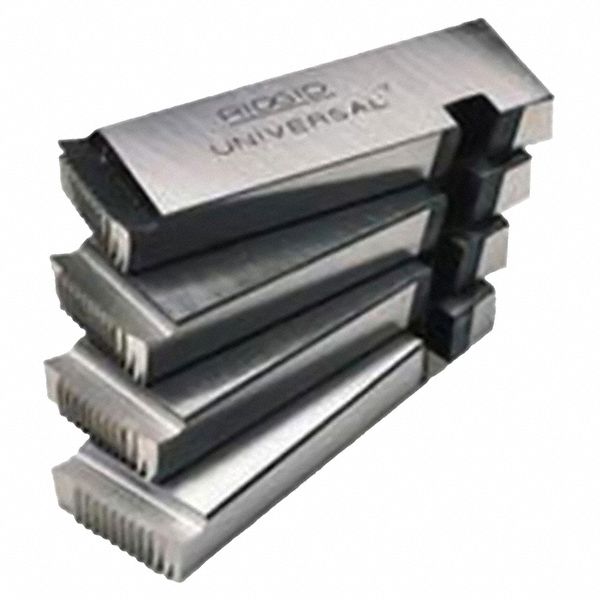

These right-hand pipe dies are made of high-speed steel and have 1" to 2" NPSM thread with 11½ threads per inch. They are for use with 504a, 711, 713, 811a, 815a, 816, 817, and 842 universal die heads.
These right-hand pipe dies are made of high-speed steel and have 1" to 2" NPSM thread with 11½ threads per inch. They are for use with 504a, 711, 713, 811a, 815a, 816, 817, and 842 universal die heads.
This SDT ½ HP universal electric reversible motor has a gearbox with 38 RPM and measures 9 length x 14 width x 10 inches height. It is for use with Model 300/300A power drive.
This SDT ½ HP universal electric reversible motor has a gearbox with 38 RPM and measures 9 length x 14 width x 10 inches height. It is for use with Model 300/300A power drive.

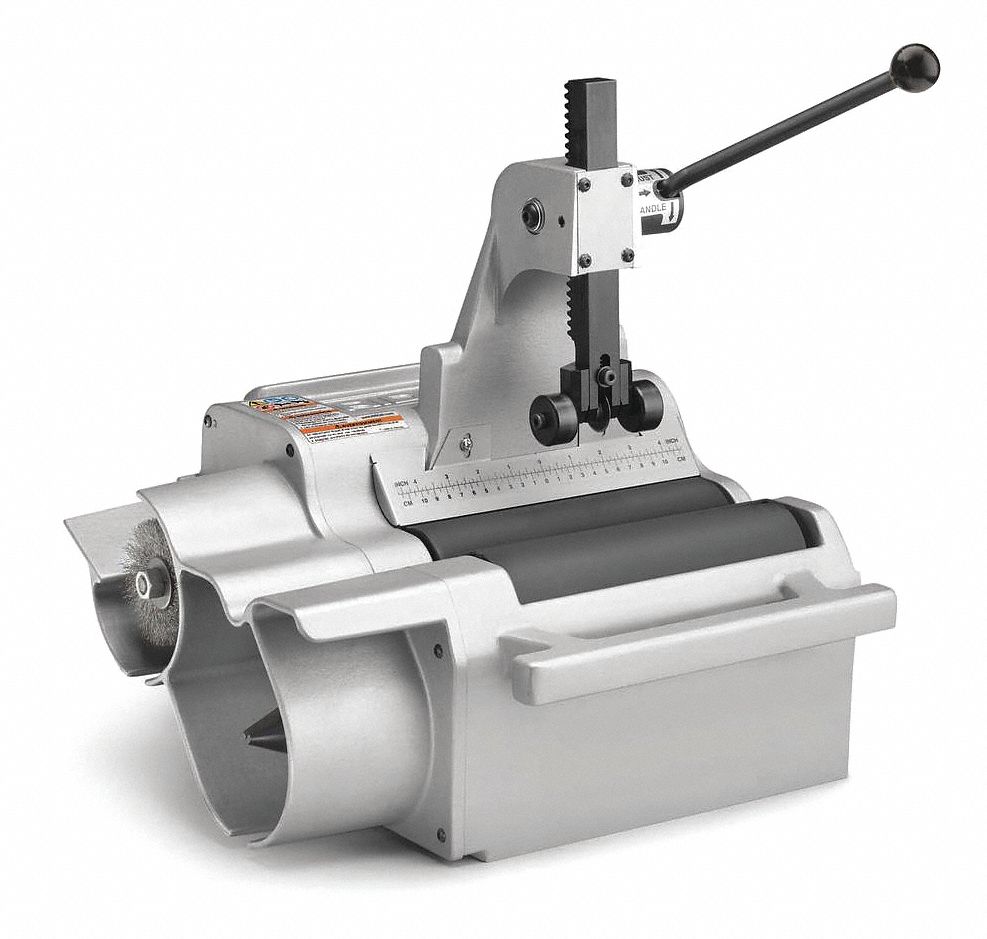

This corded copper cutting and prep machine operates at 115V/3.2A/60Hz and has a copper/stainless steel tube/fitting diameter capacity ranging from ½ to 4 inches. It has a 1/3 HP induction motor with a roller speed of 300 RPM, a carrying handle, a Model 122 stainless steel cutter wheel, a toggle on/off switch, and a right-hand single flute cone reamer.
This corded copper cutting and prep machine operates at 115V/3.2A/60Hz and has a copper/stainless steel tube/fitting diameter capacity ranging from ½ to 4 inches. It has a 1/3 HP induction motor with a roller speed of 300 RPM, a carrying handle, a Model 122 stainless steel cutter wheel, a toggle on/off switch, and a right-hand single flute cone reamer.

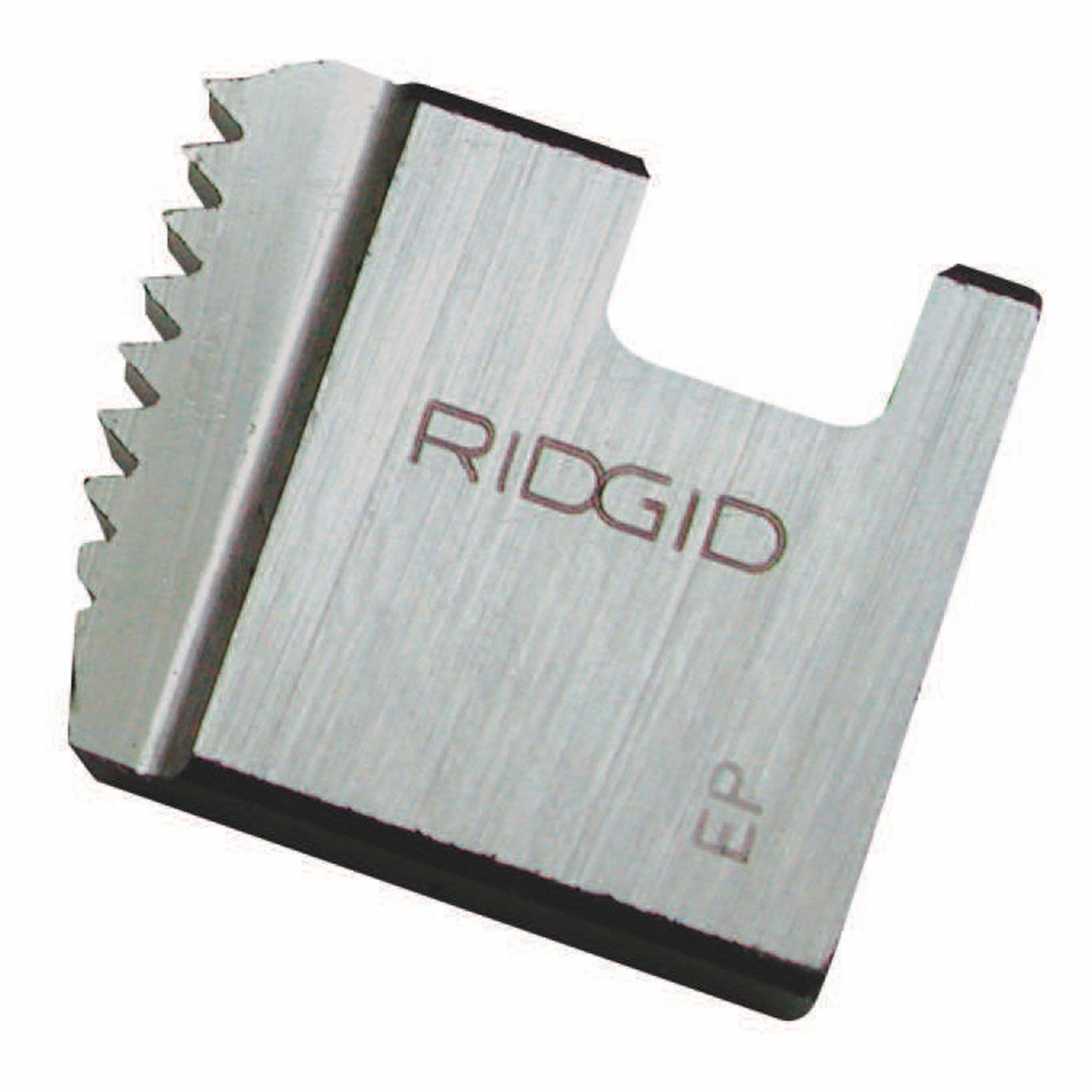

These right-hand pipe dies for stainless steel are made of high-speed steel and have ⅛" to 27" NPT thread. They have 11½ threads per inch, four dies, and a 1 to 2 inches compatible pipe size. The pipe dies are for use with 504a, 711, 713, 811a, 815a, 816, 817, and 842 universal die heads.
These right-hand pipe dies for stainless steel are made of high-speed steel and have ⅛" to 27" NPT thread. They have 11½ threads per inch, four dies, and a 1 to 2 inches compatible pipe size. The pipe dies are for use with 504a, 711, 713, 811a, 815a, 816, 817, and 842 universal die heads.
