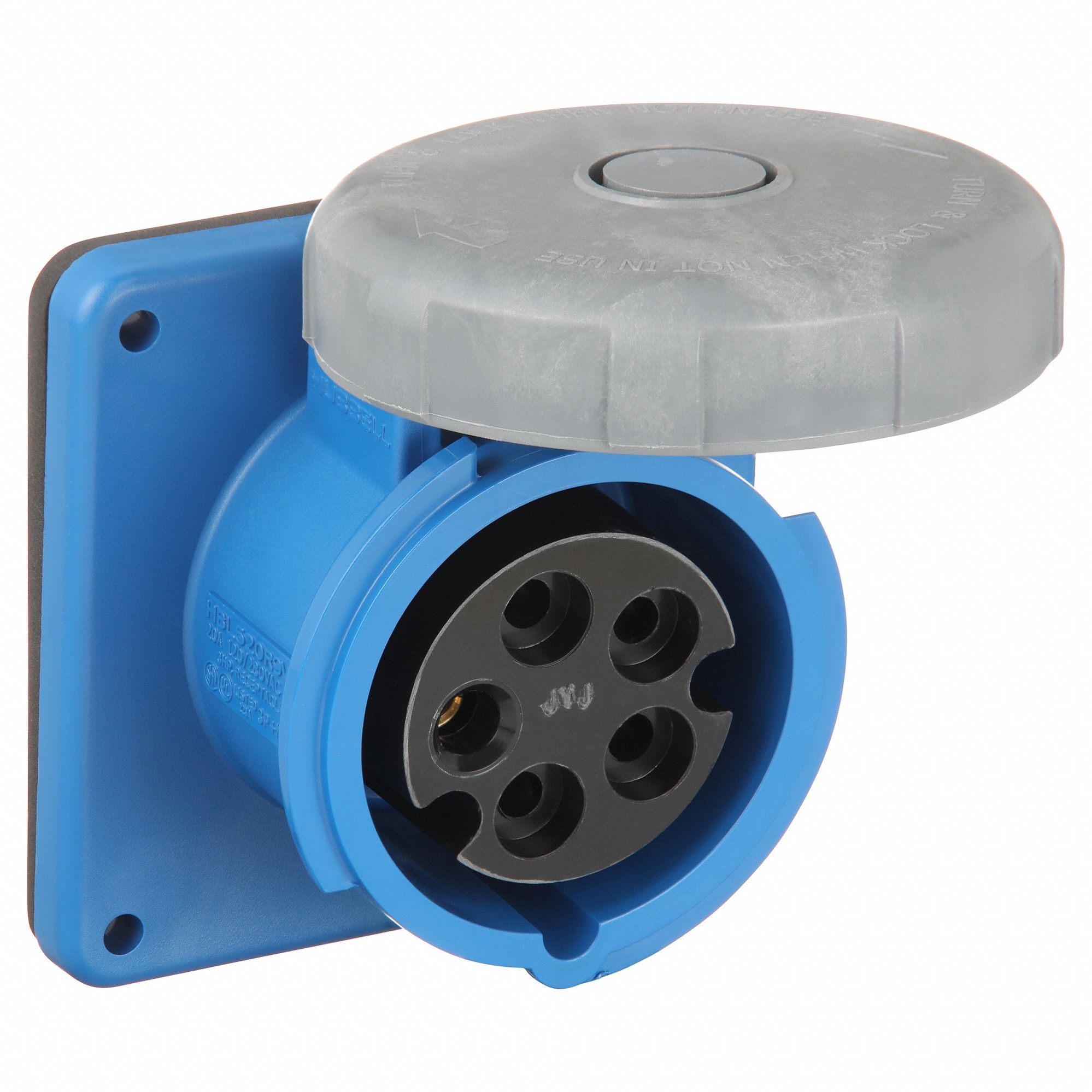

WATERTIGHT PIN AND SLEEVE RECEPTACLE, 30 A, 125/250V AC, 1/2 HORSEPOWER RATING, IEC GROUNDING

WATERTIGHT PIN AND SLEEVE RECEPTACLE, 30 A, 125/250V AC, 1/2 HORSEPOWER RATING, IEC GROUNDING

HUBBELL WIRING DEVICE-KELLEMS

WATERTIGHT PIN AND SLEEVE RECEPTACLE, 30 A, 125/250V AC, 1/2 HORSEPOWER RATING, IEC GROUNDING close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WATERTIGHT PIN AND SLEEVE RECEPTACLE, 30 A, 125/250V AC, 1/2 HORSEPOWER RATING, IEC GROUNDING

WATERTIGHT PIN AND SLEEVE RECEPTACLE, 30 A, 125/250V AC, 1/2 HORSEPOWER RATING, IEC GROUNDING

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $675.84 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL520R9W
  • Mfr. Model # HBL520R9W
  • UNSPSC # 39121406
  • CATALOGUE PAGE # N/A
  • Shipping Weight 1.15 lbs

Product Details

This pin and sleeve connectors has three poles, is single phase, a voltage rating of 125/250V AC, and an operating temperature range of -40 Degrees C to 75 Degrees C. It is: corrosion resistant, impact resistant, watertight. This pin and sleeve connectors meets the standards for CSA, IEC, UL 1682, UL 94. It is orange, and has 12 AWG minimum wire size to 8 AWG maximum wire size.

Technical Specs

  • ItemPin and Sleeve Connectors
  • Flange TypeFlanged
  • Horsepower Rating1/2 hp
  • Housing MaterialThermoplastic
  • NEMA Enclosure Rating4X
  • Number of Poles3
  • PhaseSingle
  • ShroudedYes
  • Switch RatedNo
  • Wire Connection TypeScrew Terminals
  • Connection OrientationStraight
  • FeaturesColor Coded, Split Sleeves with Self-Adjusting Stainless Steel Springs
  • Housing Material GradeZytel 101
  • Maximum Operating Temperature75 Degrees C
  • Minimum Operating Temperature-40 Degrees C
  • Power Indicating LightNo
  • UL 94 Flammability RatingHB
  • Current Rating 30 A
  • Grounding Style IEC
  • Housing Colour Orange
  • IP Rating IP22
  • Number of Gangs 1
  • Number of Wires 4
  • Reverse Service No
  • Standards CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
  • Voltage Rating 125/250V AC
  • Cap Type Spring-Loaded Cap
  • Face Diameter 3.48 in
  • Grounding Grounded
  • Market Industrial
  • Maximum Wire Size 8 AWG
  • Minimum Wire Size 12 AWG
  • Resistance Properties Corrosion Resistant, Impact Resistant, Watertight
  • Country of Origin United States (subject to change)
