IEC PIN AND SLEEVE PLUG, 20 A, 120/208V AC, IEC GROUNDING, 10 HORSEPOWER RATING

IEC PIN AND SLEEVE PLUG, 20 A, 120/208V AC, IEC GROUNDING, 10 HORSEPOWER RATING

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $669.45 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL520P9W
  • Mfr. Model # HBL520P9W
  • UNSPSC # 39121402
  • CATALOGUE PAGE # N/A
  • Shipping Weight 1.2 lbs

Product Details

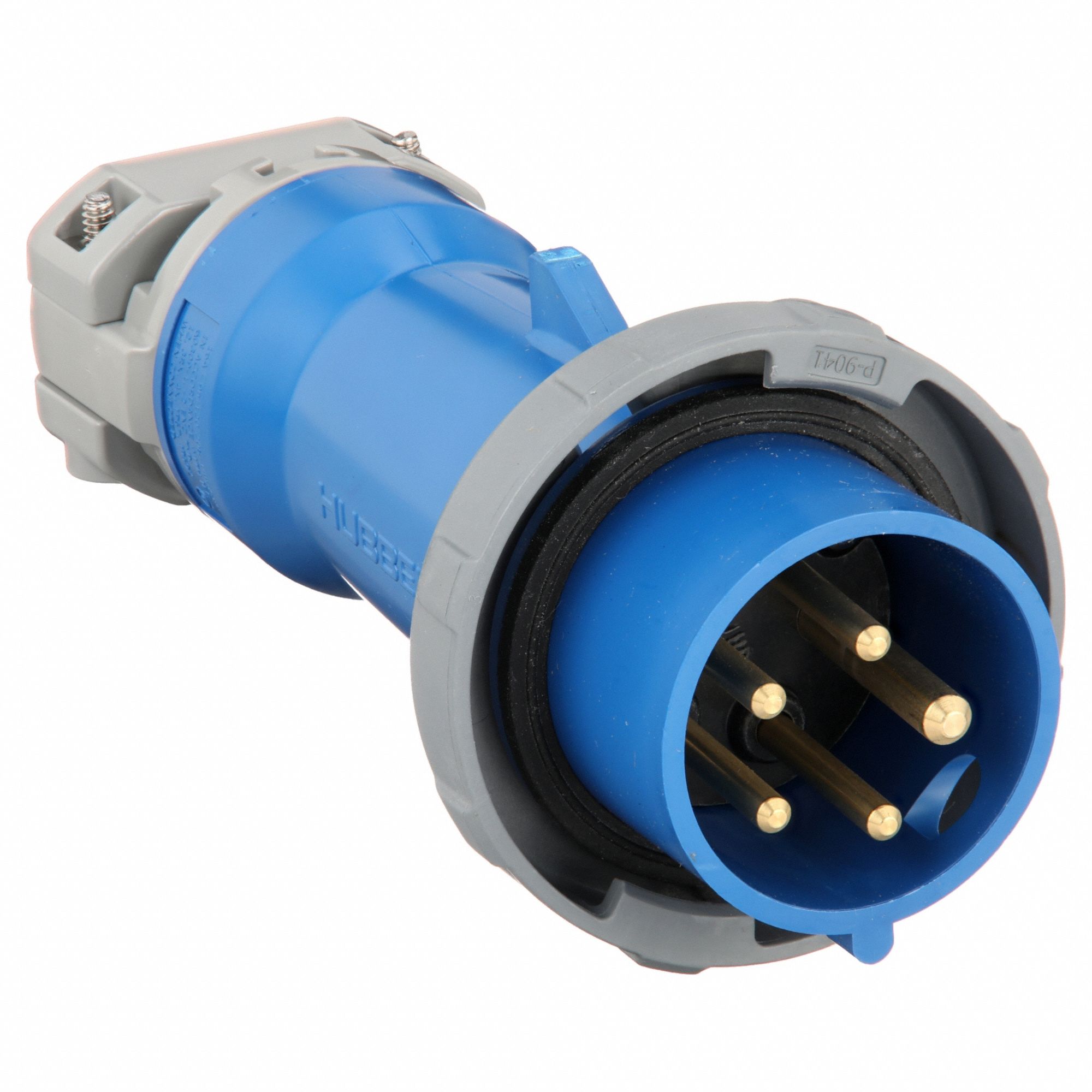

This pin and sleeve plug has four poles, three phases, a voltage rating of 120/208V AC, and an operating temperature range of -40 Degrees C to 75 Degrees C. It is: impact resistant, moisture resistant, watertight, measures 7.64 inch L. This pin and sleeve plug meets the standards for CSA LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2. It is blue, and has 14 AWG minimum wire size to 10 AWG maximum wire size.

Technical Specs

  • ItemPin and Sleeve Plug
  • Grounding StyleIEC
  • Housing MaterialPolybutylene Terephthalate
  • NEMA Enclosure Rating4X
  • Number of Wires5
  • StandardsCSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2
  • Voltage Rating120/208V AC
  • Cap TypeNo Cap or Cover
  • FeaturesGasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass
  • For Minimum Cable Diameter0.33 in
  • Maximum Operating Temperature75 Degrees C
  • Minimum Operating Temperature-40 Degrees C
  • Overall Length7.64 in
  • Resistance PropertiesImpact Resistant, Moisture Resistant, Watertight
  • ShroudedYes
  • Wire Connection TypeScrew Terminals
  • Current Rating 20 A
  • Housing Colour Blue
  • IP Rating IP67
  • Number of Poles 4
  • Phase Three
  • Switch Rated No
  • Horsepower Rating 10 hp
  • Connection Orientation Straight
  • For Maximum Cable Diameter 0.83 in
  • Grounding Grounded
  • Maximum Wire Size 10 AWG
  • Minimum Wire Size 14 AWG
  • Power Indicating Light No
  • Reverse Service No
  • UL 94 Flammability Rating HB
  • Country of Origin United States (subject to change)
