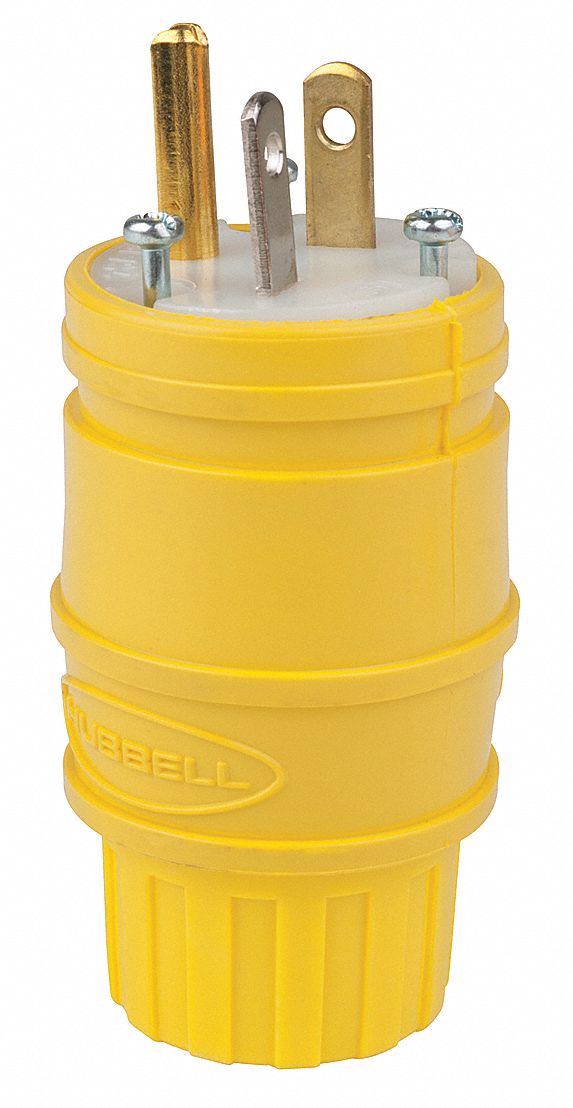

WATERTIGHT STRAIGHT BLADE PLUG, 5-20P, 20 A, 125V AC, YELLOW, 2 POLES, SCREW TERMINALS

WATERTIGHT STRAIGHT BLADE PLUG, 5-20P, 20 A, 125V AC, YELLOW, 2 POLES, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

WATERTIGHT STRAIGHT BLADE PLUG, 5-20P, 20 A, 125V AC, YELLOW, 2 POLES, SCREW TERMINALS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WATERTIGHT STRAIGHT BLADE PLUG, 5-20P, 20 A, 125V AC, YELLOW, 2 POLES, SCREW TERMINALS

WATERTIGHT STRAIGHT BLADE PLUG, 5-20P, 20 A, 125V AC, YELLOW, 2 POLES, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $70.07 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL14W33
  • Mfr. Model # HBL14W33
  • UNSPSC # 39121402
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.2 lbs

Product Details

This watertight straight blade plug has two poles, is single phase, a voltage rating of 125V AC, and an operating temperature range of -40 Degrees F to 167 Degrees F. It has the following resistance properties: watertight. This watertight straight blade plug meets the standards for CSA C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706. It is yellow, and has 18 AWG minimum wire size to 12 AWG maximum wire size.

Technical Specs

  • ItemWatertight Straight Blade Plug
  • Current Rating20 A
  • Housing MaterialPolycarbonate
  • NEMA Plug Configuration5-20P
  • Number of Poles2
  • Resistance PropertiesWatertight
  • Wire Connection TypeScrew Terminals
  • PhaseSingle
  • For Maximum Cable Diameter0.655 in
  • GradeGeneral
  • Horsepower Rating1/2 hp
  • MarketCommercial, Industrial
  • Maximum Wire Size12 AWG
  • Minimum Wire Size18 AWG
  • UL 94 Flammability RatingV-2
  • Connection Orientation Straight
  • Housing Colour Yellow
  • IP Rating IP55
  • Number of Blades 3
  • Polarized Yes
  • Voltage Rating 125V AC
  • Wiring Style Standard
  • Body Length 2.67 in
  • For Minimum Cable Diameter 0.3 in
  • Grounding Grounded
  • Insulation Material Elastomer
  • Maximum Operating Temperature 167 Degrees F
  • Minimum Operating Temperature -40 Degrees F
  • Standards CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706
  • Country of Origin United States (subject to change)
