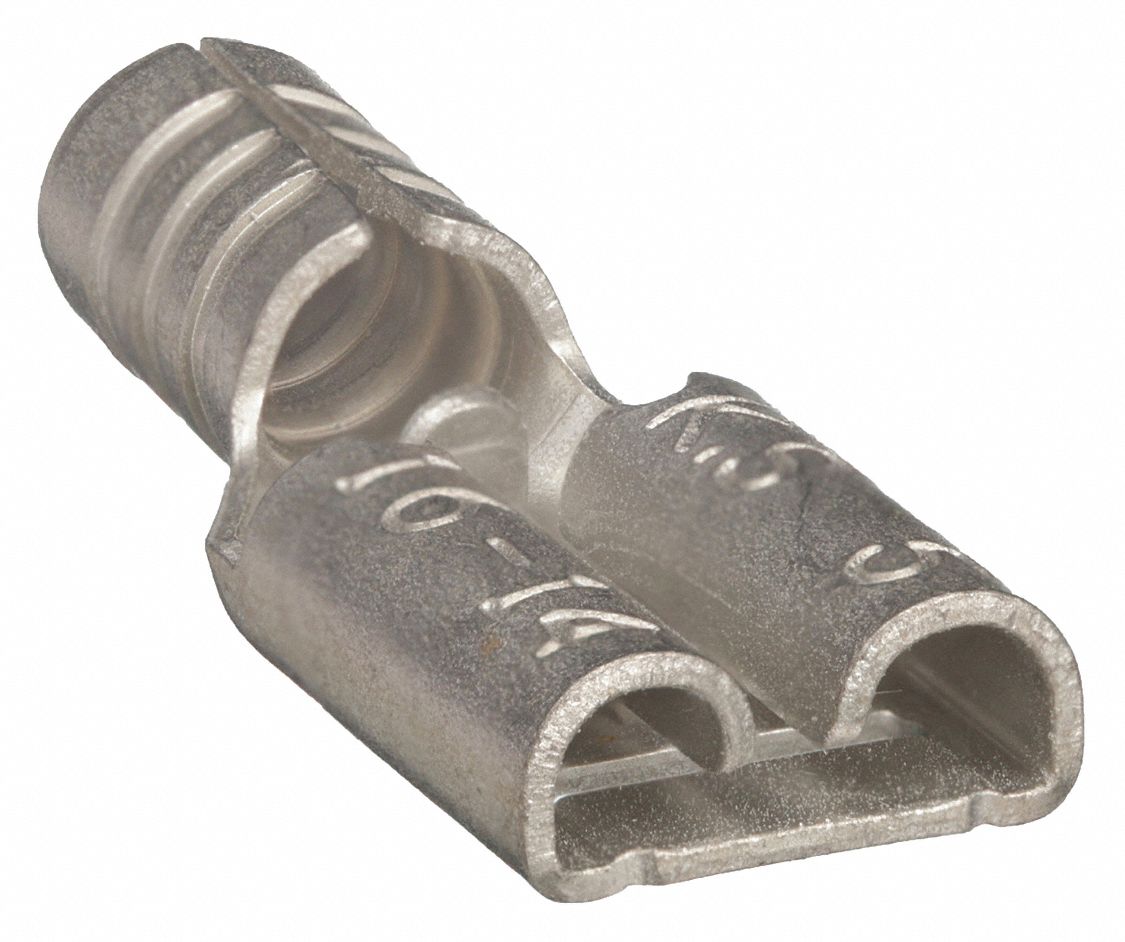

FEMALE DISCONNECT, BARE, NON-INSULATED, 16 AWG TO 14 AWG WIRE SIZE RANGE, 100 PK

FEMALE DISCONNECT, BARE, NON-INSULATED, 16 AWG TO 14 AWG WIRE SIZE RANGE, 100 PK

POWER FIRST

FEMALE DISCONNECT, BARE, NON-INSULATED, 16 AWG TO 14 AWG WIRE SIZE RANGE, 100 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FEMALE DISCONNECT, BARE, NON-INSULATED, 16 AWG TO 14 AWG WIRE SIZE RANGE, 100 PK

FEMALE DISCONNECT, BARE, NON-INSULATED, 16 AWG TO 14 AWG WIRE SIZE RANGE, 100 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $11.36 / pkg. of 100

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5UGL0
  • Mfr. Model # 5UGL0
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 92
  • Shipping Weight 0.6 lbs

Product Details

Female Disconnect, Insulation None, Insulation Type Noninsulated, Colour Code Bare, Wire Range 16 to 14 AWG, Tab Size 0.187 x 0.020 In., Barrel Inside Dia. 0.091 In., Overall Length 0.54 In., Seam Butted, Connection Material Brass, Standards ROHS, Connect

Technical Specs

  • ItemFemale Disconnect
  • Contact FinishTin
  • Disconnect StyleTab
  • Insulation CoverageNone
  • Insulation TypeNon-Insulated
  • Maximum Voltage600V
  • Minimum Wire Size16 AWG
  • Seam StyleButted
  • Tab Thickness0.02 in
  • Terminal TypeSocket
  • Barrel Outside Diameter0.13 in
  • Barrel StyleCrimp
  • Current15 A
  • Strip Length1/4 in
  • Barrel Inside Diameter 0.091 in
  • Contact Material Brass
  • Insulation Colour Bare
  • Insulation Material None
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 14 AWG
  • Overall Length 0.543 in
  • Standards UL/cUL Listed
  • Tab Width 0,187 po
  • Termination Style Crimp
  • Barrel Size Standard
  • Connection Orientation Straight
  • Minimum Operating Temperature 221 Degrees F
  • RoHS Compliant Yes
  • Country of Origin Taiwan (subject to change)
