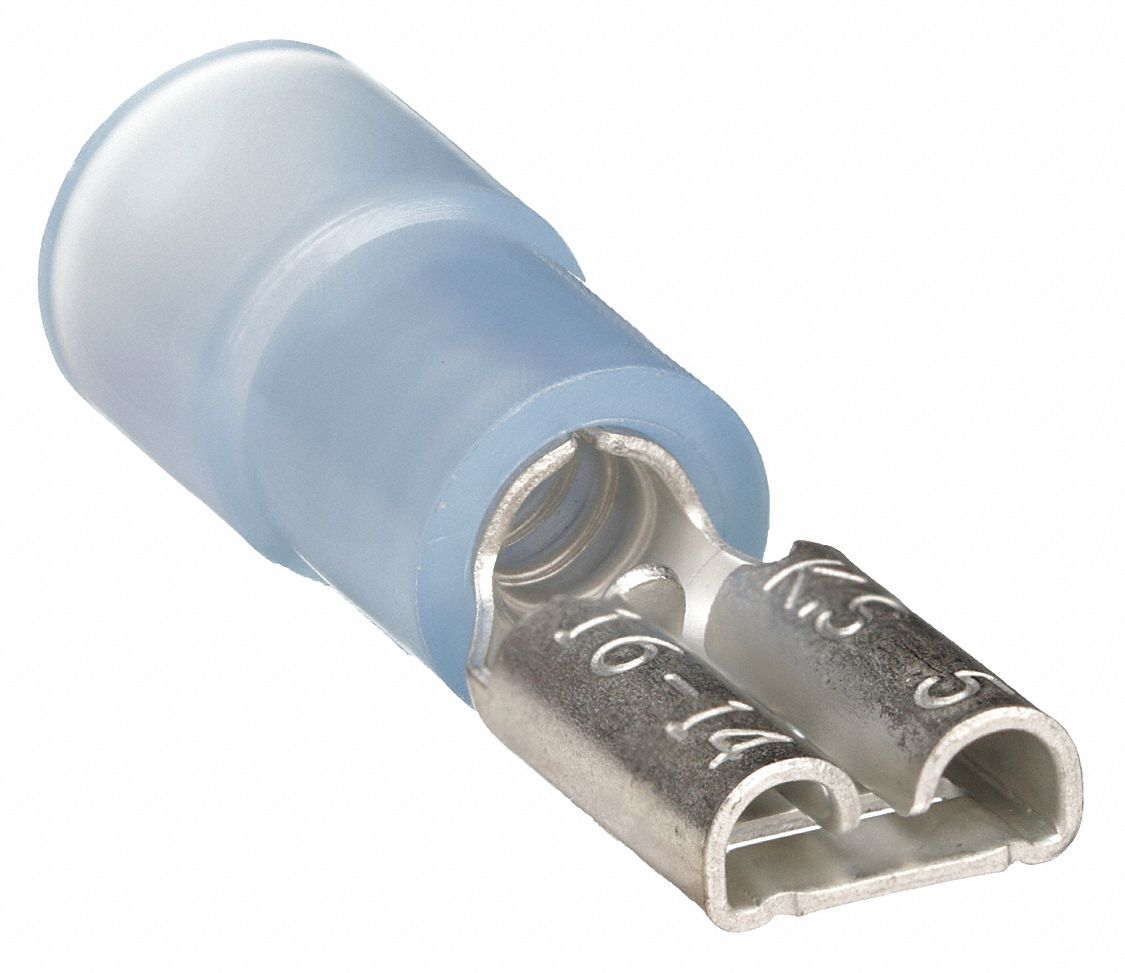

FEMALE DISCONNECT, BLUE, NYLON, PARTIAL COVERAGE, 16 TO 14 AWG, 100 PK

FEMALE DISCONNECT, BLUE, NYLON, PARTIAL COVERAGE, 16 TO 14 AWG, 100 PK

POWER FIRST

FEMALE DISCONNECT, BLUE, NYLON, PARTIAL COVERAGE, 16 TO 14 AWG, 100 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FEMALE DISCONNECT, BLUE, NYLON, PARTIAL COVERAGE, 16 TO 14 AWG, 100 PK

FEMALE DISCONNECT, BLUE, NYLON, PARTIAL COVERAGE, 16 TO 14 AWG, 100 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $14.55 / pkg. of 100

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5UGR2
  • Mfr. Model # 5UGR2
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 92
  • Shipping Weight 0.14 lbs

Product Details

Female Disconnect, Insulation Type Nylon, Colour Code Blue, Wire Range 16 to 14 AWG, Tab Size 0.187 x 0.020 In., Barrel Inside Dia. 0.09, Max. Temp. 221 Degrees F, Max. Voltage 300V, Overall Length 0.78 In., Seam Butted, Connection Material Brass, Standar

Technical Specs

  • ItemFemale Disconnect
  • Contact FinishTin
  • Disconnect StyleTab
  • Insulation CoveragePartial Coverage
  • Insulation TypeNylon
  • Maximum Voltage300V
  • Minimum Wire Size16 AWG
  • Seam StyleButted
  • Tab Thickness0.02 in
  • Terminal TypeSocket
  • UL 94 Flammability RatingV-2
  • Barrel SizeStandard
  • Connection OrientationStraight
  • Strip Length1/4 in
  • Barrel Inside Diameter 0.091 in
  • Contact Material Brass
  • Insulation Colour Blue
  • Insulation Material Nylon
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 14 AWG
  • Overall Length 0.787 in
  • Standards UL/cUL Listed
  • Tab Width 0,187 po
  • Termination Style Crimp
  • Barrel Outside Diameter 0.177 in
  • Barrel Style Crimp
  • Current 15 A
  • RoHS Compliant Yes
  • Country of Origin Taiwan (subject to change)
