BLIND RIVET, 2.174 IN L, ¼ IN DIA, INCH, 2 11/64 IN OVERALL L, 13/16 IN BODY L, 100 PK
BLIND RIVET, 2.174 IN L, ¼ IN DIA, INCH, 2 11/64 IN OVERALL L, 13/16 IN BODY L, 100 PK
APPROVED VENDOR
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
- Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
- Zoom In: Double click on image.
- Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Product Details

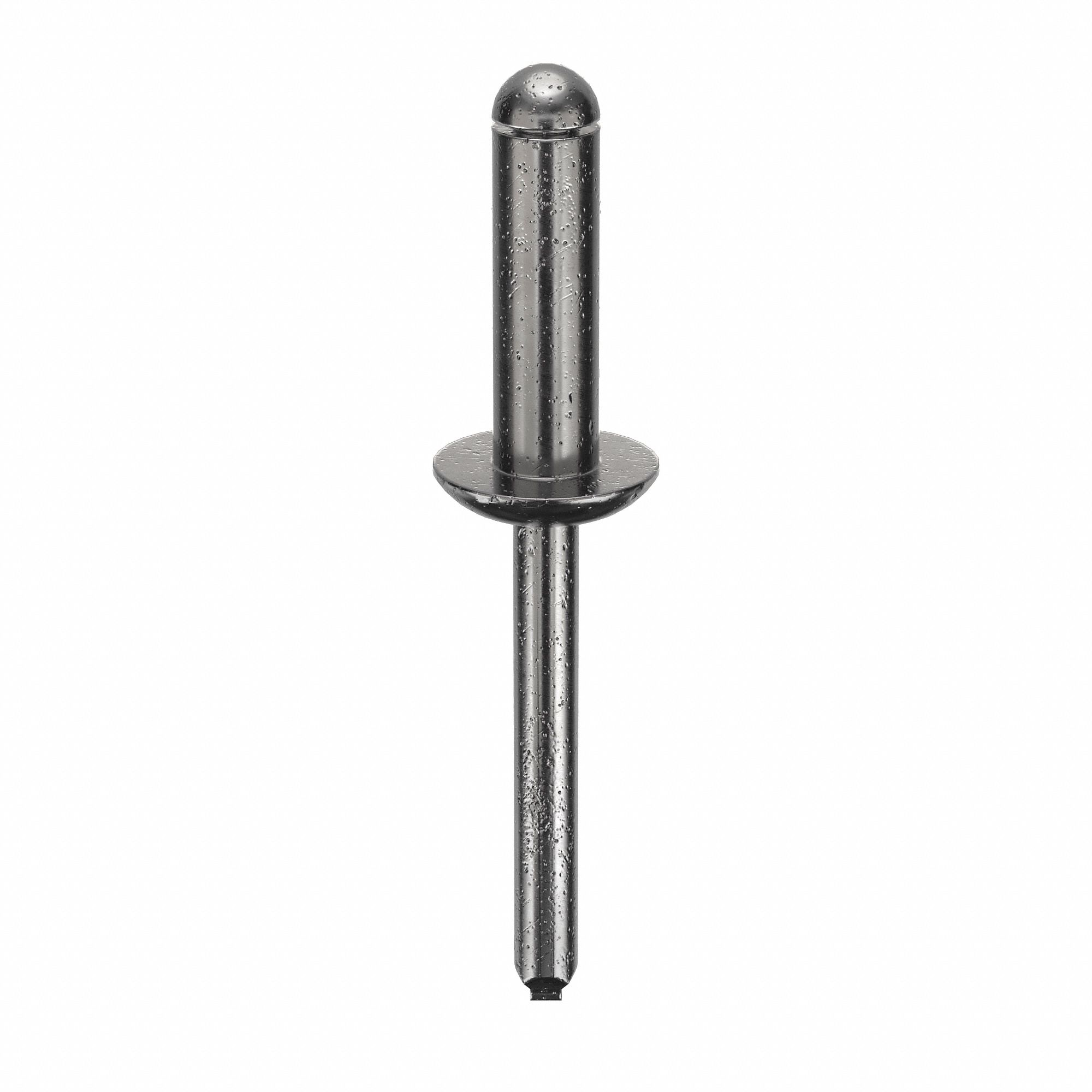

This blind rivet is made of IFI-134-30 steel and has a bright (uncoated) finish. Plus, it is grey and meets the standards for IFI-134.
Technical Specs
- ItemBlind Rivet
- Overall Length2 11/64 in
- Shank Diameter0.25 in
- Body MaterialSteel
- Head TypeDome
- Head Angle90 Degrees
- Tensile Strength1,839 lb
- Minimum Material Thickness11/32 in
- Material Grade/ClassIFI-134-30
- ColourGrey
- StandardsIFI-134
- Head Diameter Tolerance+/-0.025 in
- Blind Rivet TypeStructural
- System of Measurement Inch
- Body Length 13/16 in
- Product Type Blind Rivet
- Finish Bright (Uncoated)
- Head Diameter 17/32 in
- Shear Strength 2,243 lb
- Maximum Hole Diameter 0.276 in
- Maximum Material Thickness 5/8 in
- Mandrel Material Steel
- Minimum Hole Diameter 0.261 in
- Drill Size G
- Rivet Number 810
- Body Length Tolerance -0.004 in/+0.020 in
- Country of Origin Varies
(subject to change)
