Product Details

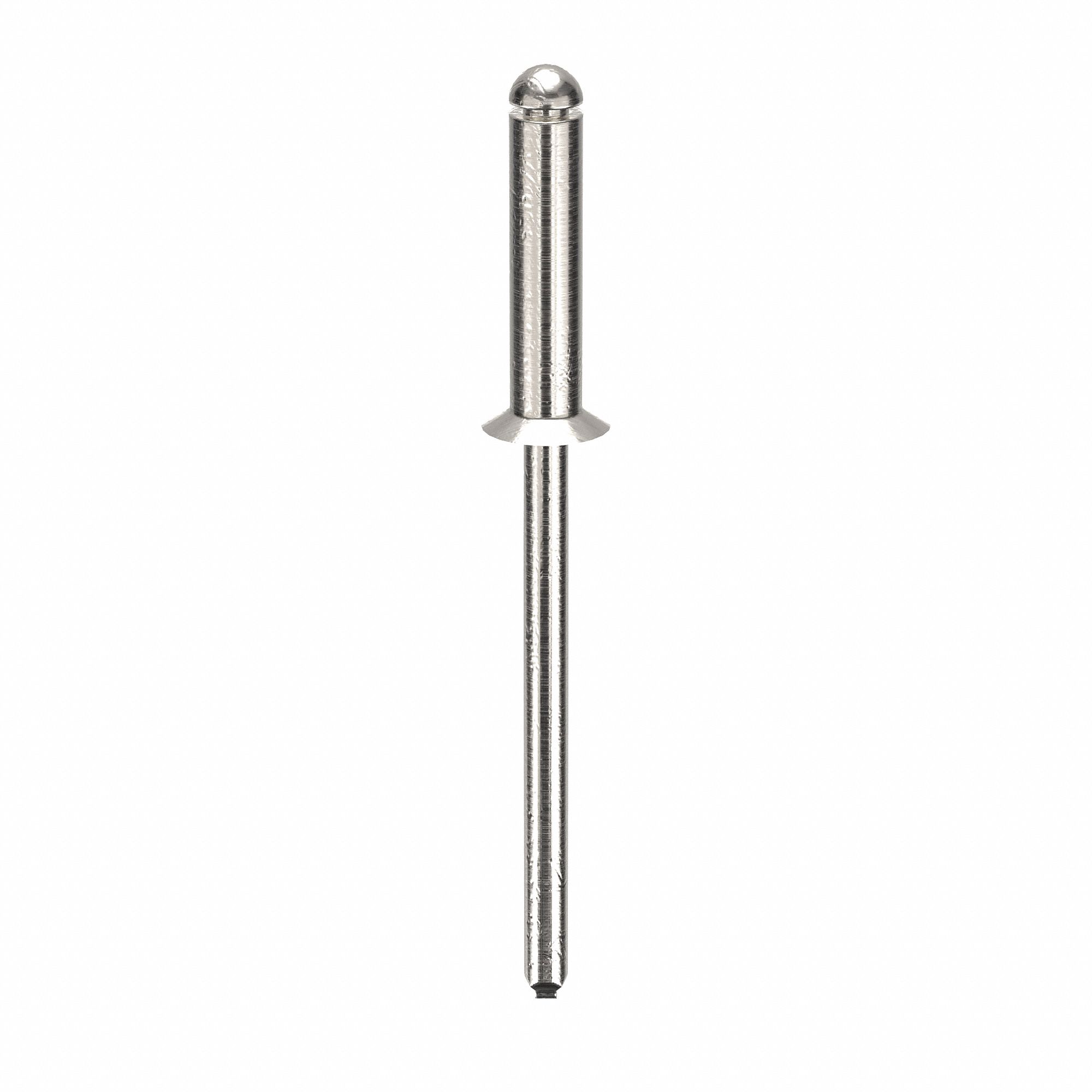

This blind rivet is made of IFI-116-19 aluminum and has a bright (uncoated) finish. Plus, it is grey and meets the standards for IFI-116.
Technical Specs
- ItemBlind Rivet
- Overall Length1 39/64 in
- Shank Diameter0.125 in
- Body MaterialAluminum
- Head TypeCountersunk
- Head Angle120 Degrees
- Tensile Strength224 lb
- Minimum Material Thickness3/16 in
- Material Grade/ClassIFI-116-19
- ColourGrey
- StandardsIFI-116
- Head Diameter Tolerance+/-0.012 in
- Blind Rivet TypeOpen End
- System of Measurement Inch
- Body Length 33/64 in
- Product Type Blind Rivet
- Finish Bright (Uncoated)
- Head Diameter 7/32 in
- Shear Strength 157 lb
- Maximum Hole Diameter 0.133 in
- Maximum Material Thickness 3/8 in
- Mandrel Material Steel
- Minimum Hole Diameter 0.129 in
- Drill Size #30
- Rivet Number 44
- Body Length Tolerance -0.004 in/+0.020 in
- Country of Origin Varies
(subject to change)
