AIR HOIST, HOOK MOUNT, LD CAP 0.25 TON, 10 FT LIFT/6 FT PUSH BUTTON, 25 FPM, YELLOW
AIR HOIST, HOOK MOUNT, LD CAP 0.25 TON, 10 FT LIFT/6 FT PUSH BUTTON, 25 FPM, YELLOW
KITO
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
Zoom In: Double click on image.
Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Product Details

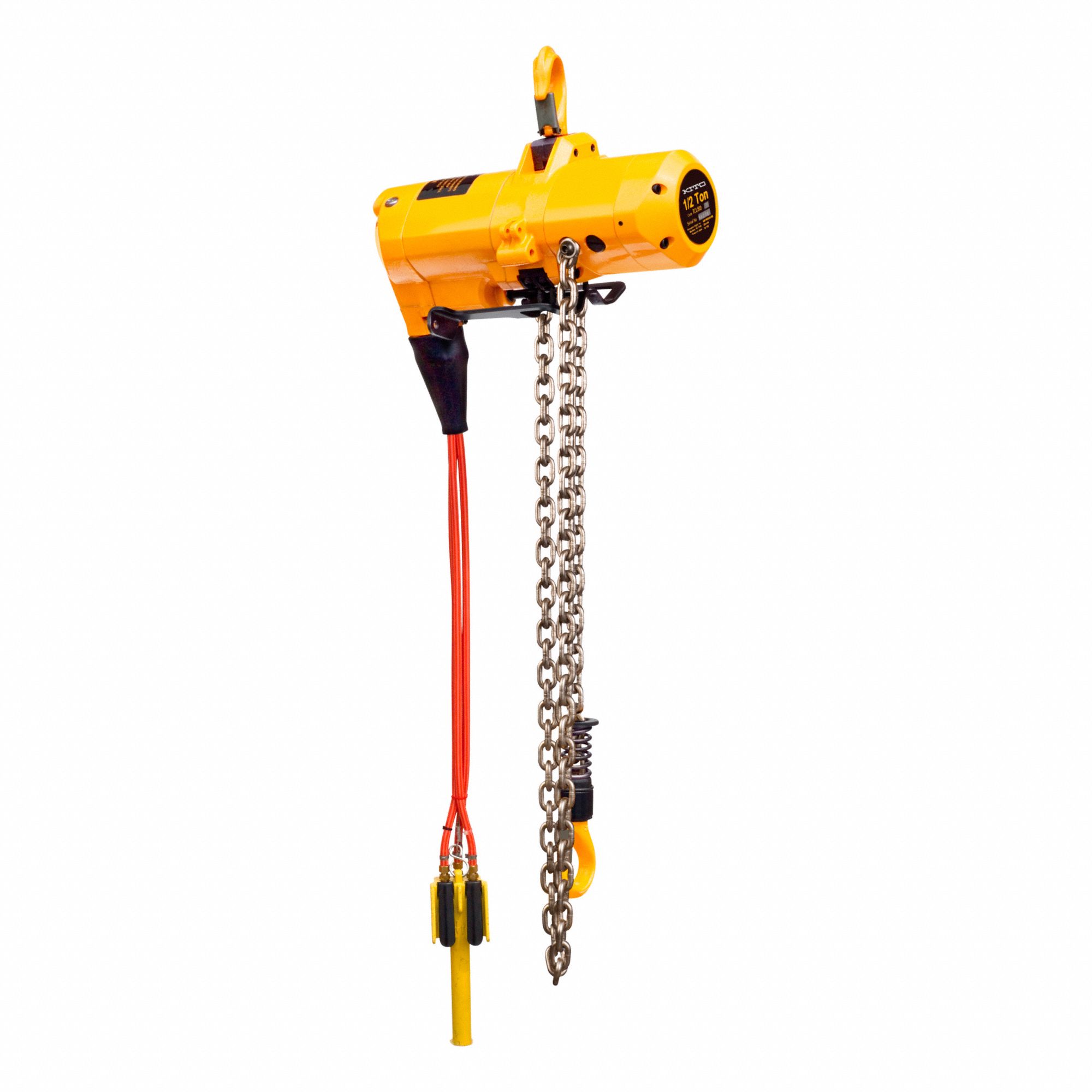

This air hoist features a 10-foot lift, a six-foot push button hose, and a lift speed of 25 feet per minute. This yellow hook-mounted hoist has a 0.25-ton load capacity and includes a built-in load limiter.
Technical Specs
Item Air Hoist Maximum Lifting Capacity 1/4 ton Controls Pendent Maximum Air Pressure 90 psi Maximum Air Consumption 90 cfm Body Length 287 mm Body Width 101 mm Brake Type Self-Adjusting Brake Chain Length 10 ft Included Components Air Filter & Lubricator Lifting Hook Type Swivel Hook Lifting Hook Opening Width 8/9 in Minimum Air Pressure 60 psi Overload Protection Included Yes Body Finish Yellow paint Mfr. Warranty Length 1 yr Standards ASME B30.16 Minimum Lift Speed 27 ft/min
Mount Type Hook Air Inlet Type NPT Headroom 12 in Maximum Lifting Length 10 ft Air Inlet Size 3/4 in Body Material Cast Iron Includes Brake Yes Chain Grade Grade 80 Chain Material Steel Colour Yellow Lifting Hook Material Carbon Steel Minimum Air Consumption 30 cfm Number of Load Chains 1 Sound Level 80.5 dBA Chain Finish Nickel Plated Resistance Properties Corrosion-Resistance Chain Maximum Lift Speed 55 ft/min Country of Origin Japan
(subject to change)
