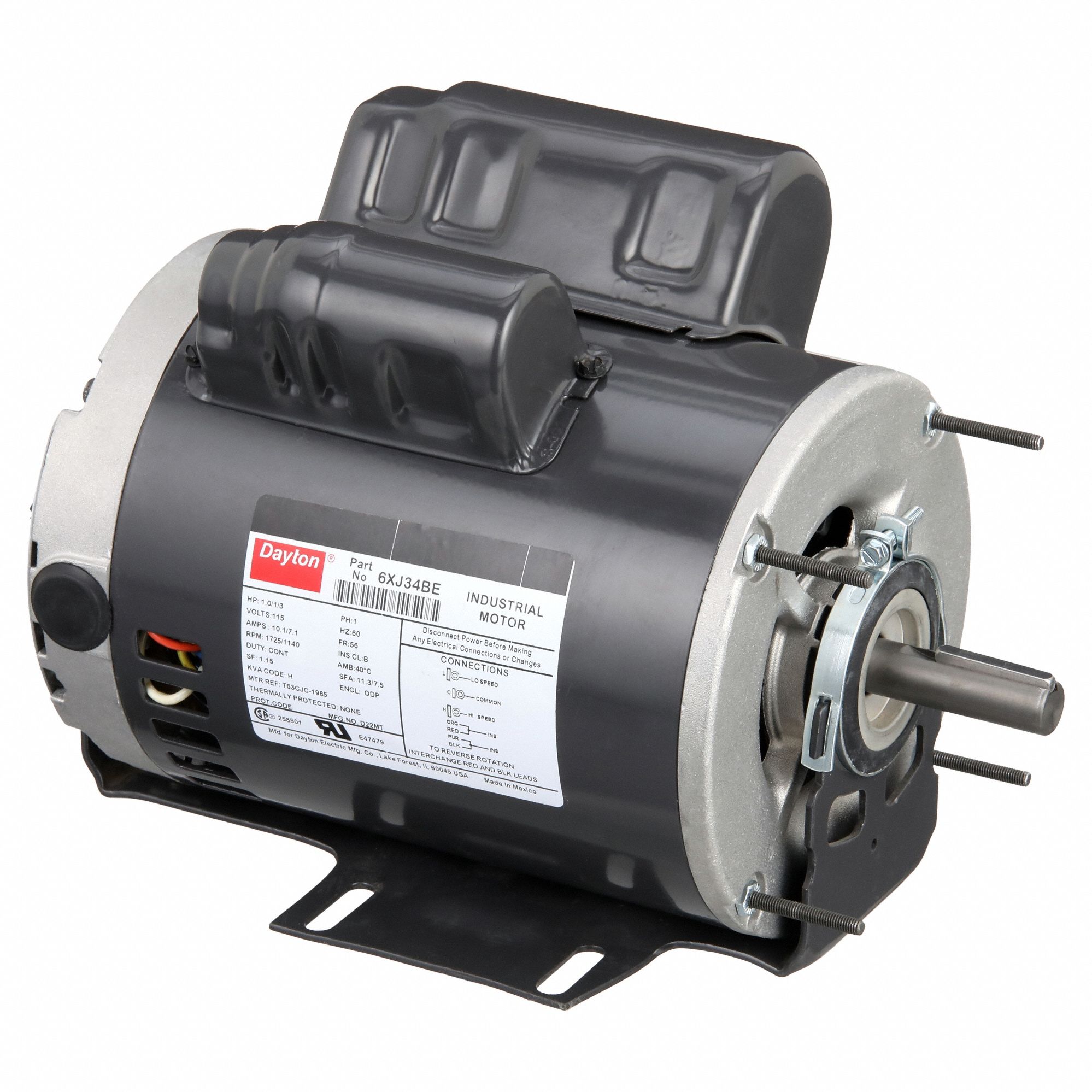

GENERAL PURPOSE MOTOR, OPEN DRIPPROOF, CRADLE BASE MOUNT, 1/1/3 HP, 1,725/1,140 NAMEPLATE RPM

GENERAL PURPOSE MOTOR, OPEN DRIPPROOF, CRADLE BASE MOUNT, 1/1/3 HP, 1,725/1,140 NAMEPLATE RPM

DAYTON

GENERAL PURPOSE MOTOR, OPEN DRIPPROOF, CRADLE BASE MOUNT, 1/1/3 HP, 1,725/1,140 NAMEPLATE RPM close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
GENERAL PURPOSE MOTOR, OPEN DRIPPROOF, CRADLE BASE MOUNT, 1/1/3 HP, 1,725/1,140 NAMEPLATE RPM

GENERAL PURPOSE MOTOR, OPEN DRIPPROOF, CRADLE BASE MOUNT, 1/1/3 HP, 1,725/1,140 NAMEPLATE RPM

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $654.27 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE6XJ34
  • Mfr. Model # 6XJ34
  • UNSPSC # 26101112
  • CATALOGUE PAGE # N/A
  • Shipping Weight 33.45 lbs

Product Details

General Purpose Motor,Capacitor-Start,Open Dripproof, 2-Speed,1, 1/3 HP,Nameplate RPM 1,725/1,140,Voltage 115,60 Hz,1 Phase,10.1/7.1 Full Load Amps,Number of Speeds 2,Mounting Cradle/Stud,Thermal Protection None,Insulation Class B,1.15 Service Factor,Ball

Technical Specs

  • ItemGeneral Purpose Motor
  • Nameplate RPM1,725/1,140 RPM
  • Frame56
  • Full Load Amps10.1/7.1 A
  • Motor BearingsBall
  • Motor DesignCapacitor-Start/Run
  • PhaseSingle
  • Motor ApplicationGeneral Purpose
  • Duty CycleContinuous
  • Motor Frame MaterialSteel
  • Ins. ClassB
  • Manufacturers Warranty Length1 yr
  • Overall Length11 13/16 in
  • Shaft Dia.5/8 in
  • StandardsCSA Certified (156060), UL Recognized (E47479)
  • HP 1 hp, 1/3 hp
  • Voltage 115V AC
  • Motor Mounting Type Cradle Base
  • Motor Shaft Rotation CW/CCW
  • Motor Service Factor 1.15
  • Motor Enclosure Design Open Drip Proof
  • No. of Speeds 2
  • Max. Ambient Temp. 40 Degrees C
  • Motor Efficiency Group High Efficiency (IE2)
  • Hz 60 Hz
  • Length Less Shaft 9 15/16 in
  • Nominal Efficiency 74.40%
  • Motor Shaft Design Keyed
  • Shaft Length 1 7/8 in
  • Country of Origin Mexico (subject to change)
