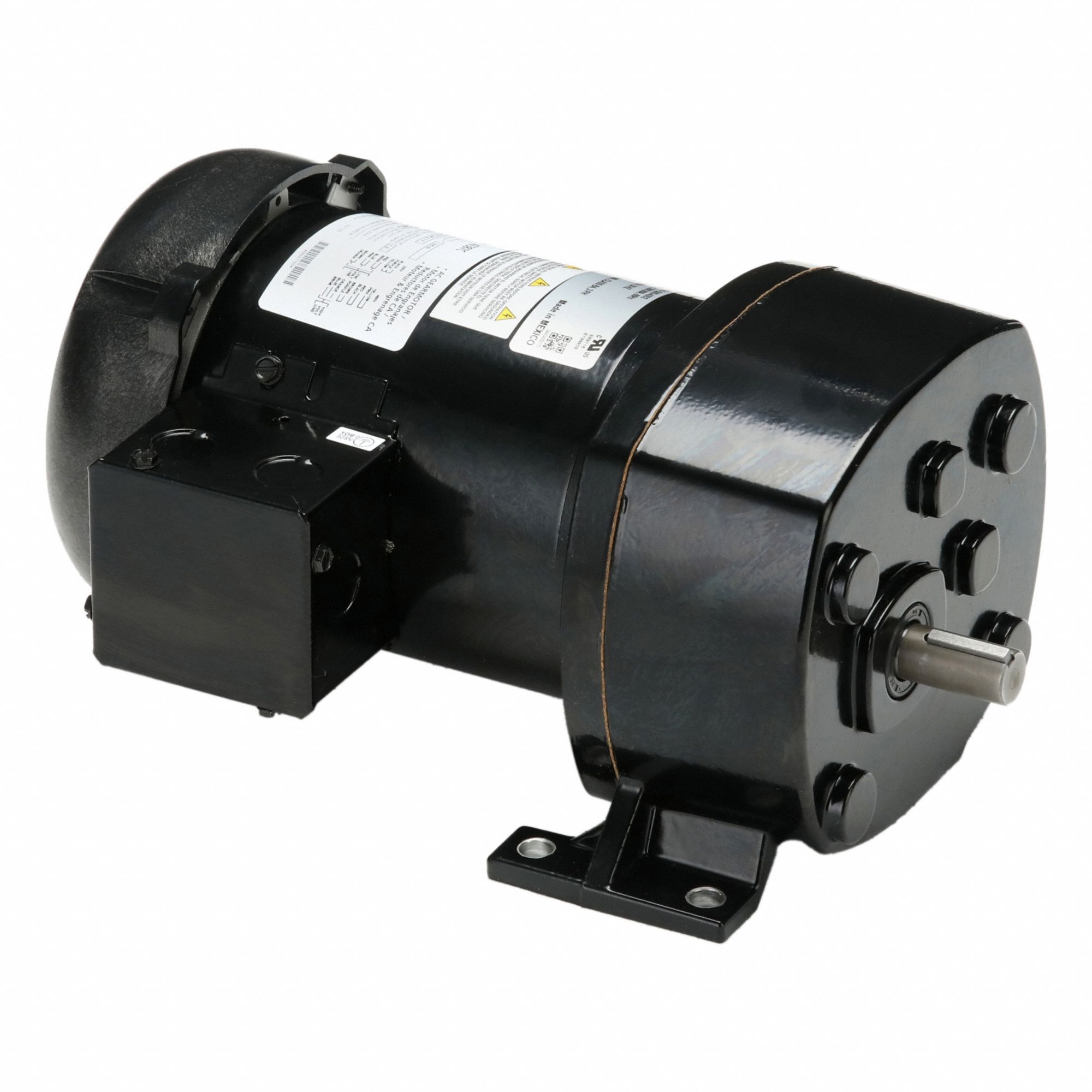

AC GEARMOTOR,TEFC,90RPM,230/460 V AC

AC GEARMOTOR,TEFC,90RPM,230/460 V AC

DAYTON

AC GEARMOTOR,TEFC,90RPM,230/460 V AC close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
AC GEARMOTOR,TEFC,90RPM,230/460 V AC

AC GEARMOTOR,TEFC,90RPM,230/460 V AC

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $1,531.51 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG4Z387
  • Mfr. Model # 4Z387
  • UNSPSC # 20101617
  • CATALOGUE PAGE # 31
  • Shipping Weight 24.0 lbs

Technical Specs

  • ItemAC Gearmotor
  • Motor Type3-Phase
  • Nameplate Speed90 RPM
  • Overhung Load Capacity325 lb
  • Output Shaft Height3 in
  • Operating Voltage230/460V AC
  • Gear Ratio19:1
  • Shaft OrientationParallel
  • Motor Duty ClassContinuous
  • Bearing TypeBall on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
  • Full Load Current1.22/.61 A
  • Gear TypeHelical (1st Stage), Spur (Subsequent Stages)
  • Housing Material FinishPainted
  • Keyway Depth1/8 in
  • Keyway Width3/16 in
  • LubricationPermanent Heavy Duty Gear Oil
  • Mount Hole Center-to-Center Length2.5 in
  • Mount TypeAny Position
  • Output Shaft Length1 1/2 in
  • Overall Width8.13 in
  • Seal TypeLip Type on Input and Output Shaft
  • Thermal ProtectionNone
  • Number of Output Shafts 1
  • Motor Enclosure Totally Enclosed Fan-Cooled
  • Maximum Torque 214 in-lb
  • Rotation CW/CCW
  • Mounting Orientation Any Angle
  • Inverter Rated No
  • Brake Type None
  • Motor Insulation Class B
  • AGMA Gear Class Class 9
  • Frequency 60 Hz
  • Gear Material Hardened Steel
  • Housing Material Die Cast Aluminum
  • Input Horsepower 0.33 hp
  • Keyway Type Square
  • Length Less Shaft 12.1 in
  • Maximum Ambient Temperature 104 Degrees F
  • Mount Hole Centre-to-Centre Width 7.13 in
  • Output Shaft Diameter 3/4 in
  • Overall Height 6.63 in
  • Phase Three
  • Standards C-UL Recognized, UL Recognized
  • Inverter Rating 19:1
  • Country of Origin United States (subject to change)
