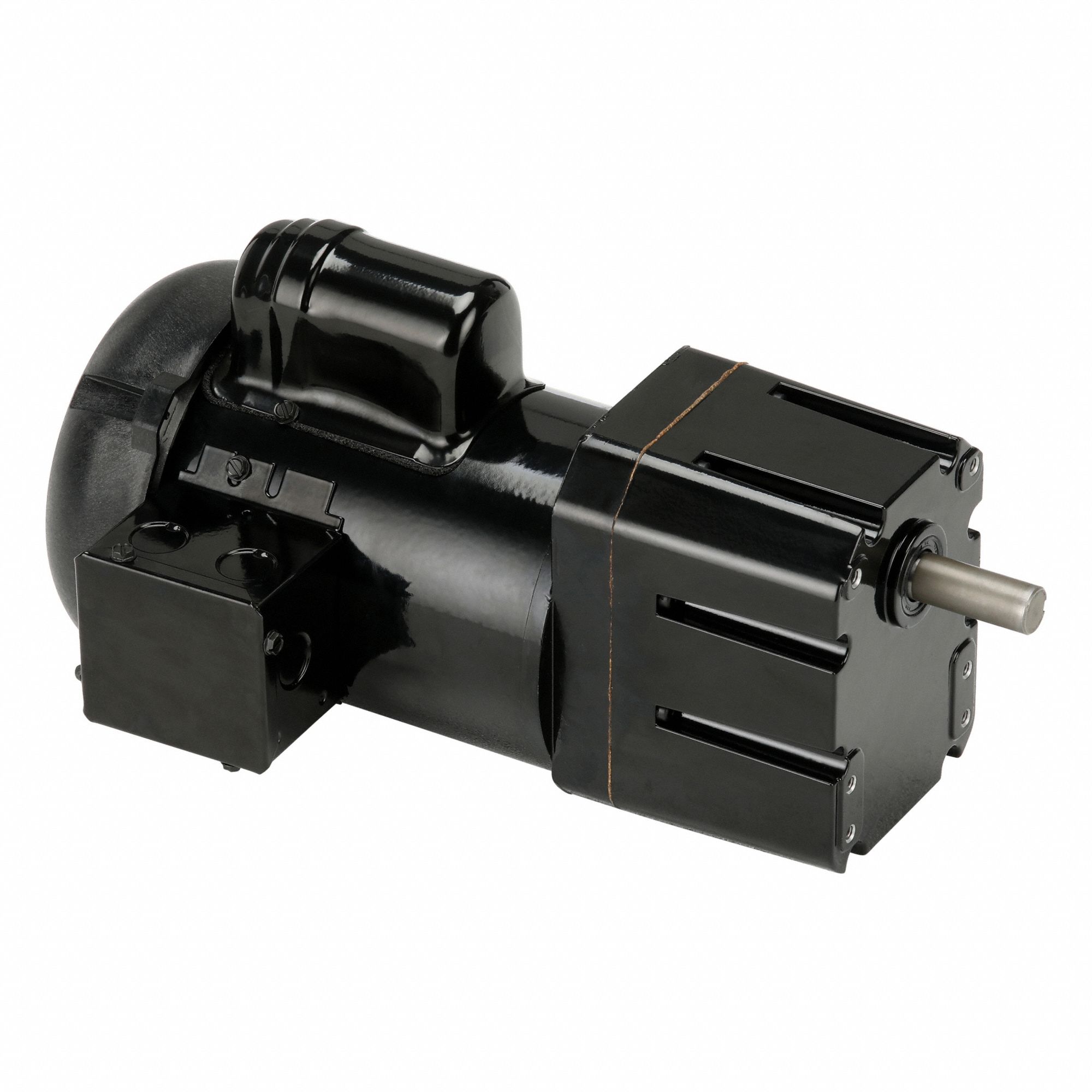

AC GEARMOTOR, PARALLEL, SINGLE OUTPUT SHAFT, PSC, TEFC, 81 RPM, 345 IN-LB MAXIMUM TORQUE, CW/CCW

AC GEARMOTOR, PARALLEL, SINGLE OUTPUT SHAFT, PSC, TEFC, 81 RPM, 345 IN-LB MAXIMUM TORQUE, CW/CCW

DAYTON

AC GEARMOTOR, PARALLEL, SINGLE OUTPUT SHAFT, PSC, TEFC, 81 RPM, 345 IN-LB MAXIMUM TORQUE, CW/CCW close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
AC GEARMOTOR, PARALLEL, SINGLE OUTPUT SHAFT, PSC, TEFC, 81 RPM, 345 IN-LB MAXIMUM TORQUE, CW/CCW

AC GEARMOTOR, PARALLEL, SINGLE OUTPUT SHAFT, PSC, TEFC, 81 RPM, 345 IN-LB MAXIMUM TORQUE, CW/CCW

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $1,866.04 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # DTN2H606
  • Mfr. Model # 016-653-0020
  • UNSPSC # 20101617
  • CATALOGUE PAGE # N/A
  • Shipping Weight 26.0 lbs

Technical Specs

  • ItemAC Gearmotor
  • Motor TypePermanent Split Capacitor
  • Nameplate Speed81 RPM
  • Overhung Load Capacity550 lb
  • Mounting OrientationAny Angle
  • Inverter RatedNot Inverter Rated
  • Brake TypeNone
  • Includes CapacitorCapacitor Included
  • Bearing TypeBall on Motor, Needle Throughout with Thrust Balls on Case
  • Frequency50 Hz, 60 Hz
  • Gear MaterialHardened Steel
  • Housing MaterialDie Cast Aluminum
  • Keyway Depth3/16 in
  • Length Less Shaft16 in
  • Maximum Ambient Temperature104 Degrees F
  • Mount TypeAny Position
  • Output Shaft Length1 7/8 in
  • Overall Width4.78 in
  • Seal TypeSpring Loaded Lip Type on Input and Output Shaft
  • Thermal ProtectionNone
  • Number of Output Shafts 1
  • Motor Enclosure Totally Enclosed Fan-Cooled
  • Maximum Torque 345 in-lb
  • Rotation CW/CCW
  • Operating Voltage 115/230V AC
  • Gear Ratio 20:1
  • Shaft Orientation Parallel
  • AGMA Gear Class Class 9
  • Capacitor Required Capacitor Required
  • Full Load Current 5.2/2.8 A
  • Gear Type Helical (1st Stage), Spur (Subsequent Stages)
  • Input Horsepower 0.5 hp
  • Keyway Width 1/8 in
  • Lubrication Permanent Heavy Fluid Gear Oil
  • Mount Hole Centre-to-Centre Width 3.63 in
  • Output Shaft Diameter 3/4 in
  • Overall Height 6.25 in
  • Phase Single
  • Standards CSA Certified, UL Recognized
  • Inverter Rating 20:1
  • Country of Origin United States (subject to change)
