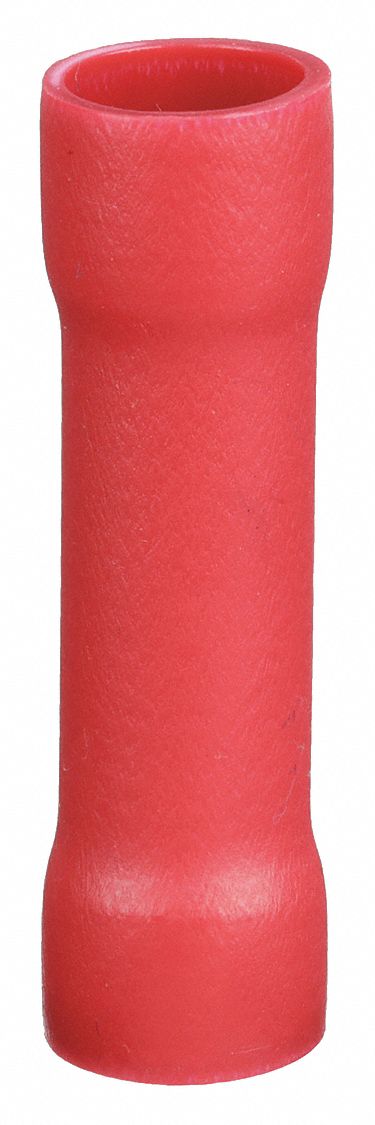

SPLICE CONNECTOR, 8 AWG WIRE SIZE RANGE, UL/CUL LISTED, CRIMP TERMINATION, VINYL, 25 PK

SPLICE CONNECTOR, 8 AWG WIRE SIZE RANGE, UL/CUL LISTED, CRIMP TERMINATION, VINYL, 25 PK

POWER FIRST

SPLICE CONNECTOR, 8 AWG WIRE SIZE RANGE, UL/CUL LISTED, CRIMP TERMINATION, VINYL, 25 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPLICE CONNECTOR, 8 AWG WIRE SIZE RANGE, UL/CUL LISTED, CRIMP TERMINATION, VINYL, 25 PK

SPLICE CONNECTOR, 8 AWG WIRE SIZE RANGE, UL/CUL LISTED, CRIMP TERMINATION, VINYL, 25 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $20.34 / pkg. of 25

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5WHG8
  • Mfr. Model # 5WHG8
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 93
  • Shipping Weight 0.12 lbs

Product Details

Butt Splice Connector, Insulation Type Vinyl, Wire Range 8 AWG, Max. Temp. 75C, Barrel Inside Dia. 0.177 In., Max. Voltage 600V, Overall Length 1.398 In., Connection Material Copper, Standards UL /CUL/ROHS

Technical Specs

  • ItemSplice Connector
  • Insulation MaterialVinyl
  • Maximum Operating Temperature167 Degrees F
  • Minimum Wire Size8 AWG
  • StandardsUL/cUL Listed
  • Contact FinishTin
  • UL 94 Flammability RatingV-0
  • RoHS CompliantYes
  • Barrel Inside Diameter0.177 in
  • Body MaterialCopper
  • For Wire TypeStranded
  • Number of Splices1
  • Connection Type Crimp
  • Insulation Colour Red
  • Maximum Voltage 600V
  • Maximum Wire Size 8 AWG
  • Termination Style Crimp
  • Contact Material Copper
  • Overall Length 1.4 in
  • Seam Style Seamless
  • Body Finish Tin Plated
  • For Maximum Wire Insulation Diameter 0.129 in
  • Insulation Type Vinyl
  • Strip Length 3/8 in
  • Country of Origin Taiwan (subject to change)
