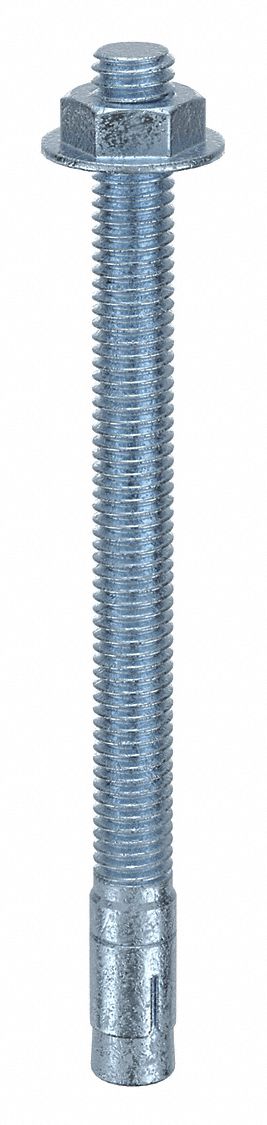

WEDGE ANCHOR, 5 IN OVERALL L, ⅜ IN DIA, ⅜"-16 THREAD SIZE, 4 IN THREAD L, 50 PK

WEDGE ANCHOR, 5 IN OVERALL L, ⅜ IN DIA, ⅜"-16 THREAD SIZE, 4 IN THREAD L, 50 PK

MKT FASTENING

WEDGE ANCHOR, 5 IN OVERALL L, ⅜ IN DIA, ⅜"-16 THREAD SIZE, 4 IN THREAD L, 50 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WEDGE ANCHOR, 5 IN OVERALL L, ⅜ IN DIA, ⅜"-16 THREAD SIZE, 4 IN THREAD L, 50 PK

WEDGE ANCHOR, 5 IN OVERALL L, ⅜ IN DIA, ⅜"-16 THREAD SIZE, 4 IN THREAD L, 50 PK

MKT FASTENING

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $262.92 / pkg. of 50

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG4KHU2
  • Mfr. Model # 2538500
  • UNSPSC # 31162102
  • CATALOGUE PAGE # 1150
  • Shipping Weight 7.44 lbs

Product Details

This wedge anchor is made of Grade 5 grey and has a zinc yellow finish. Plus, it includes a nut and washer. It meets the standards for FM Approved, ICC ESR-3782 C-STL, ZP 1/4 in SS, ROHS compliant Except for Grade 5, UL Listed industry standards. This wedge anchor is designed for use with concrete.

Technical Specs

  • ItemWedge Anchor
  • Anchor Diameter3/8 in
  • Overall Length5 in
  • MaterialSteel
  • FinishZinc Yellow
  • Drill Bit Size3/8 in
  • Minimum Material Thickness4 in
  • Ultimate Tension Strength (4,000 psi Concrete)2,367 lb
  • Washer Outside Diameter0.812 in
  • Seismic ApprovedNo
  • ICC Approved for Un-Cracked ConcreteYes
  • Industry StandardsFM Approved, ICC ESR-3782 C-STL, ZP 1/4 in SS, ROHS Compliant Except for Grade 5, UL Listed
  • Maximum Material Thickness3 1/2 in
  • Maximum Ultimate Tension Strength2,367 lb
  • SeriesStud+
  • System of Measurement Inch
  • Thread Size 3/8"-16
  • Thread Length 4 in
  • Material Grade/Class Grade 5
  • Compatible Material Concrete
  • Minimum Installation Depth 1 5/8 in
  • Ultimate Shear Strength (4,000 psi Concrete) 3,151 lb
  • Nut Width 0.5625 in
  • Wedge Anchor Type Wedge Anchor
  • ICC Approved for Cracked Concrete No
  • Includes Nut, Washer
  • Maximum Installation Torque 30 ft-lb
  • Maximum Ultimate Shear Strength 3,151 lb
  • Minimum Installation Torque 15 ft-lb
  • Country of Origin United States (subject to change)
