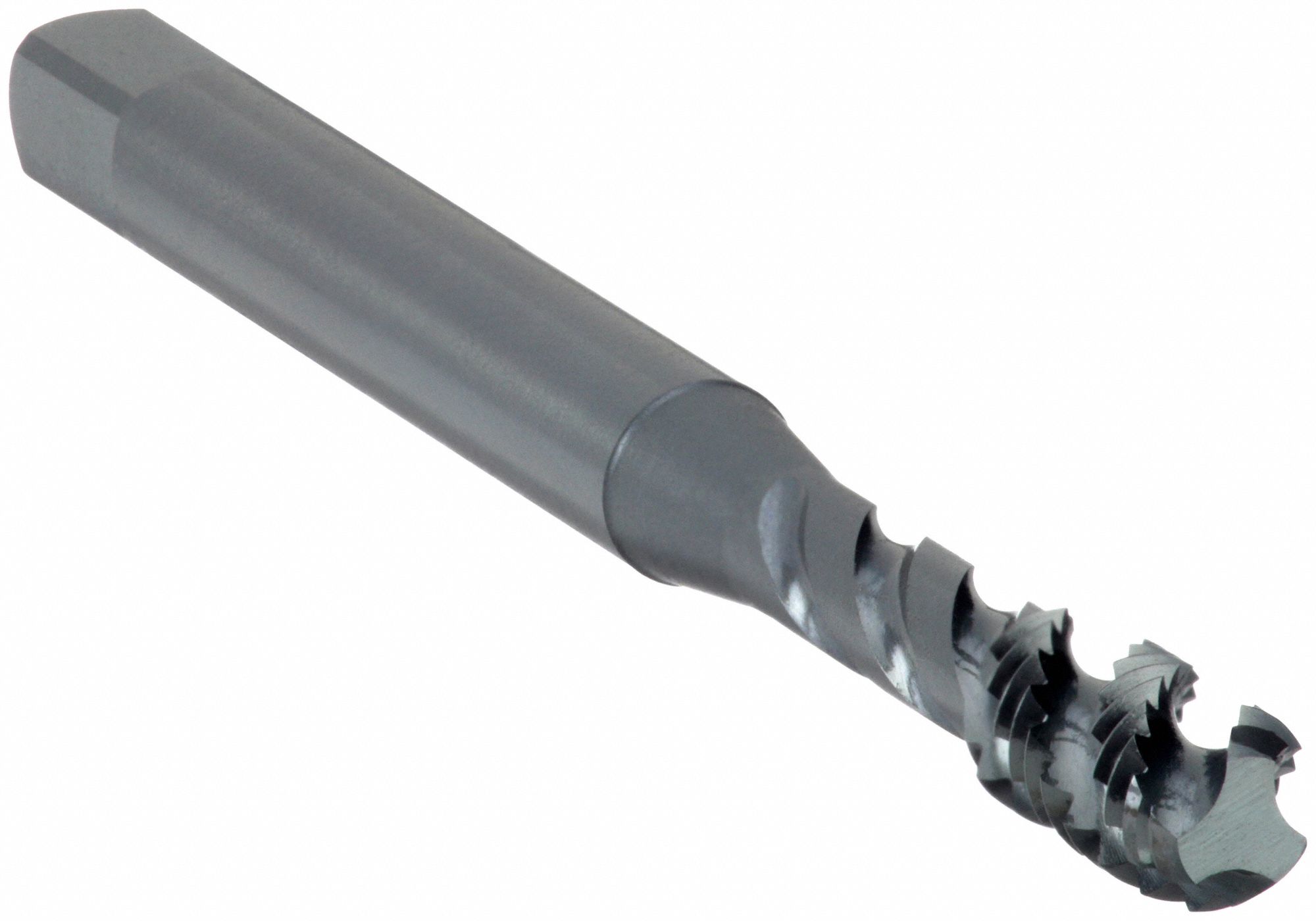

SPIRAL FLUTE TAP, ¼"-20 THREAD, ⅜ IN THREAD L, 2½ IN LENGTH, BOTTOMING, H3

SPIRAL FLUTE TAP, ¼"-20 THREAD, ⅜ IN THREAD L, 2½ IN LENGTH, BOTTOMING, H3

OSG

SPIRAL FLUTE TAP, ¼"-20 THREAD, ⅜ IN THREAD L, 2½ IN LENGTH, BOTTOMING, H3 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPIRAL FLUTE TAP, ¼"-20 THREAD, ⅜ IN THREAD L, 2½ IN LENGTH, BOTTOMING, H3

SPIRAL FLUTE TAP, ¼"-20 THREAD, ⅜ IN THREAD L, 2½ IN LENGTH, BOTTOMING, H3

OSG

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $45.18 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # OSG0137101
  • Mfr. Model # 0137101
  • UNSPSC # 23241615
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.03 lbs

Product Details

These high-performance spiral-flute taps provide better precision and accuracy than general purpose spiral-flute taps when used for threading holes in steel and/or stainless steel. High-performance spiral-flute taps are harder and more wear-resistant than general purpose spiral-flute taps.

Technical Specs

  • ItemSpiral Flute Tap
  • Thread StandardUNC
  • Tap FinishBlack Oxide
  • Overall Length2 1/2 in
  • Thread LimitH3
  • Number of Flutes3
  • Primary Material ApplicationStainless Steel, Steel
  • Extended NeckYes
  • Measurement SystemFractional Inch
  • Shank Length1 1/2 in
  • Square Size0.1910 in
  • Threads per Inch20 TPI
  • Shank Dia.1/4 in
  • Tap GroupingTap
  • Thread Size 1/4"-20
  • Tap Material High Speed Steel
  • Thread Length 3/8 in
  • 75% Thread Drill Size #7
  • Thread Direction Right Hand
  • Tap Shank Standard ANSI
  • Coolant Fed Non-Coolant Through
  • Helix Angle 45 Degrees
  • Primary Material Application ISO Code M, P1
  • Shank Type - Machining Straight
  • Tap Chamfer Bottoming
  • Series 303
  • Standards ANSI
  • Tap Style Spiral Flute
  • Country of Origin Brazil (subject to change)
