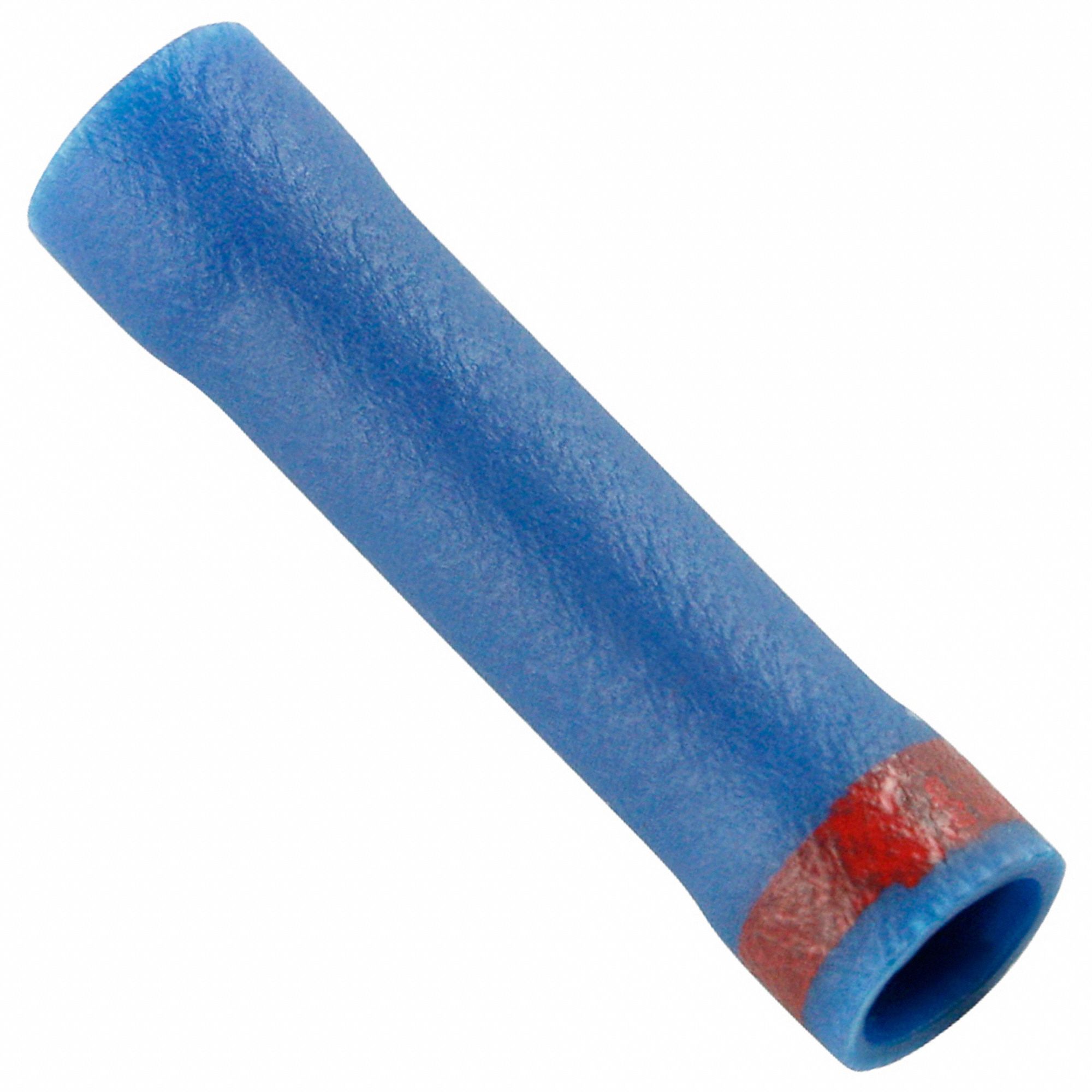

SPLICE CONNECTOR, 14 AWG/16 AWG/18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, VINYL, TIN, 100 PK

SPLICE CONNECTOR, 14 AWG/16 AWG/18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, VINYL, TIN, 100 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $78.10 / pkg. of 100

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5UGU8
  • Mfr. Model # 5UGU8
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 93
  • Shipping Weight 0.33 lbs

Product Details

This splice connector has an operating temperature of 167 Degrees F. It measures 0.97 inch L. This splice connector meets the standards for UL/cUL. It has a tin-plated finish, and has 22 AWG minimum wire size to 14 AWG maximum wire size.

Technical Specs

  • ItemSplice Connector
  • Insulation MaterialVinyl
  • Maximum Wire Size14 AWG
  • StandardsUL/cUL Listed
  • Barrel Inside Diameter0.091 in
  • Body FinishTin Plated
  • Compatible Installation Tool Model Number24C968
  • Connection TypeCrimp
  • Contact MaterialCopper
  • For Wire TypeStranded
  • Maximum Temperature167 Degrees F
  • Number of Splices1
  • Seam StyleSeamless
  • Strip Length1/4 in
  • RoHS CompliantYes
  • Insulation Colour Blue
  • Insulation Type Vinyl
  • Minimum Wire Size 22 AWG
  • Termination Style Crimp
  • Barrel Outside Diameter 0.177 in
  • Body Material Copper
  • Compatible with Product Type Insulated Stranded Copper Cable
  • Contact Finish Tin
  • For Maximum Wire Insulation Diameter 0.064 in
  • Maximum Conductors 2
  • Maximum Voltage 600V
  • Overall Length 0.97 in
  • Special Features Changing Down
  • UL 94 Flammability Rating V-0
  • Country of Origin Taiwan (subject to change)
