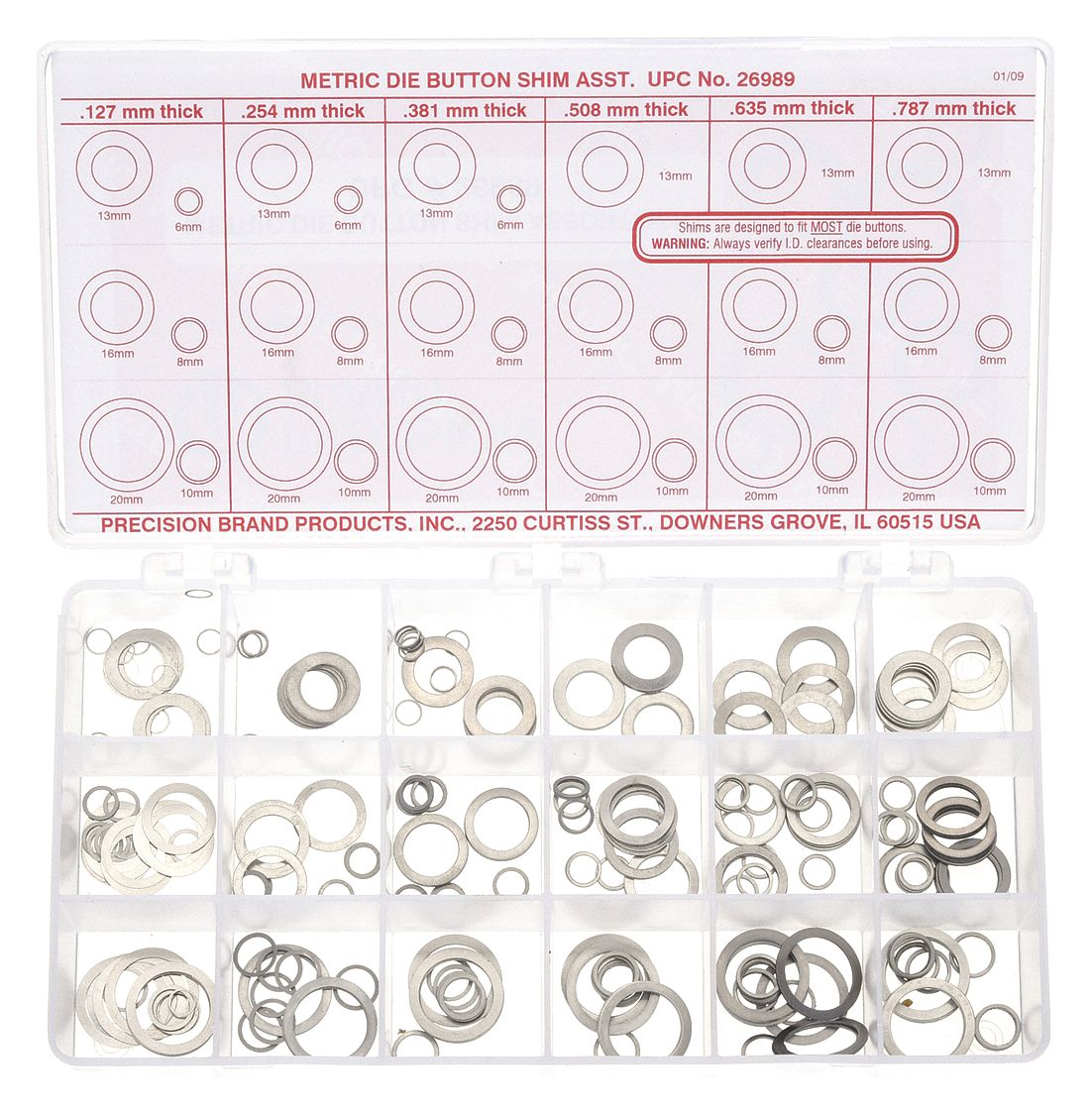

SHORTENING SHIM ASSORTMENT, METRIC, LENGTHENING SHIM, 6MM/8MM/10MM/12MM/16MM/20MM INSIDE DIA

SHORTENING SHIM ASSORTMENT, METRIC, LENGTHENING SHIM, 6MM/8MM/10MM/12MM/16MM/20MM INSIDE DIA

PRECISION BRAND

SHORTENING SHIM ASSORTMENT, METRIC, LENGTHENING SHIM, 6MM/8MM/10MM/12MM/16MM/20MM INSIDE DIA close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SHORTENING SHIM ASSORTMENT, METRIC, LENGTHENING SHIM, 6MM/8MM/10MM/12MM/16MM/20MM INSIDE DIA

SHORTENING SHIM ASSORTMENT, METRIC, LENGTHENING SHIM, 6MM/8MM/10MM/12MM/16MM/20MM INSIDE DIA

PRECISION BRAND

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $690.10 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG4NFH5
  • Mfr. Model # 26600
  • UNSPSC # 31163301
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.8 lbs

Product Details

This shortening shim assortment is made of 18-8 stainless steel and has a bright (uncoated) finish. Plus, it includes 10 x 10x15.73x0.125mm, 10 x 10x15.73x0.25mm, 10 x 10x15.73x0.4mm, 10 x 10x15.73x0.5mm, 10 x 10x15.73x0.65mm, 10 x 10x15.73x0.8mm, 10 x 12x17.73x0.125mm, 10 x 12x17.73x0.25mm, 10 x 12x17.73x0.4mm and more. It meets the standards for AISI-T302, ASTM-A-666, and SAE-30302 material quality. This arbor shim assortment fits screw sizes: 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm.

Technical Specs

  • ItemShortening Shim Assortment
  • Inside Diameter6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
  • Outside Diameter5.73 mm, 9.78 mm, 12.73 mm, 17.73 mm, 23.67 mm, 29.67 mm
  • Outside Diameter Tolerance+0.000/-0.254 mm
  • Thickness Tolerance+/-0.005 mm, +/-0.010 mm, +/-0.025 mm
  • MaterialStainless Steel
  • TemperFull Hard
  • Number of Sizes36
  • Made in North AmericaYes
  • ApplicationFits Screw Sizes: 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
  • Tensile Strength185,000 psi
  • System of Measurement Metric
  • Product Type Arbor Shim Assortment
  • Inside Diameter Tolerance +0.254/-0.000 mm
  • Thickness 0.125 mm, 0.25 mm, 0.4 mm, 0.5 mm, 0.65 mm, 0.8 mm
  • Round Shim Type Lengthening Shim
  • Finish Bright (Uncoated)
  • Number of Pieces 360
  • Material Grade/Class 18-8
  • Material Quality Standards AISI-T302, ASTM-A-666, SAE-30302
  • Rockwell Hardness C40 to C45
  • Includes (10) 10x15.73x0.125 mm, (10) 10x15.73x0.25 mm, (10) 10x15.73x0.4 mm, (10) 10x15.73x0.5 mm, (10) 10x15.73x0.65 mm, (10) 10x15.73x0.8 mm, (10) 12x17.73x0.125 mm, (10) 12x17.73x0.25 mm, (10) 12x17.73x0.4 mm, (10) 12x17.73x0.5 mm, (10) 12x17.73x0.65 mm, (10) 12x17.73x0.8 mm, (10) 16x23.67x0.125 mm, (10) 16x23.67x0.25 mm, (10) 16x23.67x0.4 mm, (10) 16x23.67x0.5 mm, (10) 16x23.67x0.65 mm, (10) 16x23.67x0.8 mm, (10) 20x29.67x0.125 mm, (10) 20x29.67x0.25 mm, (10) 20x29.67x0.4 mm, (10) 20x29.67x0.5 mm, (10) 20x29.67x0.65 mm, (10) 20x29.67x0.8 mm, (10) 6x9.78x0.125 mm, (10) 6x9.78x0.25 mm, (10) 6x9.78x0.4 mm, (10) 6x9.78x0.5 mm, (10) 6x9.78x0.65 mm, (10) 6x9.78x0.8 mm, (10) 8x12.73x0.125 mm, (10) 8x12.73x0.25 mm, (10) 8x12.73x0.4 mm, (10) 8x12.73x0.5 mm, (10) 8x12.73x0.65 mm, (10) 8x12.73x0.8 mm
  • Country of Origin United States (subject to change)
