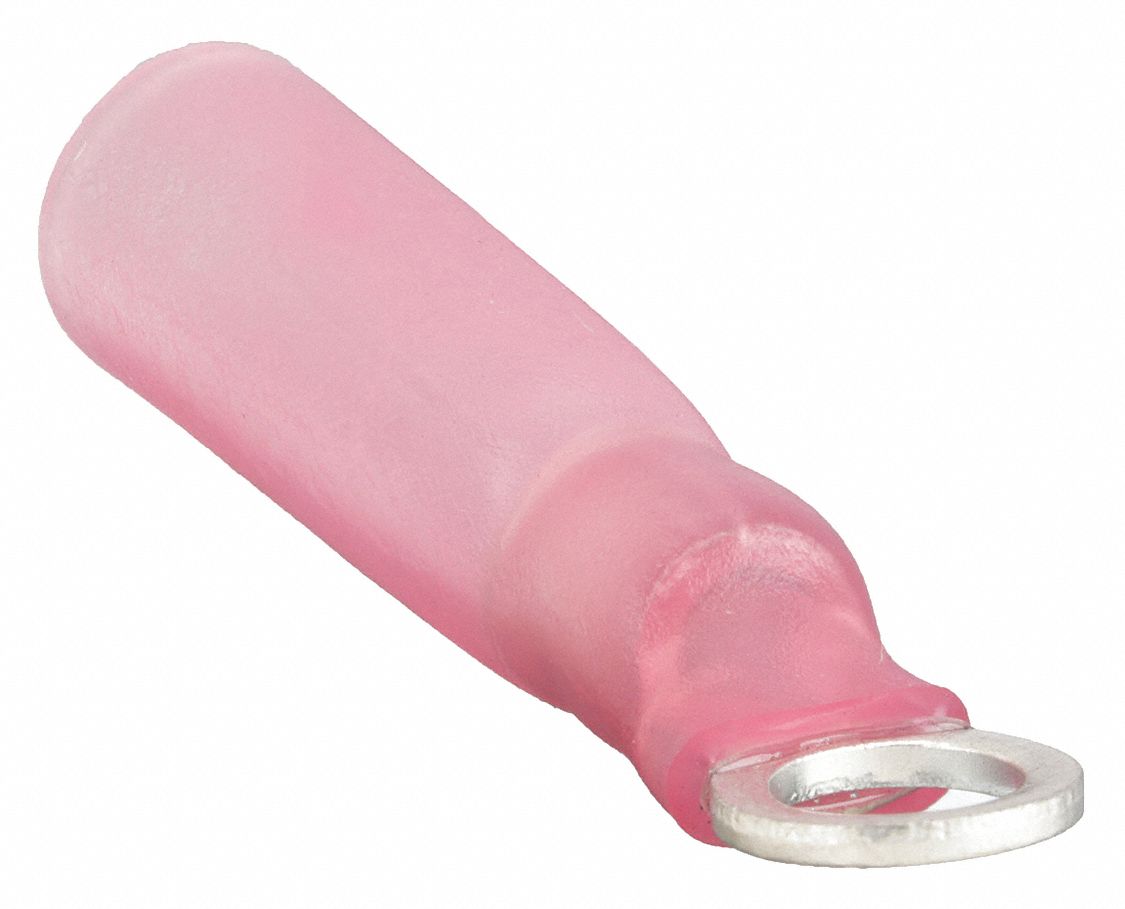

RING TERMINAL, HEAT SHRINK (POLYOLEFIN), RED, #6 STUD SIZE, 25 PK

RING TERMINAL, HEAT SHRINK (POLYOLEFIN), RED, #6 STUD SIZE, 25 PK

POWER FIRST

RING TERMINAL, HEAT SHRINK (POLYOLEFIN), RED, #6 STUD SIZE, 25 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
RING TERMINAL, HEAT SHRINK (POLYOLEFIN), RED, #6 STUD SIZE, 25 PK

RING TERMINAL, HEAT SHRINK (POLYOLEFIN), RED, #6 STUD SIZE, 25 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $11.71 / pkg. of 25

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5WHH9
  • Mfr. Model # 5WHH9
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 92
  • Shipping Weight 0.03 lbs

Product Details

Ring Terminal, Terminal Type Standard, Insulation Type Heat Shrink, Colour Code Red, Wire Range 22 to 16 AWG, Stud Size #6, Max. Temp. 221 Degrees F, Max. Voltage 600 V, Overall Length 0.984 In., Seam Brazed, Connection Material Copper, Standards UL/CUL/R

Technical Specs

  • ItemRing Terminal
  • Contact MaterialCopper
  • Insulation CoveragePartial Coverage
  • Insulation TypeHeat Shrink
  • Maximum Voltage600V
  • Minimum Wire Size22 AWG
  • StandardsUL/cUL Listed E96029
  • Terminal ShapeRing Terminal
  • UL 94 Flammability RatingHB
  • Barrel StyleHeat Shink Tubing Water Resistant
  • Connection OrientationStraight
  • Minimum Operating Temperature221 Degrees F
  • Special FeaturesHeat-Shrink Insulation Water Resistant
  • Termination StyleCrimp
  • RoHS CompliantYes
  • Contact Finish Tin
  • Insulation Colour Red
  • Insulation Material Polyolefin
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 16 AWG
  • Seam Style Brazed
  • Stud Size #6
  • Tongue Width 0.22 in
  • Barrel Size Standard
  • Compatible with Product Type Insulated Stranded Copper Cable
  • Hole Diameter 0.15 in
  • Overall Length 0.98 in
  • Strip Length 1/4 in
  • Tongue Thickness 0.03 in
  • Country of Origin Taiwan (subject to change)
