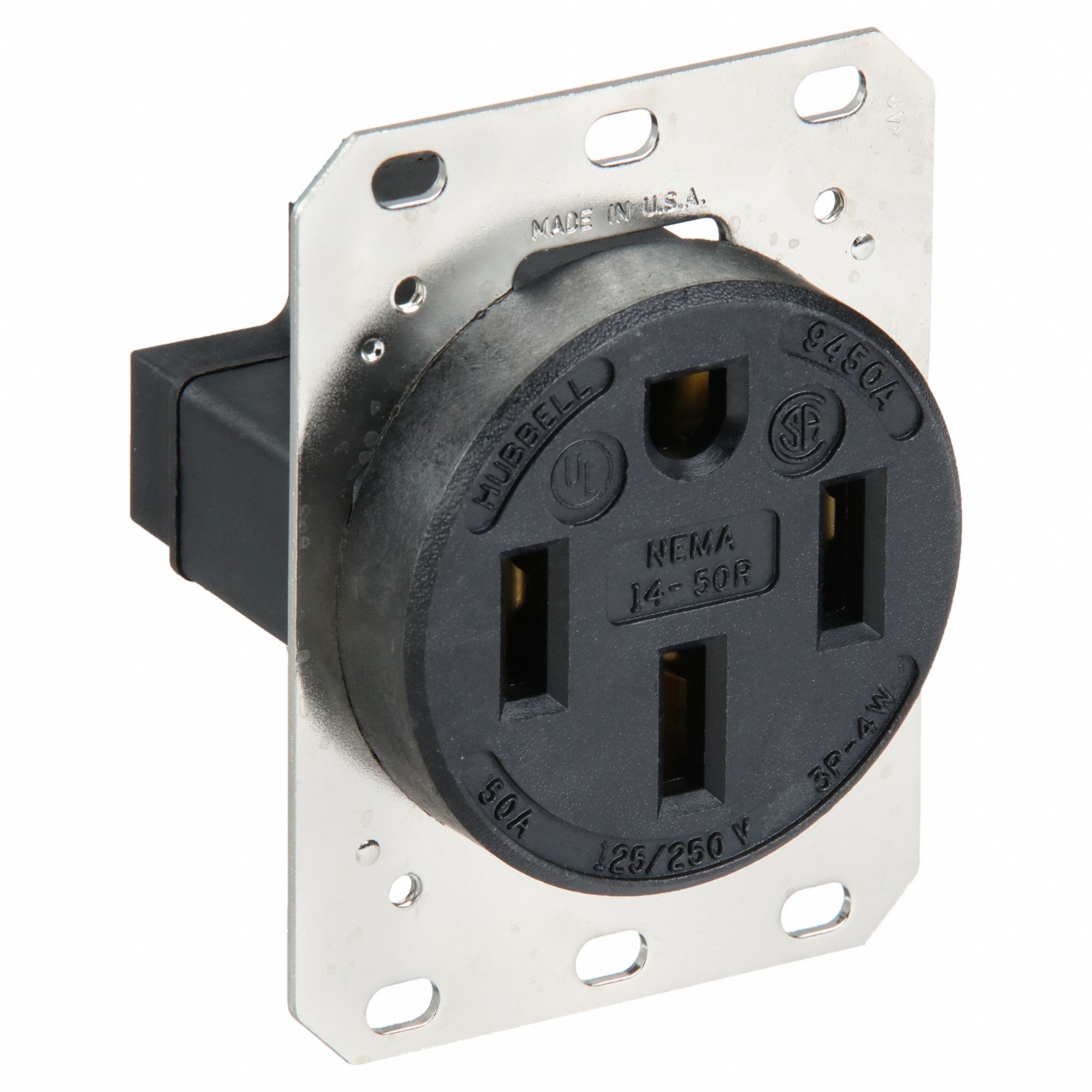

RECEPTACLE, SINGLE, 14-50R, 125/250V AC, 50 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

RECEPTACLE, SINGLE, 14-50R, 125/250V AC, 50 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

RECEPTACLE, SINGLE, 14-50R, 125/250V AC, 50 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
RECEPTACLE, SINGLE, 14-50R, 125/250V AC, 50 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

RECEPTACLE, SINGLE, 14-50R, 125/250V AC, 50 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $277.50 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL9450A
  • Mfr. Model # HBL9450A
  • UNSPSC # 39121702
  • CATALOGUE PAGE # 85
  • Shipping Weight 0.62 lbs

Product Details

Heavy-duty 4 wire straight blade device. Heavy-duty cord clamps hold a range of cable sizes. Ribs on body offer secure grip area. 1-piece contacts offer low operating temp. Large head terminal screws. Can be mounted to either standard or FS/FD type boxes.

Technical Specs

  • ItemReceptacle
  • Current Rating50 A
  • GradeFederal Specification
  • Horsepower Rating3 hp
  • Housing MaterialComposite, Thermoplastic
  • NEMA Enclosure Rating1
  • Number of Gangs1
  • Number of Wires4
  • Receptacle TypeSingle
  • Voltage Rating125/250V AC
  • Wiring MethodBack, Side
  • Connection OrientationStraight
  • Flange TypeNon-Flanged
  • IncludesWall Plate or Weatherproof Cover
  • Maximum Operating Temperature167 Degrees F
  • Minimum Operating Temperature-40 Degrees F
  • Mount Hole Center-to-Center Height3.3 in
  • Mount TypeFlush
  • PolarizedYes
  • StandardsCSA Certified, NEMA WD-6, UL E2186
  • Face Diameter2.4 in
  • AFCI No
  • GFCI No
  • Grounding Grounded
  • Housing Colour Black
  • IP Rating IP20
  • NEMA Receptacle Configuration 14-50R
  • Number of Poles 3
  • Phase Single
  • Surge Protection No
  • Wire Connection Type Screw Terminals
  • Cover Type No Cover
  • Contact Material Brass
  • For Location Indoor
  • Market Industrial
  • Maximum Wire Size 4 AWG
  • Minimum Wire Size 12 AWG
  • Mount Hole Centre-to-Centre Width 1.8 in
  • Overall Depth 2.4 in
  • Shrouded No
  • UL 94 Flammability Rating V-0
  • Country of Origin United States (subject to change)
