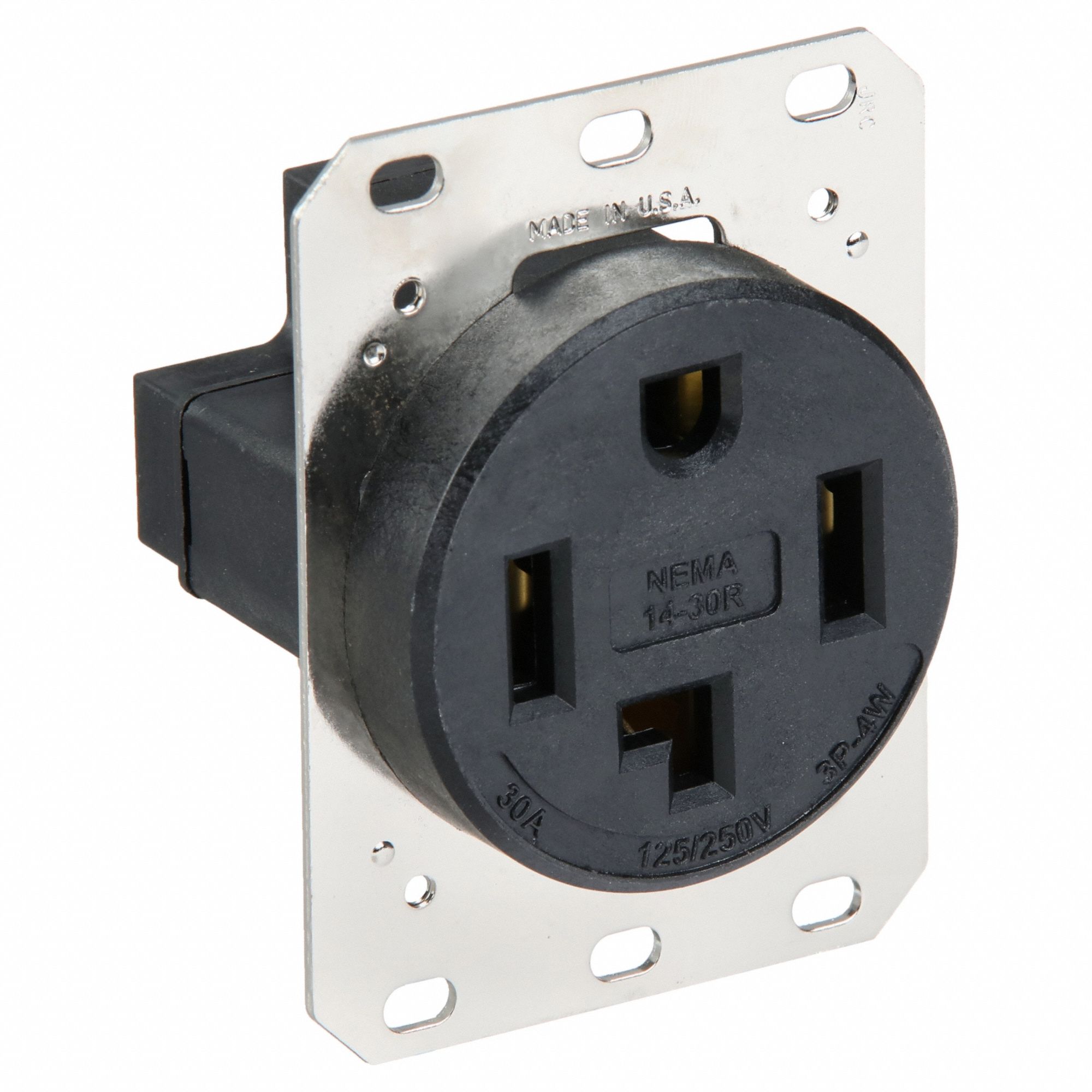

RECEPTACLE, SINGLE, 14-30R, 125/250V AC, 30 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

RECEPTACLE, SINGLE, 14-30R, 125/250V AC, 30 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

RECEPTACLE, SINGLE, 14-30R, 125/250V AC, 30 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
RECEPTACLE, SINGLE, 14-30R, 125/250V AC, 30 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

RECEPTACLE, SINGLE, 14-30R, 125/250V AC, 30 A, BLACK, 3 POLE/4 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $175.40 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL9430A
  • Mfr. Model # HBL9430A
  • UNSPSC # 39121702
  • CATALOGUE PAGE # 85
  • Shipping Weight 0.6 lbs

Product Details

Heavy-duty 4 wire straight blade device. Heavy-duty cord clamps hold a range of cable sizes. Ribs on body offer secure grip area. 1-piece contacts offer low operating temp. Large head terminal screws. Can be mounted to either standard or FS/FD type boxes.

Technical Specs

  • ItemReceptacle
  • Cover TypeNo Cover
  • GFCINo
  • Housing ColourBlack
  • Mount TypeFlush
  • NEMA Receptacle Configuration14-30R
  • Number of Poles3
  • PhaseSingle
  • Receptacle TypeSingle
  • Voltage Rating125/250V AC
  • Wiring MethodBack, Side
  • Horsepower Rating2 hp
  • Surge ProtectionNo
  • Flange TypeNon-Flanged
  • Contact MaterialBrass
  • GradeFederal Specification
  • Maximum Operating Temperature167 Degrees F
  • Mount Hole Center-to-Center Height3.3 in
  • Connection Orientation Straight
  • Current Rating 30 A
  • Grounding Grounded
  • Housing Material Reinforced Thermoplastic Polyester
  • NEMA Enclosure Rating 1
  • Number of Gangs 1
  • Number of Wires 4
  • Polarized Yes
  • Standards CSA Certified, NEMA WD-6, UL E2186
  • Wire Connection Type Screw Terminals
  • AFCI No
  • IP Rating IP20
  • UL 94 Flammability Rating V-0
  • Shrouded No
  • For Location Indoor
  • Market Industrial
  • Maximum Wire Size 4 AWG
  • Overall Depth 2.4 in
  • Country of Origin United States (subject to change)
