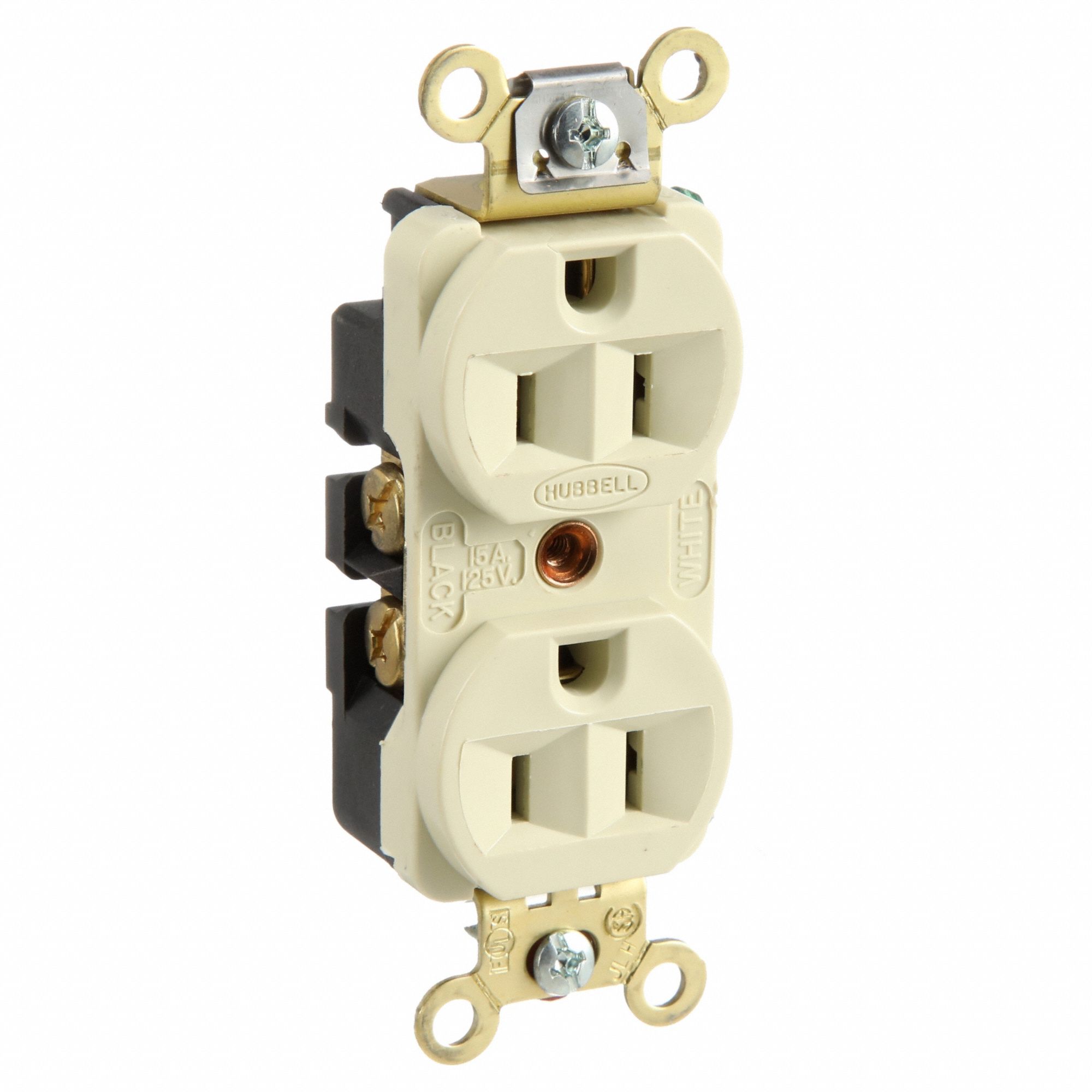

RECEPTACLE, DUPLEX, 5-15R, 125V AC, 15 A, IVORY, 2 POLE/3 WIRE, SCREW TERMINALS

RECEPTACLE, DUPLEX, 5-15R, 125V AC, 15 A, IVORY, 2 POLE/3 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

RECEPTACLE, DUPLEX, 5-15R, 125V AC, 15 A, IVORY, 2 POLE/3 WIRE, SCREW TERMINALS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
RECEPTACLE, DUPLEX, 5-15R, 125V AC, 15 A, IVORY, 2 POLE/3 WIRE, SCREW TERMINALS

RECEPTACLE, DUPLEX, 5-15R, 125V AC, 15 A, IVORY, 2 POLE/3 WIRE, SCREW TERMINALS

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $20.50 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL5252I
  • Mfr. Model # HBL5252I
  • UNSPSC # 39121406
  • CATALOGUE PAGE # 83
  • Shipping Weight 0.3 lbs

Product Details

industrial/institutional straight blade receptacle, 1 piece mounting strap & integral ground contacts, thermaset base is heat resistant, impact resistant thermoplastic face, external back wiring clamp, oxide cutting.

Technical Specs

  • ItemReceptacle
  • Current Rating15 A
  • GradeFederal Specification
  • Horsepower Rating1/2 hp
  • Housing MaterialNylon
  • NEMA Receptacle Configuration5-15R
  • Number of Poles2
  • PhaseSingle
  • Surge ProtectionNo
  • Wire Connection TypeScrew Terminals
  • Cover TypeNo Cover
  • Contact MaterialBrass
  • Face Plate Width1.3 in
  • For LocationIndoor
  • Includes Mounting HardwareYes
  • Maximum Operating Temperature167 Degrees F
  • Minimum Operating Temperature-40 Degrees F
  • Mount Hole Center-to-Center Height3.3 in
  • Overall Depth1.1 in
  • ShroudedNo
  • UL 94 Flammability RatingV-0
  • AFCI No
  • GFCI No
  • Grounding Grounded
  • Housing Colour Ivory
  • NEMA Enclosure Rating 1
  • Number of Gangs 1
  • Number of Wires 3
  • Receptacle Type Duplex
  • Voltage Rating 125V AC
  • Wiring Method Back, Side
  • Connection Orientation Straight
  • Face Plate Height 2.7 in
  • Flange Type Non-Flanged
  • Includes Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
  • Market Industrial
  • Maximum Wire Size 10 AWG
  • Minimum Wire Size 14 AWG
  • Mount Type Flush
  • Polarized Yes
  • Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
  • Country of Origin United States (subject to change)

Compliance and Restrictions

  • None
