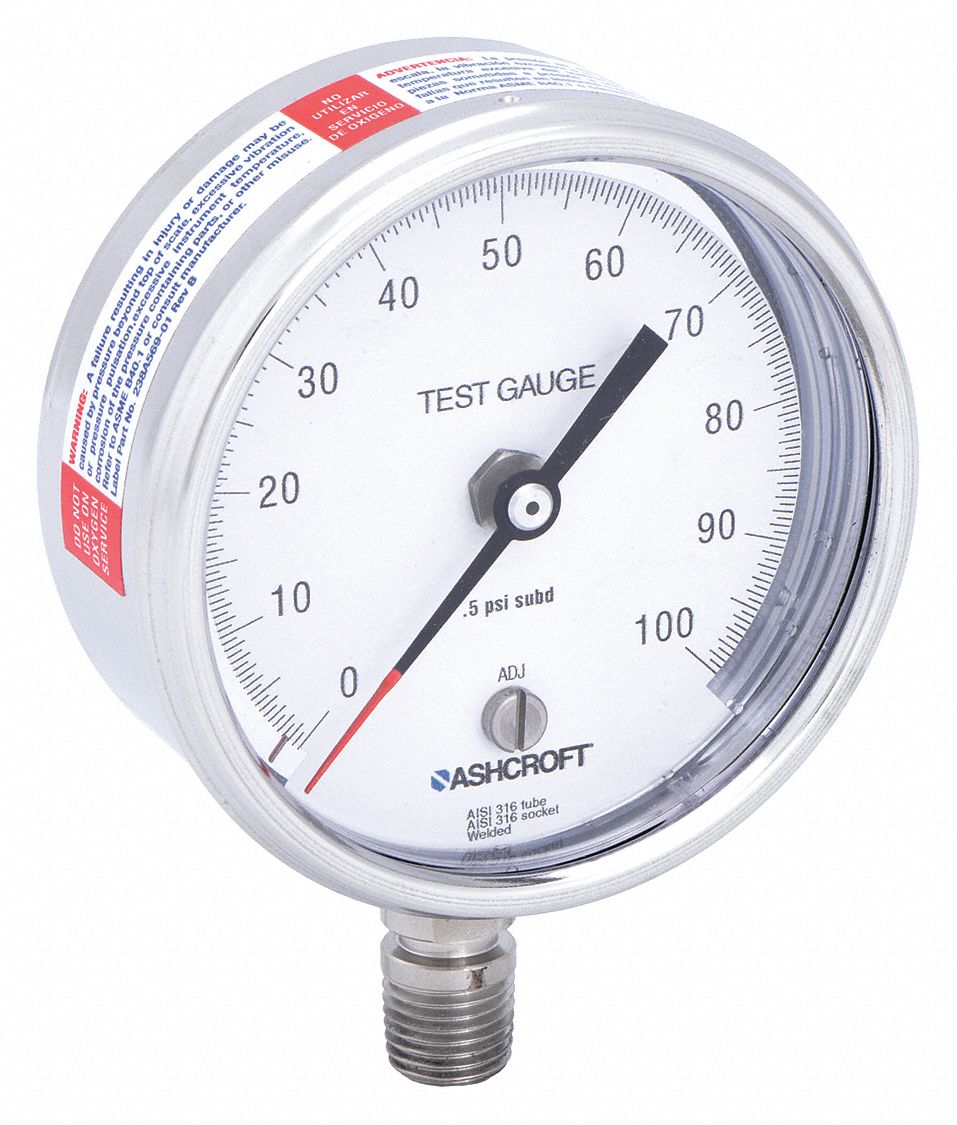

TEST PRESSURE GAUGE, POCKET TEST PRESSURE GAUGE, GRADE 2A - PROCESS/POCKET TEST, BOTTOM, 3 IN, 0 TO 100 P

TEST PRESSURE GAUGE, POCKET TEST PRESSURE GAUGE, GRADE 2A - PROCESS/POCKET TEST, BOTTOM, 3 IN, 0 TO 100 P

ASHCROFT

TEST PRESSURE GAUGE, POCKET TEST PRESSURE GAUGE, GRADE 2A - PROCESS/POCKET TEST, BOTTOM, 3 IN, 0 TO 100 P close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
TEST PRESSURE GAUGE, POCKET TEST PRESSURE GAUGE, GRADE 2A - PROCESS/POCKET TEST, BOTTOM, 3 IN, 0 TO 100 P

TEST PRESSURE GAUGE, POCKET TEST PRESSURE GAUGE, GRADE 2A - PROCESS/POCKET TEST, BOTTOM, 3 IN, 0 TO 100 P

ASHCROFT

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $434.97 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG2C679
  • Mfr. Model # 30-1084S 02L 100 PSI
  • UNSPSC # 23151820
  • CATALOGUE PAGE # N/A
  • Shipping Weight 1.05 lbs

Technical Specs

  • ItemTest Pressure Gauge
  • Primary Scale Pressure Measurement - Minimum0 psi
  • Nominal Dial Diameter3 in
  • Case Material316L Stainless Steel
  • Case ColourMetallic
  • Operating Temperature - Minimum-20 Degrees F
  • Case LiquidNone
  • Process Media Temperature - Maximum250 Degrees F
  • Process Media Temperature - Minimum-20 Degrees F
  • Liquid-Filled CaseNot Liquid-Filled Case
  • Pointer ColourBlack, Red
  • Includes Calibration CertificateCalibration Certificate Not Included
  • Process Connection GenderMale
  • Process Connection TypeNPT
  • Dial ColourWhite
  • Mounting TypeStem-Mount
  • Accuracy GradeASME B40.100 Grade 2A
  • Scale TypeSingle
  • Dial Face MaterialAluminum
  • Case Diameter3.25 in
  • Removable BezelNo Removable Bezel
  • Panel-MountableNot Panel-Mountable
  • Case Depth1.468 in
  • Primary Scale Pressure Measurement - Maximum 100 psi
  • Compatible with Brand Universal
  • Accuracy +/-0.50%
  • Standards ASME, CE, CRN, UKCA
  • Pressure Range Type Pressure
  • Operating Temperature - Maximum 200 Degrees F
  • Process Connection Location Bottom
  • Socket Material 316L Stainless Steel
  • Sensor Material 316L Stainless Steel
  • Field Fillable Not Field Fillable
  • Includes Nylon Pouch with Carry Strap
  • Lens Material Polycarbonate
  • Process Connection Size 1/4 in
  • Primary Scale Units psi
  • Series 1084
  • Pressure Gauge Type Test Pressure Gauge
  • Cleaned for Oxygen Service Not Cleaned for Oxygen Service
  • Blowout Safety Back No Blowout Safety Back
  • Freeze Resistant Movement Not Freeze Resistant Movement
  • Primary Scale Minor Graduations 1
  • Includes Mounting Hardware Mounting Hardware Not Included
  • Bezel Material Polycarbonate
  • Pointer Material Aluminum
  • Country of Origin United States (subject to change)
