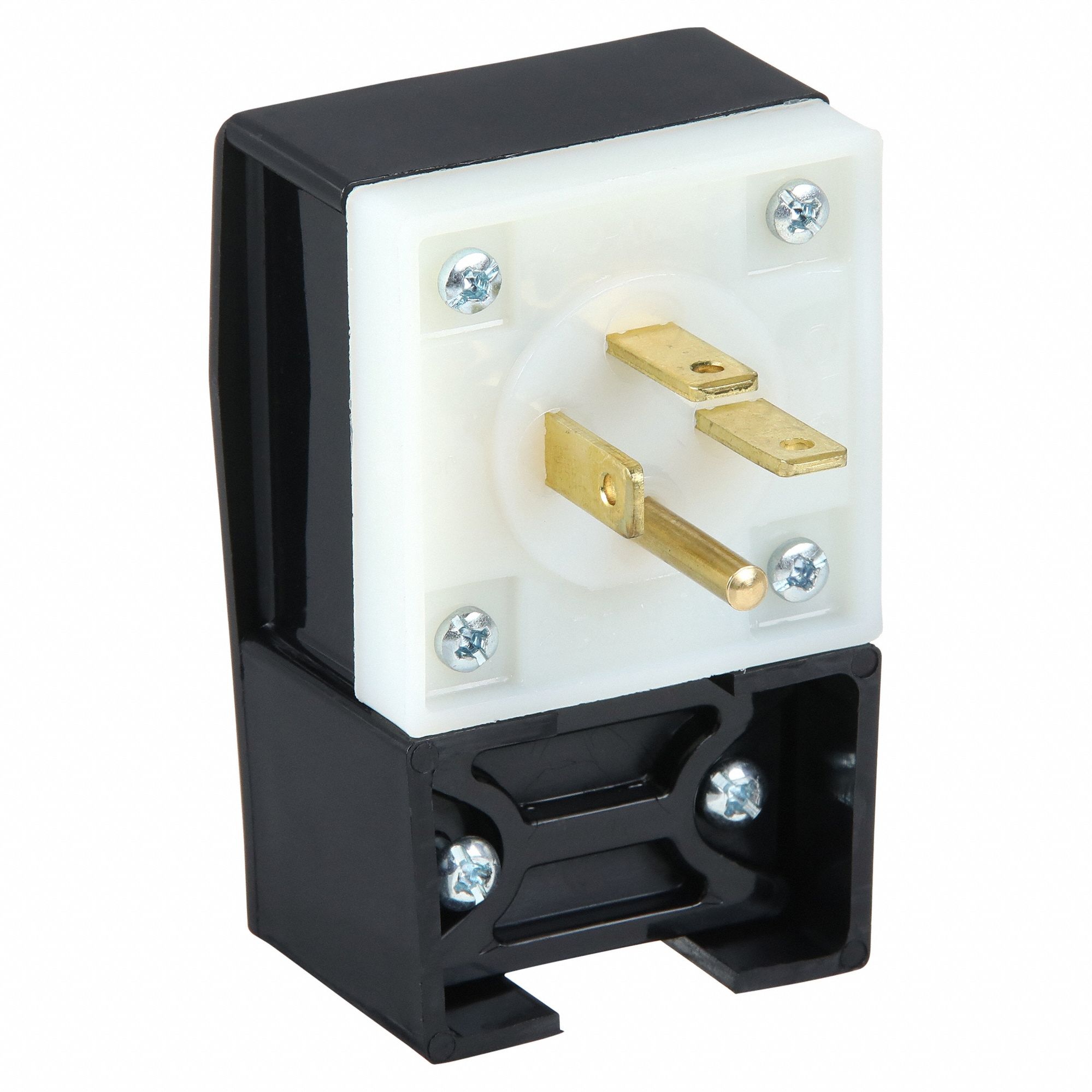

ANGLE STRAIGHT BLADE PLUG, 15-20P, 20 A, 250V AC, BLACK/WHITE, 3 POLES

ANGLE STRAIGHT BLADE PLUG, 15-20P, 20 A, 250V AC, BLACK/WHITE, 3 POLES

HUBBELL WIRING DEVICE-KELLEMS

ANGLE STRAIGHT BLADE PLUG, 15-20P, 20 A, 250V AC, BLACK/WHITE, 3 POLES close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
ANGLE STRAIGHT BLADE PLUG, 15-20P, 20 A, 250V AC, BLACK/WHITE, 3 POLES

ANGLE STRAIGHT BLADE PLUG, 15-20P, 20 A, 250V AC, BLACK/WHITE, 3 POLES

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $215.46 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL8421C
  • Mfr. Model # HBL8421C
  • UNSPSC # 39121402
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.4 lbs

Product Details

This angle straight blade plug has three poles, three phases, and a voltage rating of 250V AC. It has the following resistance properties: corrosion resistant. This angle straight blade plug meets the standards for CSA and UL. It is black/white.

Technical Specs

  • ItemAngle Straight Blade Plug
  • Current Rating20 A
  • Housing MaterialNylon
  • NEMA Plug Configuration15-20P
  • Number of Poles3
  • Resistance PropertiesCorrosion Resistant
  • Wire Connection TypeScrew Terminals
  • PhaseThree
  • For Minimum Cable Diameter0.39 in
  • GroundingGrounded
  • Insulation MaterialNylon
  • StandardsCSA Certified, UL Listed
  • Connection Orientation Angled
  • Housing Colour Black, White
  • IP Rating IP20
  • Number of Blades 4
  • Polarized Yes
  • Voltage Rating 250V AC
  • Wiring Style Standard
  • For Maximum Cable Diameter 0.775 in
  • Grade Industrial
  • Horsepower Rating 3 hp
  • Market Industrial
  • Country of Origin United States (subject to change)
