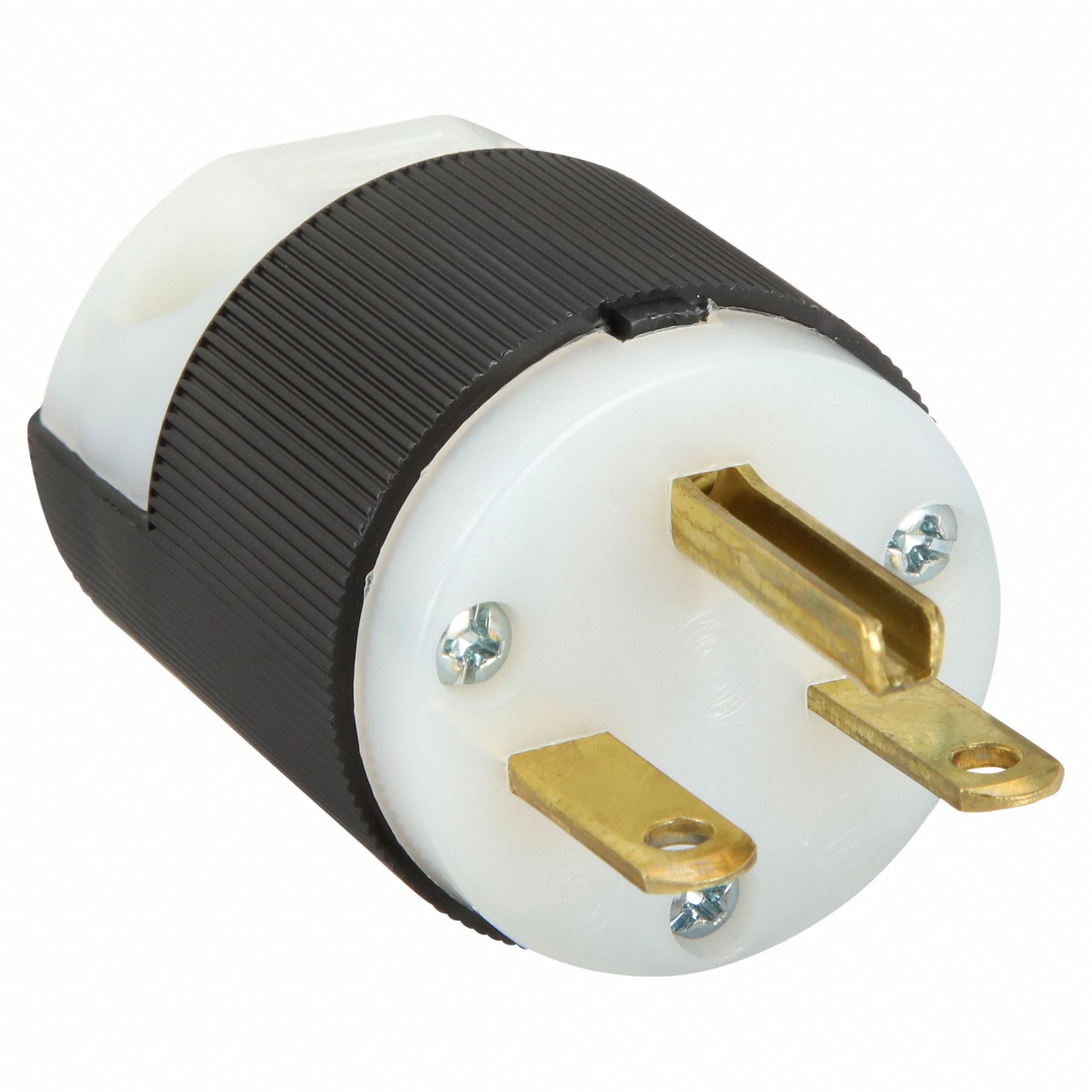

STRAIGHT BLADE PLUG, 6-15P, 15 A, 250V AC, BLACK/WHITE, 2 POLES

STRAIGHT BLADE PLUG, 6-15P, 15 A, 250V AC, BLACK/WHITE, 2 POLES

HUBBELL WIRING DEVICE-KELLEMS

STRAIGHT BLADE PLUG, 6-15P, 15 A, 250V AC, BLACK/WHITE, 2 POLES close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
STRAIGHT BLADE PLUG, 6-15P, 15 A, 250V AC, BLACK/WHITE, 2 POLES

STRAIGHT BLADE PLUG, 6-15P, 15 A, 250V AC, BLACK/WHITE, 2 POLES

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $52.74 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL5666C
  • Mfr. Model # HBL5666C
  • UNSPSC # 39121702
  • CATALOGUE PAGE # 85
  • Shipping Weight 0.15 lbs

Product Details

Industrial straight blade plug. Ribbed nylon housing. Picture window wiring & angled wiring entrance holes permit straight in conductor insertion. Vari-Size cord grip. Accepts 10/3 SO to 18/3 SJ cord. HP rating is Phase-to-Phase. UL listed, CSA certified.

Technical Specs

  • ItemStraight Blade Plug
  • Current Rating15 A
  • Housing MaterialNylon
  • NEMA Plug Configuration6-15P
  • Number of Poles2
  • Resistance PropertiesChemical Resistant, Impact Resistant
  • Wire Connection TypeScrew Terminals
  • PhaseSingle
  • For Maximum Cable Diameter0.72 in
  • GradeIndustrial
  • Horsepower Rating1 1/2 hp
  • MarketCommercial, Industrial
  • Maximum Wire Size10 AWG
  • Minimum Wire Size18 AWG
  • StandardsCSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706
  • Connection Orientation Straight
  • Housing Colour Black, White
  • IP Rating IP20
  • Number of Blades 3
  • Polarized Yes
  • Voltage Rating 250V AC
  • Wiring Style Standard
  • Body Length 1.97 in
  • For Minimum Cable Diameter 0.23 in
  • Grounding Grounded
  • Insulation Material Nylon
  • Maximum Operating Temperature 167 Degrees F
  • Minimum Operating Temperature -40 Degrees F
  • Outside Diameter 1.53 in
  • UL 94 Flammability Rating HB
  • Country of Origin United States (subject to change)
