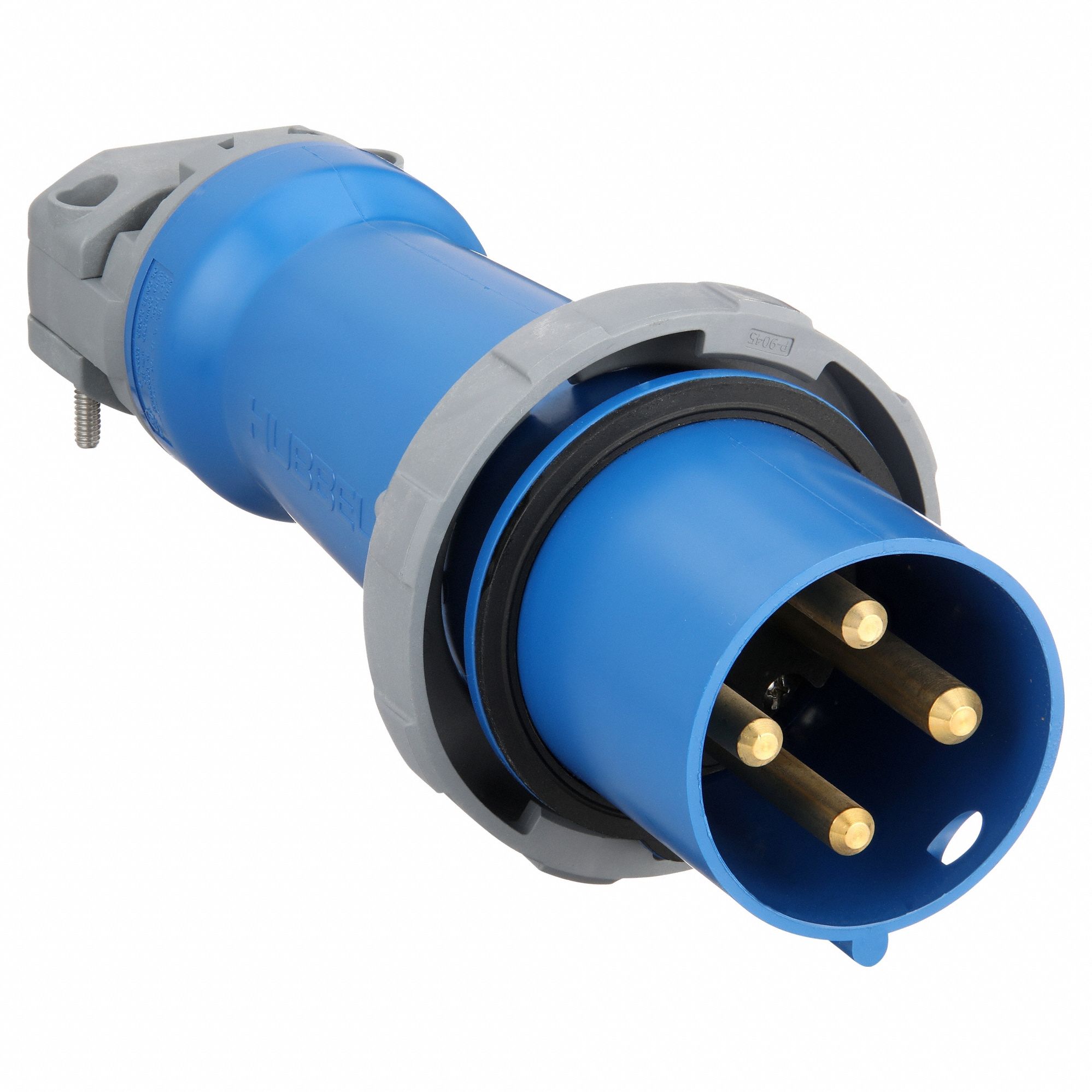

IEC PIN AND SLEEVE PLUG, 100 A, 250V AC, IEC GROUNDING, 15 HORSEPOWER RATING

IEC PIN AND SLEEVE PLUG, 100 A, 250V AC, IEC GROUNDING, 15 HORSEPOWER RATING

HUBBELL WIRING DEVICE-KELLEMS

IEC PIN AND SLEEVE PLUG, 100 A, 250V AC, IEC GROUNDING, 15 HORSEPOWER RATING close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
IEC PIN AND SLEEVE PLUG, 100 A, 250V AC, IEC GROUNDING, 15 HORSEPOWER RATING

IEC PIN AND SLEEVE PLUG, 100 A, 250V AC, IEC GROUNDING, 15 HORSEPOWER RATING

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $1,186.25 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL4100P9W
  • Mfr. Model # HBL4100P9W
  • UNSPSC # 39121402
  • CATALOGUE PAGE # 89
  • Shipping Weight 4.02 lbs

Product Details

This pin and sleeve plug has three poles, three phases, a voltage rating of 250V AC, and an operating temperature range of -40 Degrees C to 75 Degrees C. It has the following resistance properties: impact resistant, moisture resistant, watertight, measures 12.63 inch L. This pin and sleeve plug meets the standards for CSA, UL. It is blue, and has 3 AWG minimum wire size to 1/0 AWG maximum wire size.

Technical Specs

  • ItemPin and Sleeve Plug
  • Grounding StyleIEC
  • Housing MaterialPolybutylene Terephthalate
  • NEMA Enclosure Rating4X
  • Number of Wires4
  • StandardsCSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
  • Voltage Rating250V AC
  • Cap TypeNo Cap or Cover
  • Face Diameter3.21 in
  • For Minimum Cable Diameter1.065 in
  • Maximum Operating Temperature75 Degrees C
  • Minimum Operating Temperature-40 Degrees C
  • Overall Length12.63 in
  • Resistance PropertiesImpact Resistant, Moisture Resistant, Watertight
  • ShroudedYes
  • Wire Connection TypeScrew Terminals
  • Current Rating 100 A
  • Housing Colour Blue
  • IP Rating IP67
  • Number of Poles 3
  • Phase Three
  • Switch Rated No
  • Horsepower Rating 15 hp
  • Connection Orientation Straight
  • Features Gasketed Sealing Ring Provides Watertight Seal
  • Grounding Grounded
  • Maximum Wire Size 1/0 AWG
  • Minimum Wire Size 3 AWG
  • Power Indicating Light No
  • Reverse Service No
  • UL 94 Flammability Rating HB
  • Country of Origin United States (subject to change)
