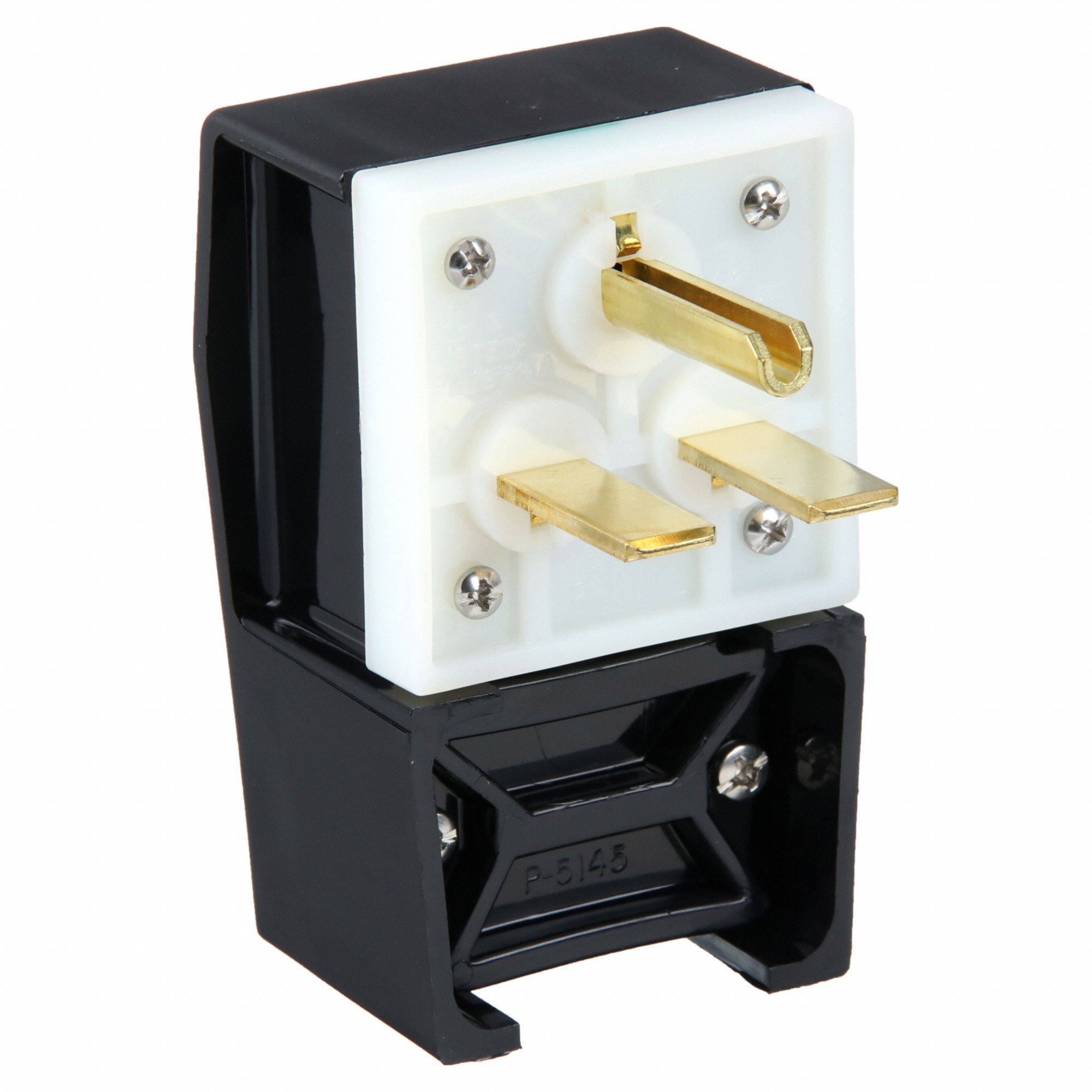

ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK, 2 POLES

ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK, 2 POLES

HUBBELL WIRING DEVICE-KELLEMS

ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK, 2 POLES close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK, 2 POLES

ANGLE STRAIGHT BLADE PLUG, 6-30P, 30 A, 250V AC, BLACK, 2 POLES

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $187.46 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL9331
  • Mfr. Model # HBL9331
  • UNSPSC # 39121402
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.45 lbs

Product Details

This angle straight blade plug has two poles, is single phase, a voltage rating of 250V AC, and an operating temperature range of -40 Degrees F to 167 Degrees F. It has the following resistance properties: corrosion resistant. This angle straight blade plug meets the standards for CSA C22.2 No. 42 File 280, UL 498 File E1706. It is black, and has 12 AWG minimum wire size to 4 AWG maximum wire size.

Technical Specs

  • ItemAngle Straight Blade Plug
  • Current Rating30 A
  • Housing MaterialNylon
  • NEMA Plug Configuration6-30P
  • Number of Poles2
  • Resistance PropertiesCorrosion Resistant
  • Wire Connection TypeScrew Terminals
  • PhaseSingle
  • For Maximum Cable Diameter1.187 in
  • GradeIndustrial
  • Horsepower Rating2 hp
  • MarketCommercial, Industrial
  • Maximum Wire Size4 AWG
  • Minimum Wire Size12 AWG
  • UL 94 Flammability RatingV-2
  • Connection Orientation Angled
  • Housing Colour Black
  • IP Rating IP20
  • Number of Blades 3
  • Polarized Yes
  • Voltage Rating 250V AC
  • Wiring Style Standard
  • Body Length 4.34 in
  • For Minimum Cable Diameter 0.625 in
  • Grounding Grounded
  • Insulation Material Nylon
  • Maximum Operating Temperature 167 Degrees F
  • Minimum Operating Temperature -40 Degrees F
  • Standards CSA Certified C22.2 No. 42 File 280, UL 498 File E1706
  • Country of Origin United States (subject to change)
