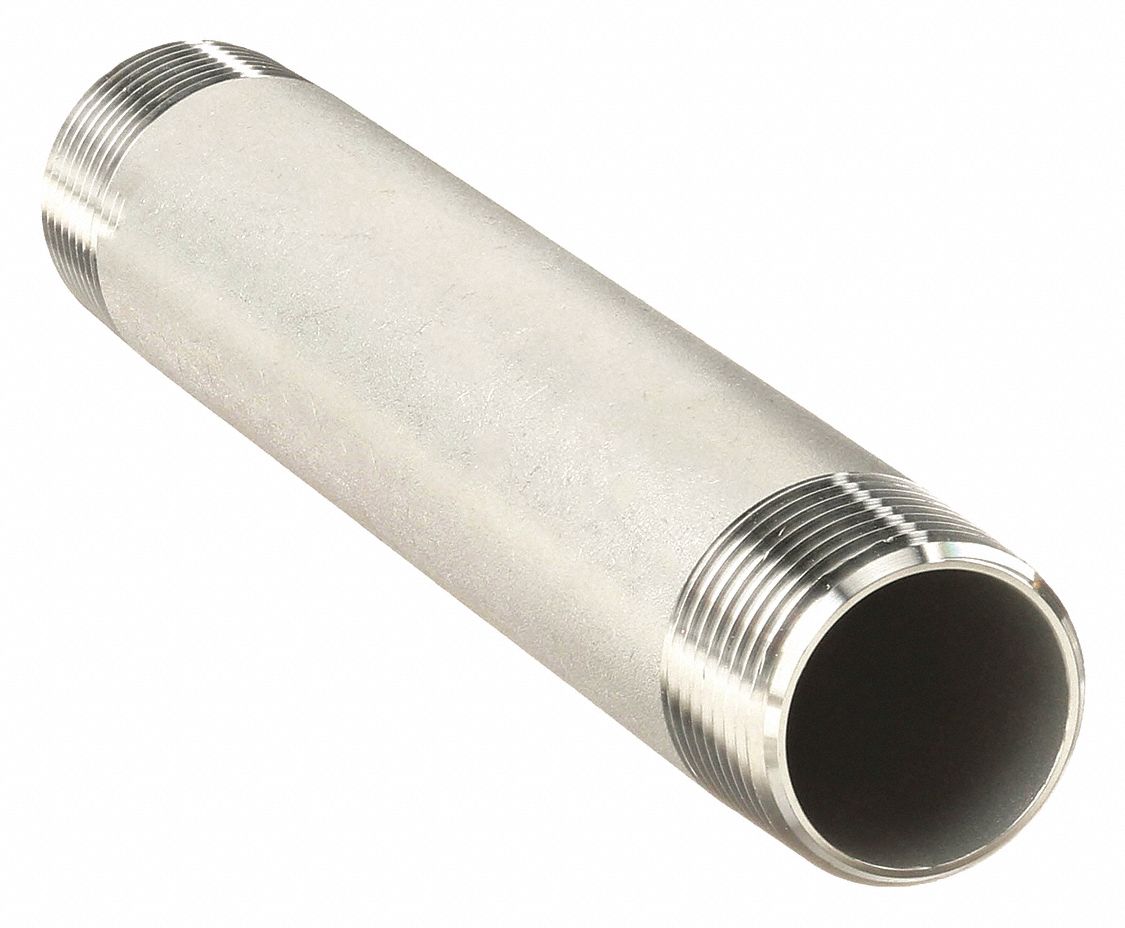

NIPPLE: 316 STAINLESS STEEL, ½ IN NOMINAL PIPE SIZE, 9 IN L, BOTH ENDS THREADED

NIPPLE: 316 STAINLESS STEEL, ½ IN NOMINAL PIPE SIZE, 9 IN L, BOTH ENDS THREADED

APPROVED VENDOR

NIPPLE: 316 STAINLESS STEEL, ½ IN NOMINAL PIPE SIZE, 9 IN L, BOTH ENDS THREADED close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
NIPPLE: 316 STAINLESS STEEL, ½ IN NOMINAL PIPE SIZE, 9 IN L, BOTH ENDS THREADED

NIPPLE: 316 STAINLESS STEEL, ½ IN NOMINAL PIPE SIZE, 9 IN L, BOTH ENDS THREADED

APPROVED VENDOR

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $26.70 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGM1XAC4
  • Mfr. Model # T6BND14
  • UNSPSC # 27121704
  • CATALOGUE PAGE # 1679
  • Shipping Weight 0.5 lbs

Product Details

This nipple meets the standards for ASTM A733, has a length of 9 inch, a maximum operating pressure of 1838 psi @ 650 Degrees F and is designed for the following applications: air, natural gas, non-potable water, propane, steam. It has an operating temperature of -20 Degrees F to 650 Degrees F, and is made of 316-grade stainless steel. In addition, it has 13/16 inch outside diameter, ⅝ inch inside diameter and is Schedule 40, with 0.125 inch wall thickness.

Technical Specs

  • ItemNipple
  • Inside Diameter5/8 in
  • Material Grade316
  • Maximum Operating Temperature650 Degrees F
  • Minimum Operating Temperature-20 Degrees F
  • Outside Diameter13/16 in
  • Pipe Weld TypeMNPT x MNPT
  • Side A GenderMale
  • Side B GenderMale
  • StandardsASTM A733
  • Wall Thickness0.125 in
  • Application Air, Natural Gas, Non-Potable Water, Propane, Steam
  • Material Stainless Steel
  • Maximum Operating Pressure 1838 psi @ 650 Degrees F
  • Metal Pipe Construction Seamless
  • Nominal Pipe Size 1/2 in
  • Overall Length 9 in
  • Schedule Schedule 40
  • Side A Thread Type NPT
  • Side B Thread Type NPT
  • Thread Configuration Threaded on Both Ends
  • Country of Origin Mexico (subject to change)
