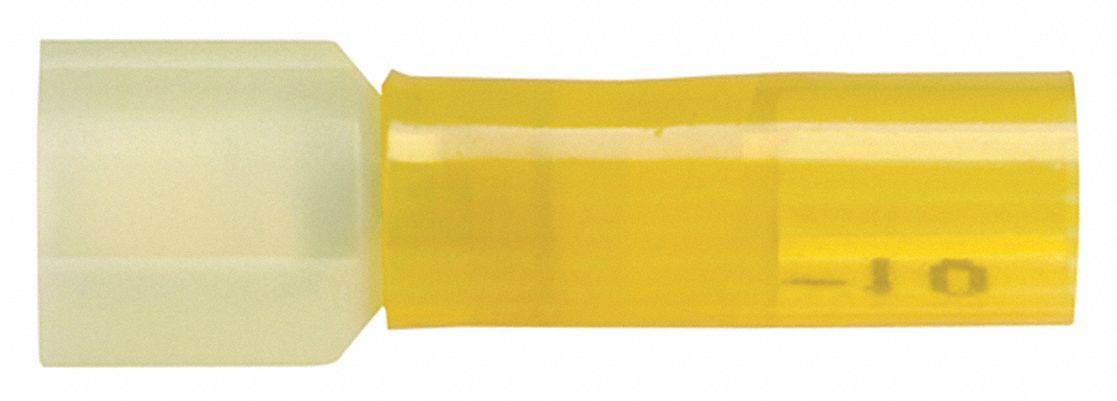

MALE DISCONNECT, YELLOW, NYLON/POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 10 PK

MALE DISCONNECT, YELLOW, NYLON/POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 10 PK

VELVAC

MALE DISCONNECT, YELLOW, NYLON/POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 10 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
MALE DISCONNECT, YELLOW, NYLON/POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 10 PK

MALE DISCONNECT, YELLOW, NYLON/POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 10 PK

VELVAC

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $20.55 / pkg. of 10

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG21DG83
  • Mfr. Model # 37487
  • UNSPSC # 39121409
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.06 lbs

Product Details

This male disconnect has an operating temperature range of -40 Degrees F to 221 Degrees F. It measures 1.5 inch L. This male disconnect meets the standards for UL. It has a tin finish, and has 12 AWG minimum wire size to 10 AWG maximum wire size.

Technical Specs

  • ItemMale Disconnect
  • Contact FinishTin
  • Disconnect StyleTab
  • Insulation CoverageFull Coverage
  • Insulation TypeHeat Shrink
  • Maximum Voltage600V
  • Minimum Wire Size12 AWG
  • Seam StyleButted
  • StandardsUL Listed
  • Tab Width0,25 po
  • Termination StyleCrimp
  • Minimum Operating Temperature-40 Degrees F
  • Barrel Inside Diameter 0.142 in
  • Contact Material Copper
  • Insulation Colour Yellow
  • Insulation Material Nylon, Polyolefin
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 10 AWG
  • Overall Length 1.5 in
  • Special Features Adhesive Lining Which Blocks Out Water, Adds Tensile Strength and Strain Relief, CNS Extreme Waterproof Wire Terminals are Designed to Perform in the Harshest Environments, It Has a Triple Layer of Protection Around a 99.9% Copper Connector for Maximum Strength and Conductivity, Polyolefin Shrink Tubing Which Allows a Complete Environment and an Abrasion Resistant Seal
  • Tab Thickness 0.032 in
  • Terminal Type Tab
  • Barrel Style Funnel Entry
  • RoHS Compliant Yes
  • Country of Origin United States (subject to change)
