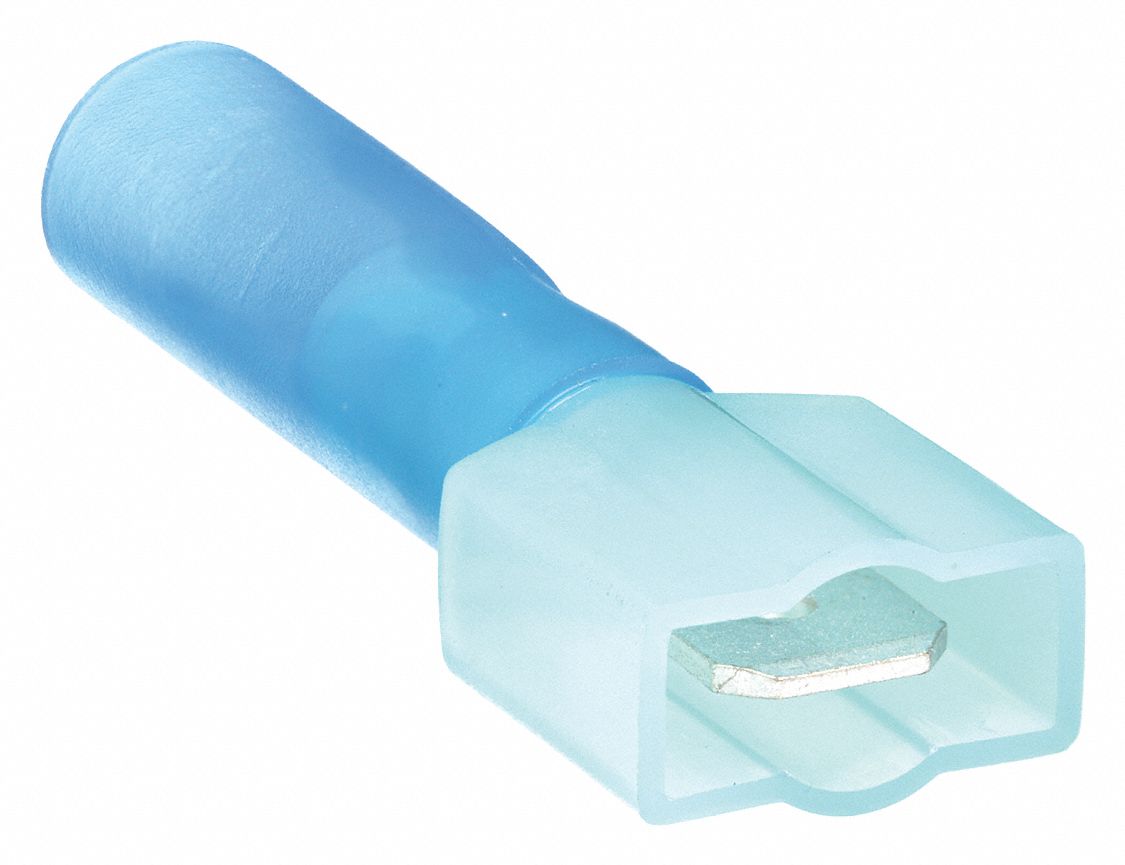

MALE DISCONNECT, BLUE, POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 25 PK

MALE DISCONNECT, BLUE, POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 25 PK

POWER FIRST

MALE DISCONNECT, BLUE, POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 25 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
MALE DISCONNECT, BLUE, POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 25 PK

MALE DISCONNECT, BLUE, POLYOLEFIN, FULL COVERAGE, HEAT SHRINK, 25 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $21.03 / pkg. of 25

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5WHH4
  • Mfr. Model # 5WHH4
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 92
  • Shipping Weight 0.15 lbs

Product Details

Male Disconnect, Insulation Type Heat Shrink Nylon, Colour Code Blue, Wire Range 16 to 14 AWG, Tab Size 0.250 x 0.032 In., Barrel Inside Dia. 0.091, Max. Temp. 221 Degrees F, Max. Voltage 300V, Overall Length 1.55 In., Seam Butted, Connection Material Bra

Technical Specs

  • ItemMale Disconnect
  • Contact FinishTin
  • Disconnect StyleTab
  • Insulation CoverageFull Coverage
  • Insulation TypeHeat Shrink
  • Maximum Voltage600V
  • Minimum Wire Size16 AWG
  • Seam StyleButted
  • Tab Thickness0.032 in
  • Terminal TypeTab
  • UL 94 Flammability RatingHB
  • Barrel SizeStandard
  • Connection OrientationStraight
  • Strip Length1/4 in
  • Barrel Inside Diameter 0.091 in
  • Contact Material Brass
  • Insulation Colour Blue
  • Insulation Material Polyolefin
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 14 AWG
  • Overall Length 1.555 in
  • Standards UL/cUL Listed
  • Tab Width 0,25 po
  • Termination Style Crimp
  • Barrel Outside Diameter 0.256 in
  • Barrel Style Crimp
  • Current 15 A
  • RoHS Compliant Yes
  • Country of Origin Taiwan (subject to change)
