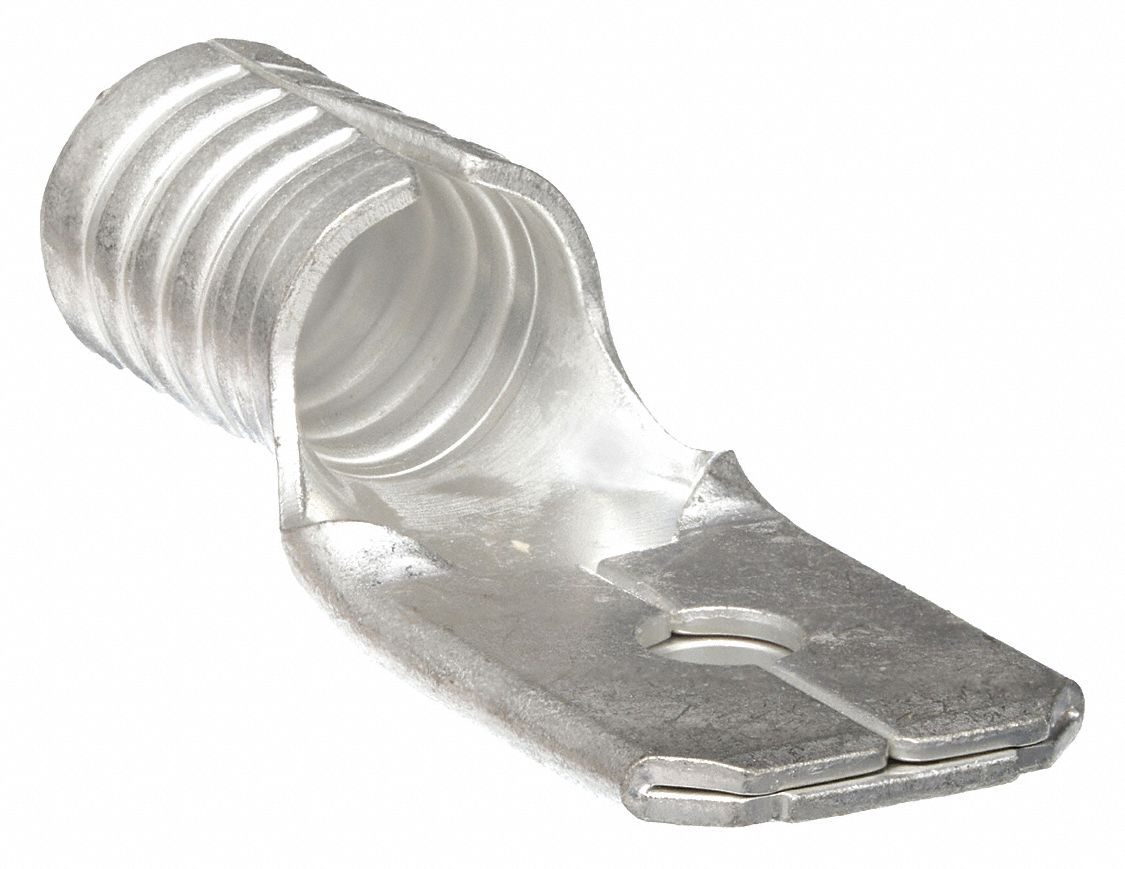

MALE DISCONNECT, BARE, NON-INSULATED, 12 AWG TO 10 AWG WIRE SIZE RANGE, 50 PK

MALE DISCONNECT, BARE, NON-INSULATED, 12 AWG TO 10 AWG WIRE SIZE RANGE, 50 PK

POWER FIRST

MALE DISCONNECT, BARE, NON-INSULATED, 12 AWG TO 10 AWG WIRE SIZE RANGE, 50 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
MALE DISCONNECT, BARE, NON-INSULATED, 12 AWG TO 10 AWG WIRE SIZE RANGE, 50 PK

MALE DISCONNECT, BARE, NON-INSULATED, 12 AWG TO 10 AWG WIRE SIZE RANGE, 50 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $5.42 / pkg. of 50

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5UGN6
  • Mfr. Model # 5UGN6
  • UNSPSC # 39121432
  • CATALOGUE PAGE # 92
  • Shipping Weight 1.2 lbs

Product Details

Male Disconnect, Insulation None, Insulation Type Noninsulated, Colour Code Bare, Wire Range 12 to 10 AWG, Tab Size 0.250 x 0.032 In., Barrel Inside Dia. 0.134, Overall Length 0.66 In., Seam Butted, Connection Material Brass, Standards ROHS, Connection Ty

Technical Specs

  • ItemMale Disconnect
  • Contact FinishTin
  • Disconnect StyleTab
  • Insulation CoverageNone
  • Insulation TypeNon-Insulated
  • Maximum Voltage600V
  • Minimum Wire Size12 AWG
  • Seam StyleButted
  • Tab Thickness0.032 in
  • Terminal TypeTab
  • Barrel Outside Diameter0.177 in
  • Barrel StyleCrimp
  • Current24 A
  • Strip Length3/8 in
  • Barrel Inside Diameter 0.134 in
  • Contact Material Brass
  • Insulation Colour Bare
  • Insulation Material None
  • Maximum Temperature 221 Degrees F
  • Maximum Wire Size 10 AWG
  • Overall Length 0.669 in
  • Standards UL/cUL Listed
  • Tab Width 0,25 po
  • Termination Style Crimp
  • Barrel Size Standard
  • Connection Orientation Straight
  • Minimum Operating Temperature 221 Degrees F
  • RoHS Compliant Yes
  • Country of Origin Taiwan (subject to change)
