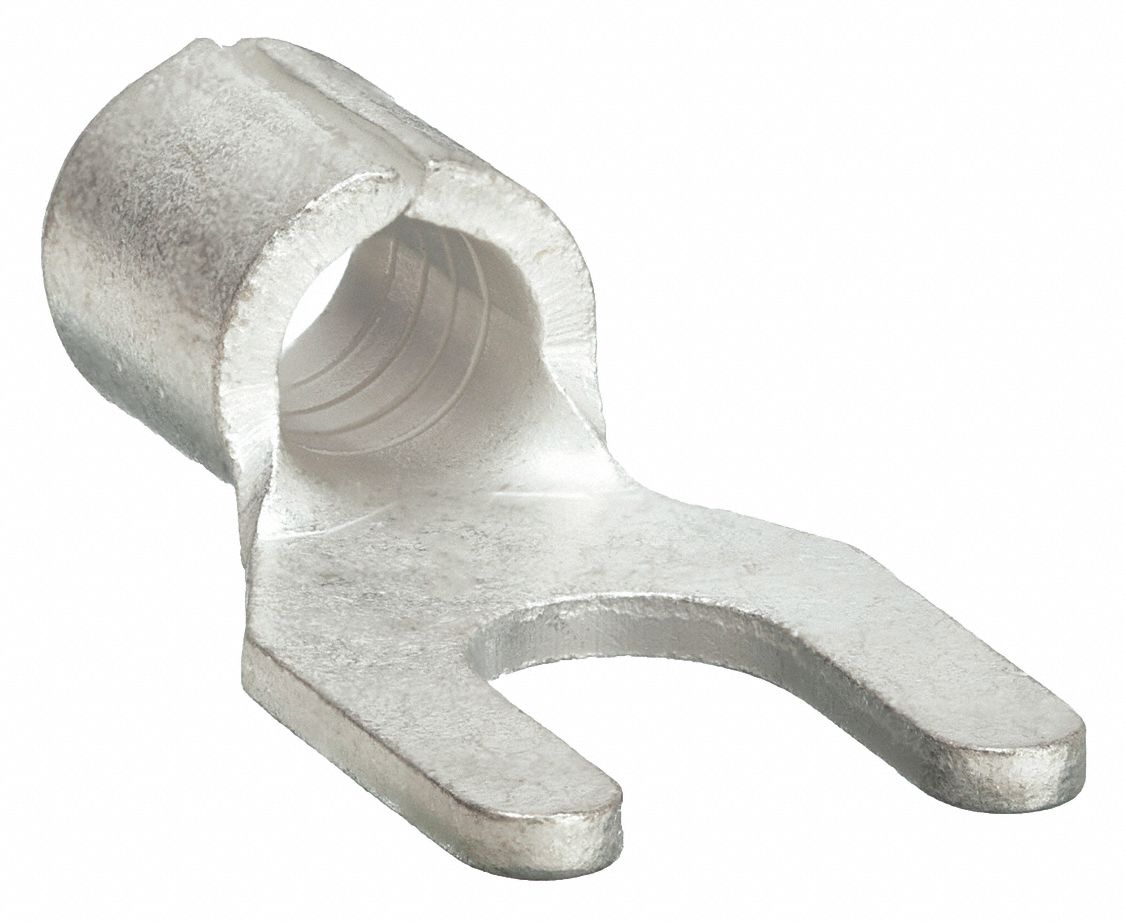

FORK TERMINAL, BARE, #8 STUD SIZE, 12 AWG TO 10 AWG WIRE SIZE RANGE, CRIMP/NONE, 50 PK

FORK TERMINAL, BARE, #8 STUD SIZE, 12 AWG TO 10 AWG WIRE SIZE RANGE, CRIMP/NONE, 50 PK

POWER FIRST

FORK TERMINAL, BARE, #8 STUD SIZE, 12 AWG TO 10 AWG WIRE SIZE RANGE, CRIMP/NONE, 50 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FORK TERMINAL, BARE, #8 STUD SIZE, 12 AWG TO 10 AWG WIRE SIZE RANGE, CRIMP/NONE, 50 PK

FORK TERMINAL, BARE, #8 STUD SIZE, 12 AWG TO 10 AWG WIRE SIZE RANGE, CRIMP/NONE, 50 PK

POWER FIRST

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $6.09 / pkg. of 50

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE5WHE3
  • Mfr. Model # 5WHE3
  • UNSPSC # 39121432
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.16 lbs

Product Details

Fork Terminal, Terminal Type Standard, Insulation Type Non Insulated, Color Code Bare, Wire Range 12 to 10 AWG, Stud Size No. 8., Overall Length 0.72 In., Connection Material Copper, Standards UL/CUL/ROHS, Package Quantity 50

Technical Specs

  • ItemFork Terminal
  • Contact MaterialCopper
  • Insulation CoverageNone
  • Maximum Operating Temperature302 Degrees F
  • Maximum Wire Size10 AWG
  • Termination StyleCrimp
  • RoHS CompliantYes
  • StandardsUL/cUL Listed E96029
  • Barrel StyleCrimp
  • Connection MaterialCopper
  • Insulation TypeNon-Insulated
  • Overall Length0.72 in
  • Terminal ShapeStandard
  • Tongue Thickness0.039 in
  • Contact Finish Tin
  • Insulation Colour Bare
  • Insulation Material None
  • Maximum Voltage 600V
  • Stud Size #8
  • Tongue Length 0.484 in
  • Seam Style Butted
  • Barrel Length 0.236 in
  • Compatible with Product Type Insulated Stranded Copper Cable
  • Connection Type Crimp
  • Minimum Wire Size 12 AWG
  • Strip Length 3/8 in
  • Terminal Type Standard
  • Tongue Width 0.354 in
  • Country of Origin Taiwan (subject to change)
