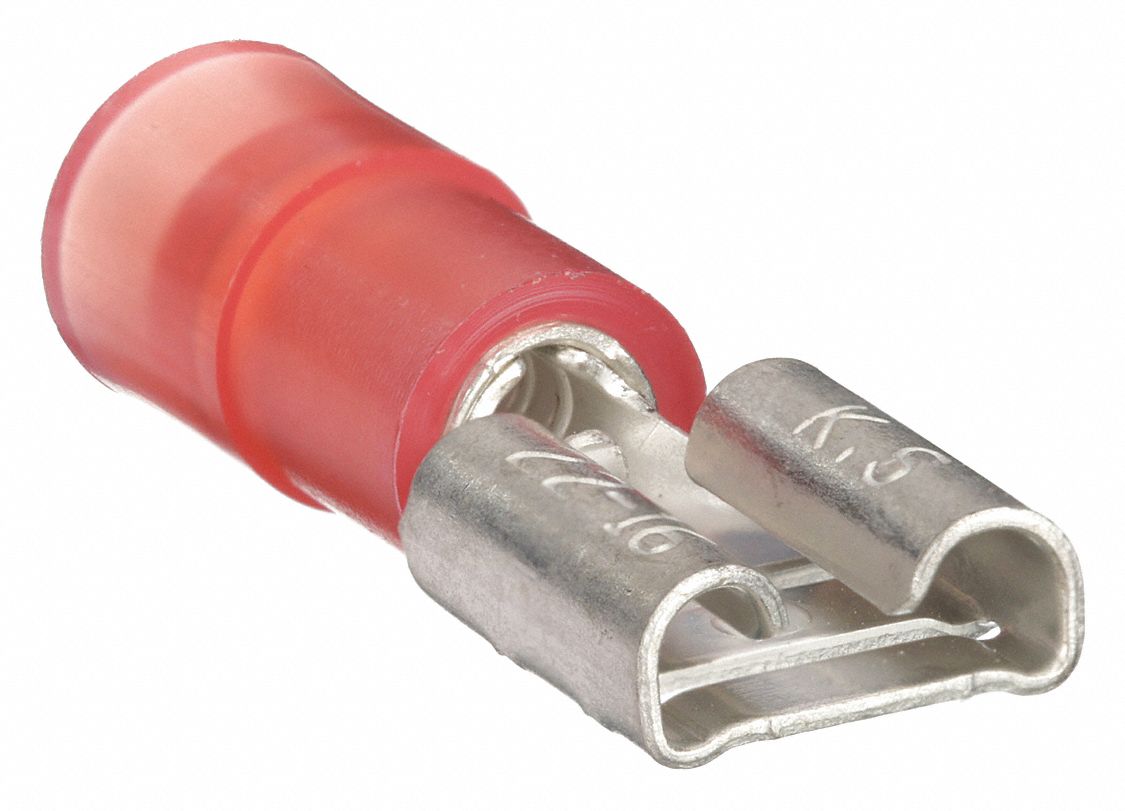

FEMALE DISCONNECT WITH COPPER SLEEVE, RED, NYLON, PARTIAL COVERAGE, CRIMP BARREL, 100 PK
FEMALE DISCONNECT WITH COPPER SLEEVE, RED, NYLON, PARTIAL COVERAGE, CRIMP BARREL, 100 PK
POWER FIRST
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
Pivoter : de haut en bas et de côte à côte en utilisant la flèche de la souris.
Agrandir : double-cliquez l’image.
Réduire / Réinitialiser : agrandissez l’image au complet et double-cliquez.
Survolez l’image pour l’agrandir.
Comparer
Informations sur le produit
Female Disconnect, Insulation Partial, Insulation Type Nylon, Colour Code Red, Wire Range 22 to 16 AWG, Tab Size 0.250 x 0.032 In., Barrel Inside Dia. 0.157 In., Max. Temp. 221 Degrees F, Max. Voltage 600V, Overall Length 0.85 In., Seam Butted, Connection
Spécifications techniques
Item Female Disconnect with Copper Sleeve Contact Finish Tin Disconnect Style Tab Insulation Coverage Partial Coverage Insulation Type Nylon Maximum Voltage 600V Minimum Wire Size 22 AWG Seam Style Butted Tab Thickness 0.032 in Terminal Type Socket UL 94 Flammability Rating V-2 Barrel Size Standard Connection Orientation Straight Strip Length 1/4 in
Barrel Inside Diameter 0.067 in Contact Material Brass Insulation Colour Red Insulation Material Nylon Maximum Temperature 221 Degrees F Maximum Wire Size 16 AWG Overall Length 0.846 in Standards UL/cUL Listed Tab Width 0,25 po Termination Style Crimp Barrel Outside Diameter 0.157 in Barrel Style Crimp Current 10 A RoHS Compliant Yes Pays d’origine Taiwan
(sous réserve de modification)
