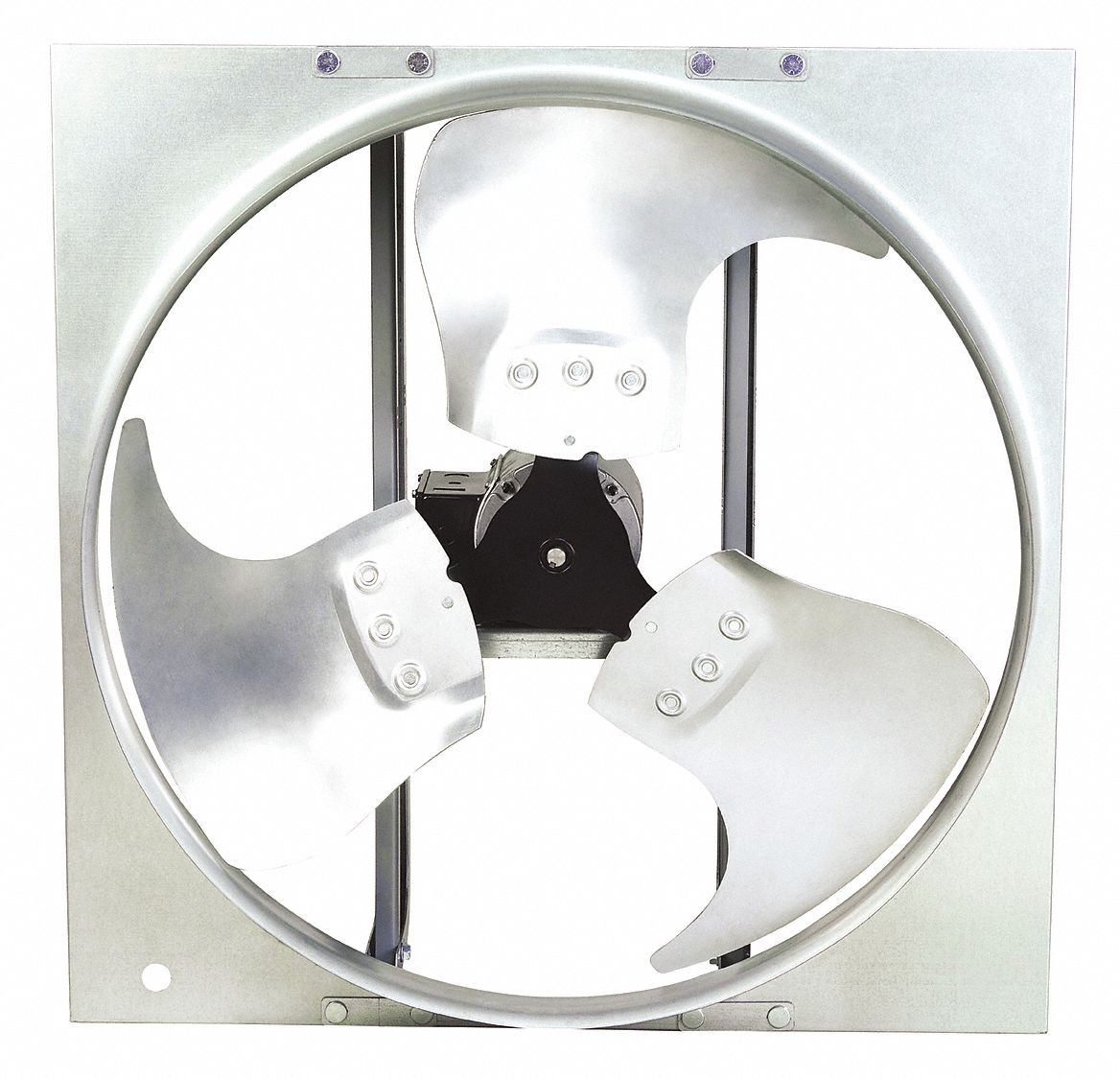

EXHAUST FAN, 30 IN BLADE, ¾ HP, 9,371 CFM, 208-230/460V AC, 3 PH, TOTALLY ENCLOSED

EXHAUST FAN, 30 IN BLADE, ¾ HP, 9,371 CFM, 208-230/460V AC, 3 PH, TOTALLY ENCLOSED

DAYTON

EXHAUST FAN, 30 IN BLADE, ¾ HP, 9,371 CFM, 208-230/460V AC, 3 PH, TOTALLY ENCLOSED close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.

This product has been DISCONTINUED and can no longer be ordered.

Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
EXHAUST FAN, 30 IN BLADE, ¾ HP, 9,371 CFM, 208-230/460V AC, 3 PH, TOTALLY ENCLOSED

EXHAUST FAN, 30 IN BLADE, ¾ HP, 9,371 CFM, 208-230/460V AC, 3 PH, TOTALLY ENCLOSED

DAYTON

https://catalogue.grainger.ca/?hybris=true
  • Item # GFN10E049
  • Mfr. Model # 10E049
  • UNSPSC # 40101502
  • CATALOGUE PAGE # N/A
  • Shipping Weight 62.0 lbs

Product Details

This exhaust fan is made of steel. It measures 34 inch width, 34 inch height, 26¼ inch depth. This exhaust fan has three phases, has ball bearings, 8,671 cfm @ 0.125 in SP air flow, and ¾ horsepower.

Technical Specs

  • ItemExhaust Fan
  • Blade MaterialAluminum
  • Frame FinishGalvanized
  • Guard TypeNone
  • Motor EnclosureTotally Enclosed Air Over
  • Motor Speed1,150 RPM
  • Number of Blades3
  • Overall Height34 in
  • Phase3
  • Fan StylePanel
  • Ventilation TypeExhaust
  • Exhaust Airflow @ 0.125 in SP8,671 cfm
  • Exhaust Airflow @ 0.375 in SP7,336 cfm
  • Maximum Ambient Operating Temperature104 Degrees F
  • Motor Type3-Phase
  • Noise Level @ 0.125 in SP @ 5 ft21 sones
  • Venturi Depth4 1/2 in
  • Blade Diameter 30 in
  • Exhaust Airflow @ 0.000 in SP 9,371 cfm
  • Frame Material Steel
  • Maximum Noise Level 24 sones
  • Motor Horsepower 3/4 hp
  • Noise Level @ 0.000 in SP @ 5 ft 24 sones
  • Overall Depth 26 1/4 in
  • Overall Width 34 in
  • Nameplate Voltage 208-230/460V AC
  • Includes Motor Motor Included
  • Bearing Type Ball
  • Exhaust Airflow @ 0.250 in SP 7,993 cfm
  • Flange Width 1 in
  • Motor Insulation Class B
  • Mounting Orientation Horizontal or Vertical
  • Standards AMCA, UL and cUL Listed
  • Country of Origin Mexico (subject to change)
