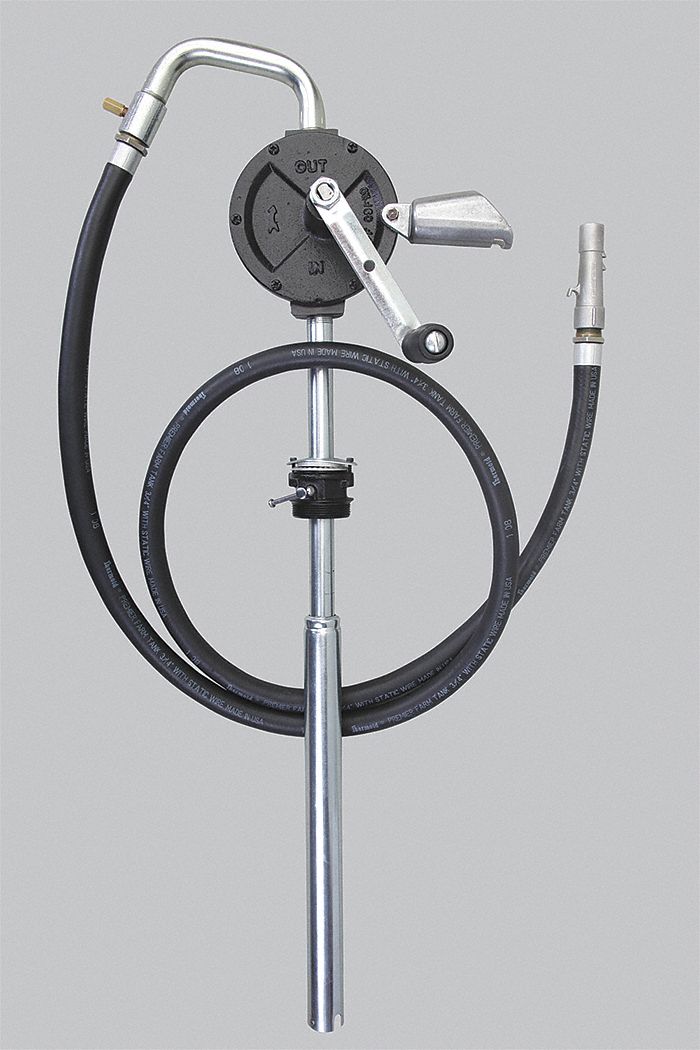

DRUM PUMP, DISCHARGE TUBE 96 IN. L

DRUM PUMP, DISCHARGE TUBE 96 IN. L

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $428.12 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGF4VCR4
  • Mfr. Model # 4VCR4
  • UNSPSC # 40151529
  • CATALOGUE PAGE # N/A
  • Shipping Weight 22.37 lbs

Technical Specs

  • ItemHand Operated Drum Pump
  • Adapter Connection TypeNPT
  • For Container Size55 gal
  • Hose Length96 in
  • Includes3/4 in x 8 ft Anti-Static Rubber Hose, Baffle and Strainer, Nozzle, Nozzle Holder, Vacuum Breaker
  • Includes NozzleYes
  • Max. Viscosity2,000 SUS
  • Nozzle OperationManual
  • Suction Tube Length18-3/16 in to 34-1/2 in
  • Agency ComplianceFM Approved
  • Includes Suction TubeYes
  • Discharge Tube Outlet ID3/4 in
  • Features1. Industry Standard for Rotary Pumps, These are By Far the Heaviest Duty, Ideal for Tough Outdoor Use in Extreme Weather Conditions 2. Solid Cast Iron Construction, Fully CNC Machined to Close Tolerances 3. Graphite Vanes are Self-Lubricating and Non-Wea
  • Hose Cover MaterialRubber
  • Hose Tube MaterialRubber
  • Max. Fluid Temp.250 Degrees F
  • Max. Head Pressure10 psi
  • Seal MaterialGraphite
  • Suction Tube IDTelescopic
  • Action Type Rotary
  • Bung Connection Dia. 2 in
  • For Container Type Drum
  • Housing Material - Pumps Cast Iron
  • Includes Discharge Hose Yes
  • Max. Flow Rate 10 gpm @ 120 strokes
  • Metered No
  • Pump Package Type Unmetered Dispensing with Manual Shut-Off
  • Wetted Materials Cast Iron, Graphite, Paper, Polypropylene, Steel
  • For Media Type General Purpose
  • Adapter Material Cast Iron
  • Discharge Tube Outlet OD 1 1/8 in
  • For Use With Diesel, Kerosene, Non Corrosive Media Solvent Kit is Available, Oil based Media
  • Hose Inside Dia. 3/4 in
  • Includes Bung Adapter Yes
  • Max. Head - Pumps 10 ft
  • Power Source Hand Operated
  • Self-Priming Yes
  • Suction Tube OD 1 in
  • Country of Origin India (subject to change)
