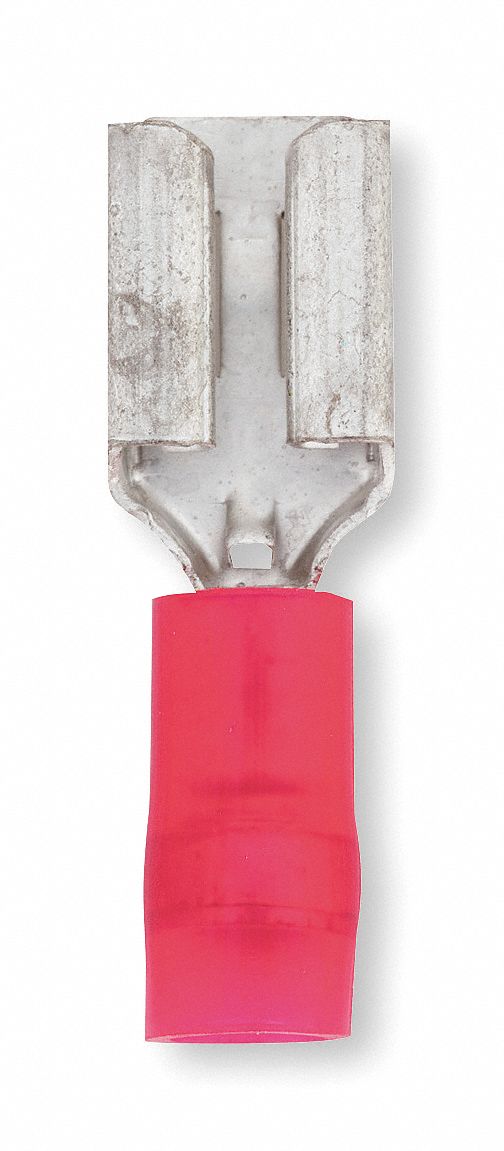

FEMALE DISCONNECT, RED, NYLON, PARTIAL COVERAGE, 22 AWG TO 18 AWG WIRE SIZE RANGE, 100 PK

FEMALE DISCONNECT, RED, NYLON, PARTIAL COVERAGE, 22 AWG TO 18 AWG WIRE SIZE RANGE, 100 PK

STA-KON

FEMALE DISCONNECT, RED, NYLON, PARTIAL COVERAGE, 22 AWG TO 18 AWG WIRE SIZE RANGE, 100 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FEMALE DISCONNECT, RED, NYLON, PARTIAL COVERAGE, 22 AWG TO 18 AWG WIRE SIZE RANGE, 100 PK

FEMALE DISCONNECT, RED, NYLON, PARTIAL COVERAGE, 22 AWG TO 18 AWG WIRE SIZE RANGE, 100 PK

STA-KON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $102.75 / pkg. of 100

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # TBSRA18-250F
  • Mfr. Model # RA18-250F
  • UNSPSC # 39121432
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.3 lbs

Product Details

This female disconnect has an operating temperature of 221 Degrees F. It measures 0.91 inch L. This female disconnect meets the standards for UL E66716. It has a tin finish, and has 22 AWG minimum wire size to 18 AWG maximum wire size.

Technical Specs

  • ItemFemale Disconnect
  • Contact FinishTin
  • Insulation ColourRed
  • Insulation MaterialNylon
  • Maximum Temperature221 Degrees F
  • Maximum Wire Size18 AWG
  • Overall Length0.91 in
  • Special FeaturesBrazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability
  • Tab Thickness0.032 in
  • Terminal TypeSocket
  • UL 94 Flammability RatingNot Rated
  • Barrel StyleFunnel Entry
  • Barrel Inside Diameter 0.06 in
  • Contact Material Copper
  • Insulation Coverage Partial Coverage
  • Insulation Type Nylon
  • Maximum Voltage 600V
  • Minimum Wire Size 22 AWG
  • Seam Style Brazed
  • Standards UL E66716
  • Tab Width 0,25 po
  • Termination Style Crimp
  • Barrel Size Long
  • RoHS Compliant No
  • Country of Origin United States (subject to change)
