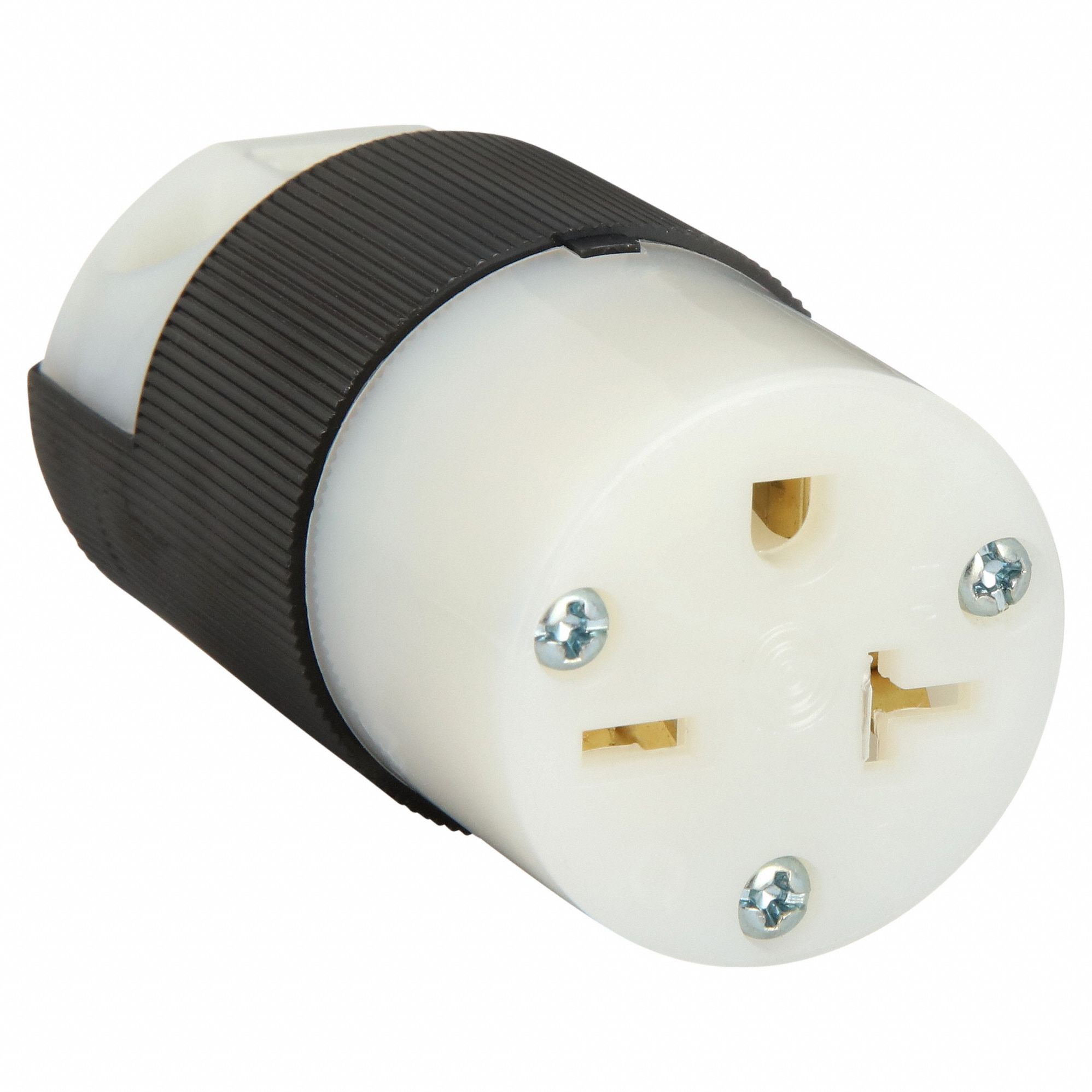

STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE

STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE

HUBBELL WIRING DEVICE-KELLEMS

STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE

STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $85.22 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL5469C
  • Mfr. Model # HBL5469C
  • UNSPSC # 39121702
  • CATALOGUE PAGE # 85
  • Shipping Weight 0.2 lbs

Product Details

Industrial straight blade connector. Ribbed nylon housing. Picture window wiring & angled wiring entrance holes permit straight in conductor insertion. Vari-Size cord grip. Accepts 10/3 SO to 18/3 SJ cord. UL listed, CSA certified.

Technical Specs

  • ItemStraight Blade Connector
  • Current Rating20 A
  • IP RatingIP20
  • Number of Poles2
  • PhaseSingle
  • Voltage Rating250V AC
  • Wiring StyleStandard
  • PolarizedYes
  • Contact MaterialBrass
  • For LocationIndoor
  • For Minimum Cable Diameter0.23 in
  • GroundingGrounded
  • Housing MaterialThermoplastic Elastomer
  • MarketCommercial, Industrial
  • Maximum Wire Size10 AWG
  • Minimum Wire Size18 AWG
  • Power Indicating LightNo
  • Connection Orientation Straight
  • Housing Colour Black, White
  • NEMA Receptacle Configuration 6-20R
  • Number of Wires 3
  • Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant
  • Wire Connection Type Screw Terminals
  • Cap Type No Cap or Cover
  • Shrouded No
  • For Environment Dry
  • For Maximum Cable Diameter 0.72 in
  • Grade Industrial
  • Horsepower Rating 2 hp
  • Insulation Material Nylon
  • Maximum Operating Temperature 75 Degrees C
  • Minimum Operating Temperature -40 Degrees C
  • Overall Length 2.78 in
  • Standards CSA Certified, NEMA WD-6, UL Listed
  • Country of Origin United States (subject to change)
