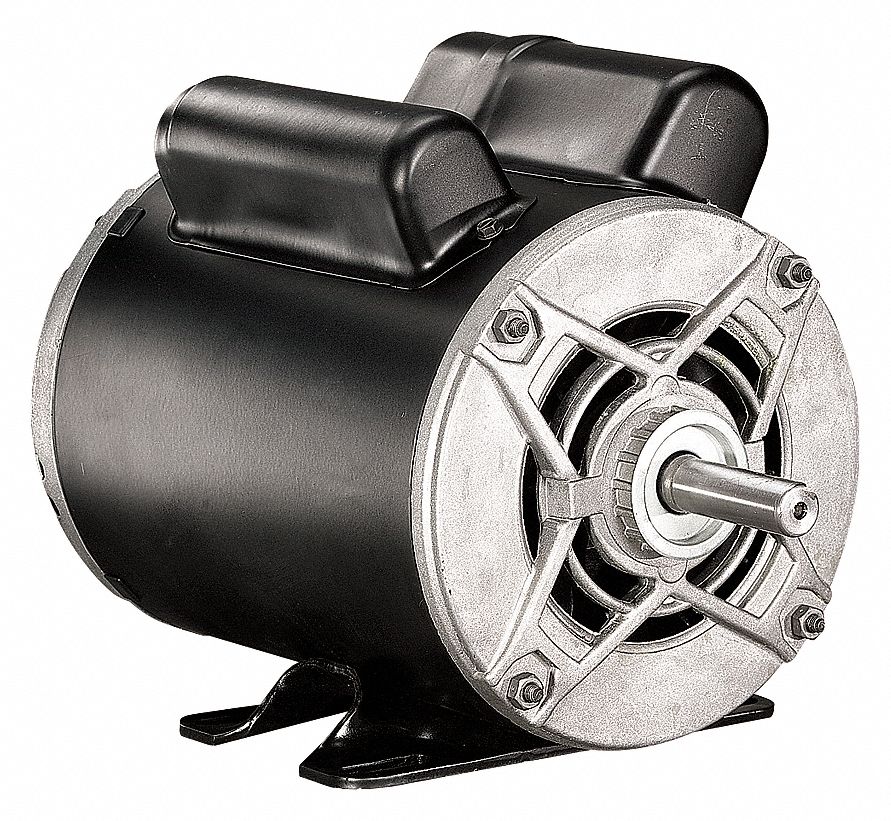

COMPRESSOR MOTOR,3 HP,3450,230 V,56

COMPRESSOR MOTOR,3 HP,3450,230 V,56

MARATHON

COMPRESSOR MOTOR,3 HP,3450,230 V,56 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
COMPRESSOR MOTOR,3 HP,3450,230 V,56

COMPRESSOR MOTOR,3 HP,3450,230 V,56

MARATHON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $667.74 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # AOS9036
  • Mfr. Model # 9036
  • UNSPSC # 26101602
  • CATALOGUE PAGE # 13
  • Shipping Weight 32.8 lbs

Product Details

1-Phase commercial-duty, open dripproof air compressor motor, 3 HP, 3,450 namplate RPM, 230 voltage.

Technical Specs

  • ItemAir Compressor Motor
  • PhaseSingle
  • HP3
  • No. of Speeds1
  • Full Load Amps14.0
  • Hz60
  • Motor Thermal ProtectionManual
  • Max. Ambient Temp.40 Degrees C
  • Motor Shaft RotationCW/CCW
  • Motor Mounting TypeRigid Base
  • Motor Frame MaterialSteel
  • Shaft Length1 7/8 in
  • Motor BearingsBall
  • Length Less Shaft10 3/4 in
  • StandardsUL Recognized (E14133), CSA Certified (MC161850)
  • Motor Application Air Compressor
  • Motor Design Capacitor-Start/Run
  • Nameplate RPM 3,450
  • Voltage 230V AC
  • Frame 56
  • Motor Service Factor 1
  • Ins. Class B
  • Duty Cycle Continuous
  • Motor Enclosure Design Open Dripproof
  • Motor Mounting Position Horizontal
  • Shaft Dia. 5/8 in
  • Motor Shaft Design Keyed
  • Overall Length 12 5/8 in
  • Weight 36 lb
  • Includes Capacitor
