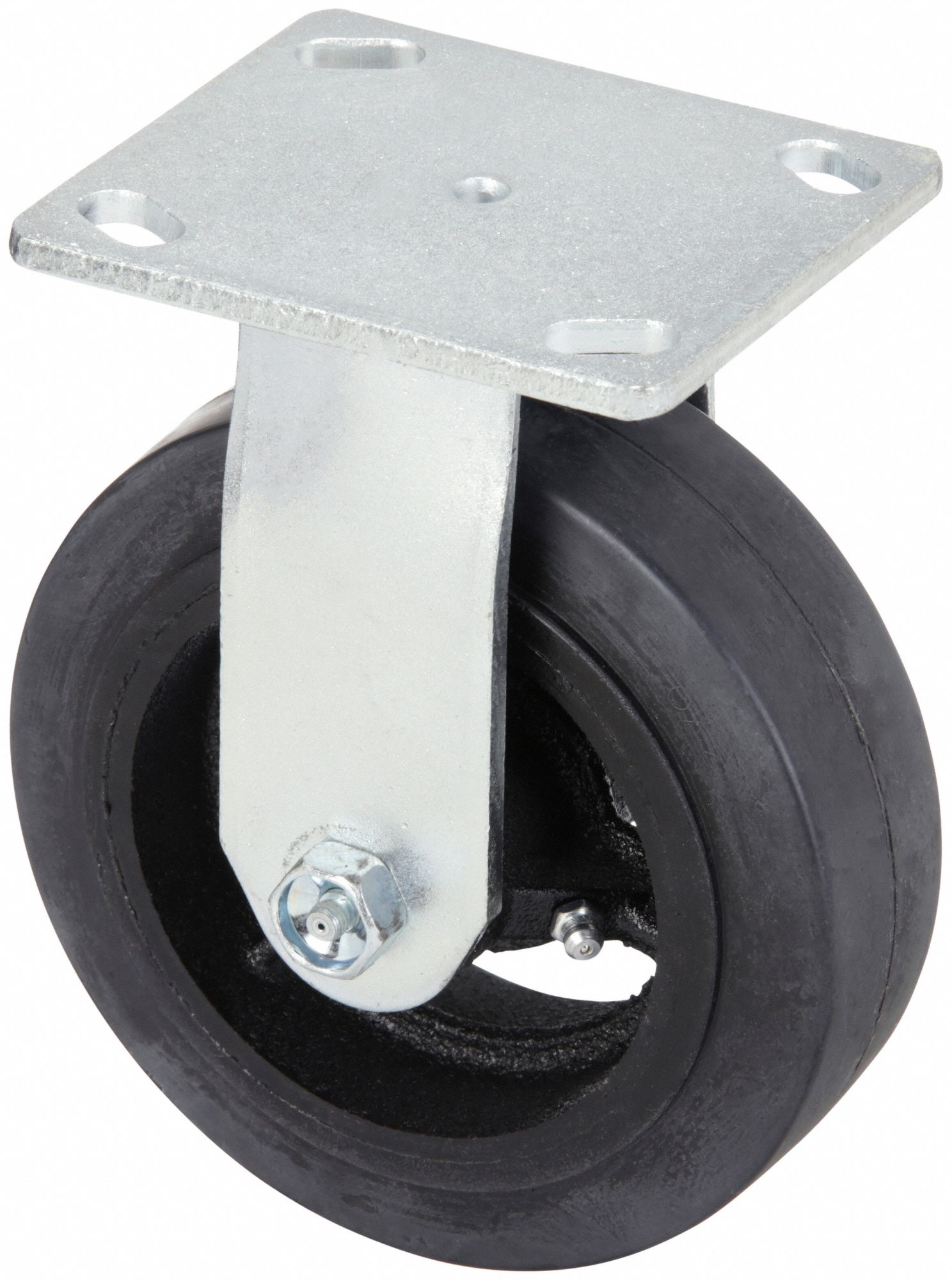

STANDARD PLATE CASTER, 5 IN WHEEL DIAMETER, 400 LB, 6½ IN MOUNTING H, RIGID CASTER

STANDARD PLATE CASTER, 5 IN WHEEL DIAMETER, 400 LB, 6½ IN MOUNTING H, RIGID CASTER

APPROVED VENDOR

STANDARD PLATE CASTER, 5 IN WHEEL DIAMETER, 400 LB, 6½ IN MOUNTING H, RIGID CASTER close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
STANDARD PLATE CASTER, 5 IN WHEEL DIAMETER, 400 LB, 6½ IN MOUNTING H, RIGID CASTER

STANDARD PLATE CASTER, 5 IN WHEEL DIAMETER, 400 LB, 6½ IN MOUNTING H, RIGID CASTER

APPROVED VENDOR

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $55.39 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # GGM1NWJ3
  • Mfr. Model # 1NWJ3
  • UNSPSC # 31162701
  • CATALOGUE PAGE # N/A
  • Shipping Weight 5.29 lbs

Product Details

Zinc-plated finish. Double swivel raceways. Field-installable brakes sold separately.

Technical Specs

  • ItemPlate Caster
  • Caster Frame MaterialSteel
  • IncludesSpanner Bushing
  • Mounting Bolt Dia.3/8 in
  • Tread ShapeStandard
  • Wheel Dia.5 in
  • Wheel Width2 in
  • Wheel/Tread MaterialRubber
  • Non-MarkingNo
  • System of MeasurementInch
  • Frame FinishZinc Plated
  • Number of Mounting Holes4
  • Swivel ConstructionKingpinless
  • Wheel Core MaterialIron
  • Caster Brake Type No Brake
  • Caster Sub-Type Rigid
  • Load Capacity - Maximum 400 lb
  • Mounting Height 6 1/2 in
  • Wheel Bearing Type Roller
  • Wheel Hardness Rating 85 Shore A
  • Wheel/Tread Colour Black
  • Core Colour Black
  • Number of Wheels 1
  • Features Antistatic
  • Includes Thread Guards No
  • Standards ANSI ICWM
  • Swivel Lock Type No Lock Included
  • Country of Origin China (subject to change)
