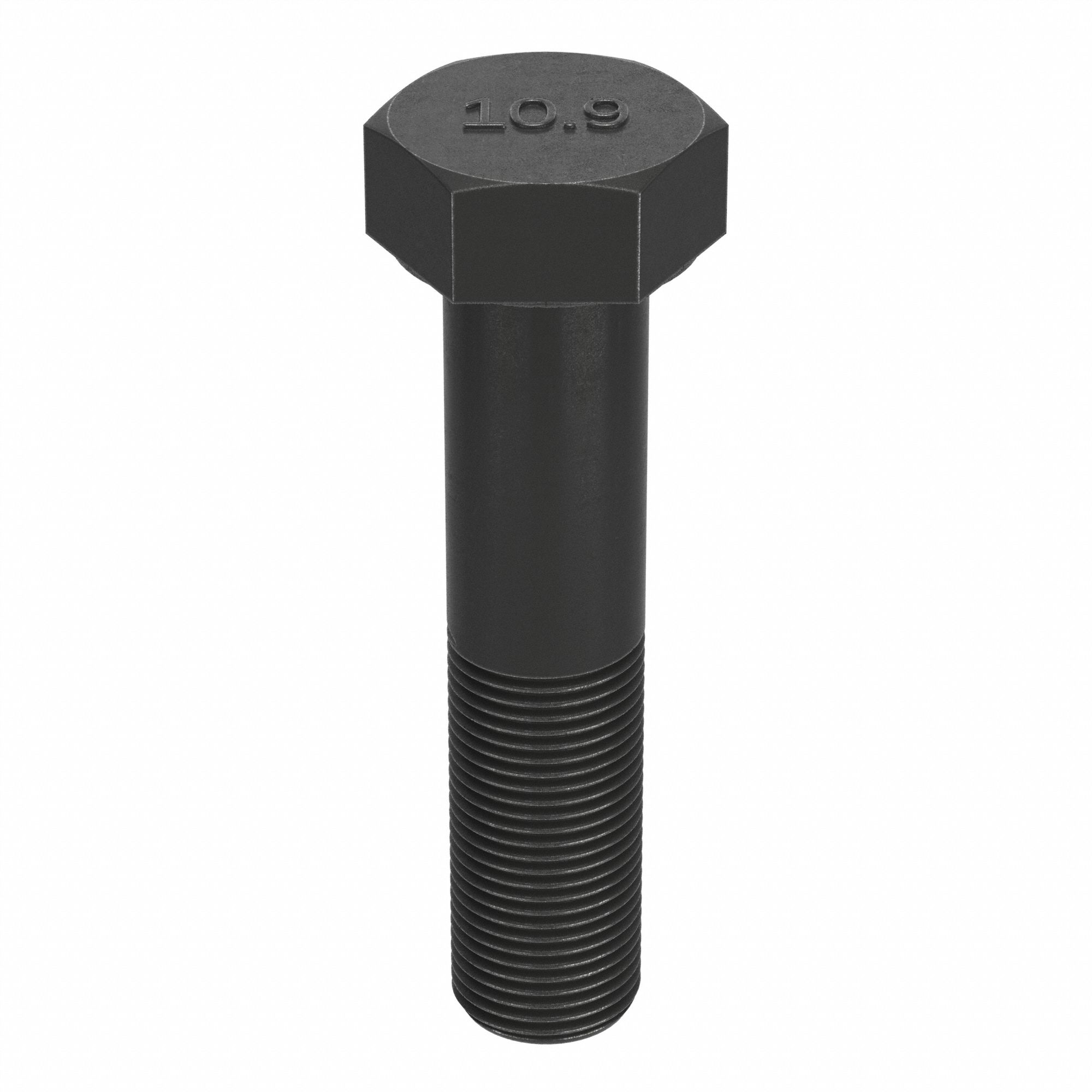

HEX HEAD CAP SCREW, STEEL, CLASS 10.9, BLACK OXIDE, M16-1.50, FINE, 90MM L, METRIC, DIN 960, 10 PK
HEX HEAD CAP SCREW, STEEL, CLASS 10.9, BLACK OXIDE, M16-1.50, FINE, 90MM L, METRIC, DIN 960, 10 PK
APPROVED VENDOR
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
Zoom In: Double click on image.
Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Compare
Product Details
This hex head cap screw is made of Class 10.9 steel and has a black oxide finish. It comes in a 10-pack and meets the standards for DIN 960 dimensional standards.
Technical Specs
Item Hex Head Cap Screw Material Grade/Class Class 10.9 Thread Size M16x1.50 Fastener Length 90 mm Head Width 24 mm Drive Hex Rockwell Hardness C32 System of Measurement Metric Thread Style Partially Threaded Minimum Temperature -58 Degrees F Head Style Hex Thread Type Fine
Material Steel Finish Black Oxide Thread Direction Right Hand Minimum Thread Length 38 mm Head Height 10 mm Tensile Strength 150,800 psi Dimensional Standards DIN 960 Overall Length 90 mm Type Hex Head Cap Screw Maximum Temperature 302 Degrees F Thread Pitch 1.5 mm Screw Size M16 Country of Origin Varies
(subject to change)
