SPLICE CONNECTOR, 18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, 1,000 PK

SPLICE CONNECTOR, 18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, 1,000 PK

PANDUIT

SPLICE CONNECTOR, 18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, 1,000 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPLICE CONNECTOR, 18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, 1,000 PK

SPLICE CONNECTOR, 18 AWG/20 AWG/22 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, 1,000 PK

PANDUIT

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $680.69 / pkg. of 1000

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG39AY26
  • Mfr. Model # BSN18-M
  • UNSPSC # 39121409
  • CATALOGUE PAGE # 93
  • Shipping Weight 2.9 lbs

Product Details

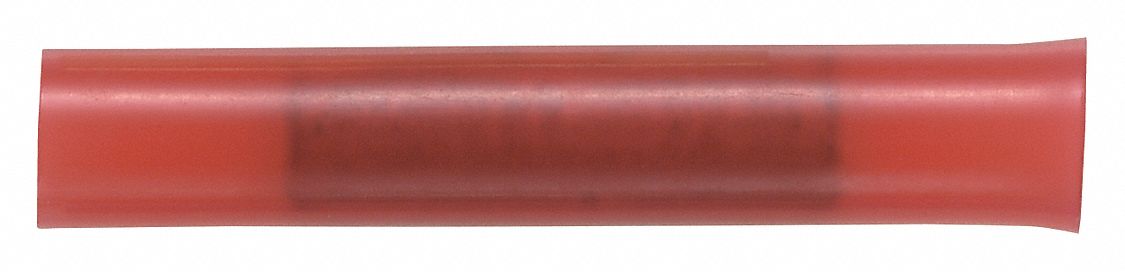

This splice connector has an operating temperature of 221 Degrees F. It measures 0.2 inch W x 1.15 inch L. This splice connector meets the standards for CSA C22.2 No. 65, UL 486C. It is made of plastisol with a tin-plated finish, and has 22 AWG minimum wire size to 18 AWG maximum wire size.

Technical Specs

  • ItemSplice Connector
  • Insulation MaterialNylon
  • Maximum Wire Size18 AWG
  • StandardsCSA C22.2 No. 65, UL 486C
  • Barrel Inside Diameter0.13 in
  • Body FinishTin Plated
  • Connection TypeCrimp
  • Contact MaterialCopper
  • For Wire TypeStranded
  • Maximum Voltage600V AC
  • Overall Length1.15 in
  • Seam StyleBrazed
  • Strip Length5/16 in
  • Insulation Colour Red
  • Insulation Type Nylon
  • Minimum Wire Size 22 AWG
  • Termination Style Crimp
  • Barrel Outside Diameter 0.2 in
  • Body Material Copper
  • Contact Finish Tin
  • For Maximum Wire Insulation Diameter 0.115 in
  • Maximum Operating Temperature 221 Degrees F
  • Number of Splices 2
  • Overall Width 0.2 in
  • Special Features Butted Configuration Provides Low Profile for Limited Space Applications
  • Country of Origin United States (subject to change)
