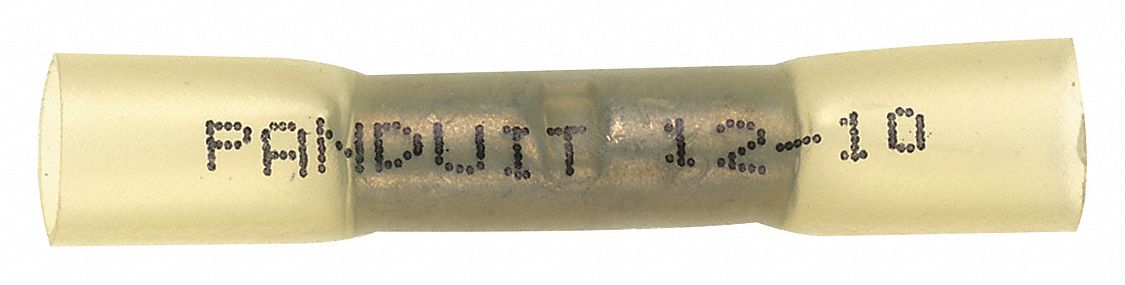

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, POLYOLEFIN, 20 PK

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, POLYOLEFIN, 20 PK

PANDUIT

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, POLYOLEFIN, 20 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, POLYOLEFIN, 20 PK

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA C22.2 NO. 65/UL 486C, POLYOLEFIN, 20 PK

PANDUIT

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $88.94 / pkg. of 20

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG39AY18
  • Mfr. Model # BSH10-E
  • UNSPSC # 39121409
  • CATALOGUE PAGE # 93
  • Shipping Weight 0.15 lbs

Product Details

This splice connector has an operating temperature of 257 Degrees F. It measures 1.64 inch L. This splice connector meets the standards for CSA C22.2 No. 65, UL 486C. It is made of plastisol with a tin-plated finish, and has 12 AWG minimum wire size to 10 AWG maximum wire size.

Technical Specs

  • ItemSplice Connector
  • Insulation MaterialPolyolefin
  • Maximum Wire Size10 AWG
  • StandardsCSA C22.2 No. 65, UL 486C
  • Barrel Inside Diameter0.24 in
  • Body MaterialCopper
  • Connection TypeCrimp
  • Contact MaterialCopper
  • For Wire TypeStranded
  • Maximum Voltage600V AC
  • Number of Splices2
  • Seam StyleBrazed
  • Strip Length5/16 in
  • Insulation Colour Yellow
  • Insulation Type Heat Shrink
  • Minimum Wire Size 12 AWG
  • Termination Style Crimp
  • Body Finish Tin Plated
  • Compatible Installation Tool Model Number CT-310
  • Contact Finish Tin
  • For Maximum Wire Insulation Diameter 0.24 in
  • Maximum Temperature 257 Degrees F
  • Minimum Operating Temperature -65 Degrees F
  • Overall Length 1.64 in
  • Special Features Heat Shrink Polyolefin Sleeve with Hot Melt Adhesive Protects Against Moisture
  • Country of Origin United States (subject to change)
