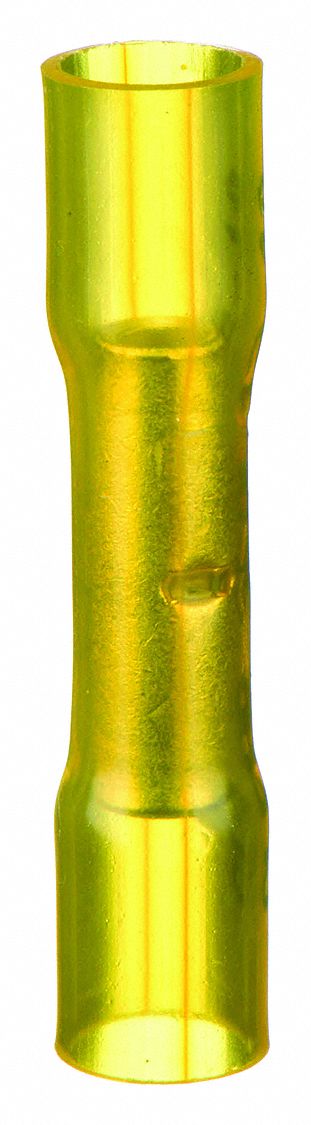

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA CERTIFIED/UL LISTED, NYLON, CRIMP, 10 PK

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA CERTIFIED/UL LISTED, NYLON, CRIMP, 10 PK

VELVAC

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA CERTIFIED/UL LISTED, NYLON, CRIMP, 10 PK close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA CERTIFIED/UL LISTED, NYLON, CRIMP, 10 PK

SPLICE CONNECTOR, 10 AWG/12 AWG WIRE SIZE RANGE, CSA CERTIFIED/UL LISTED, NYLON, CRIMP, 10 PK

VELVAC

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $20.67 / pkg. of 10

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG21DG58
  • Mfr. Model # 37430
  • UNSPSC # 39121409
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.08 lbs

Product Details

This splice connector has an operating temperature of 221 Degrees F. It measures 1.75 inch L. This splice connector meets the standards for CSA and UL. It has 12 AWG minimum wire size to 10 AWG maximum wire size.

Technical Specs

  • ItemSplice Connector
  • Insulation MaterialNylon
  • Maximum Wire Size10 AWG
  • StandardsCSA Certified, UL Listed
  • Barrel Inside Diameter0.142 in
  • Contact MaterialCopper
  • Maximum Voltage600V AC
  • Seam StyleOverlapped
  • RoHS CompliantYes
  • Insulation Colour Yellow
  • Insulation Type Heat Shrink
  • Minimum Wire Size 12 AWG
  • Termination Style Crimp
  • Connection Type Crimp
  • Maximum Temperature 221 Degrees F
  • Overall Length 1.75 in
  • Special Features Better Abrasion Resistance, Clear Seal Tubing Features Increase Clarity, Greater Tensile Strength
  • Country of Origin United States (subject to change)
