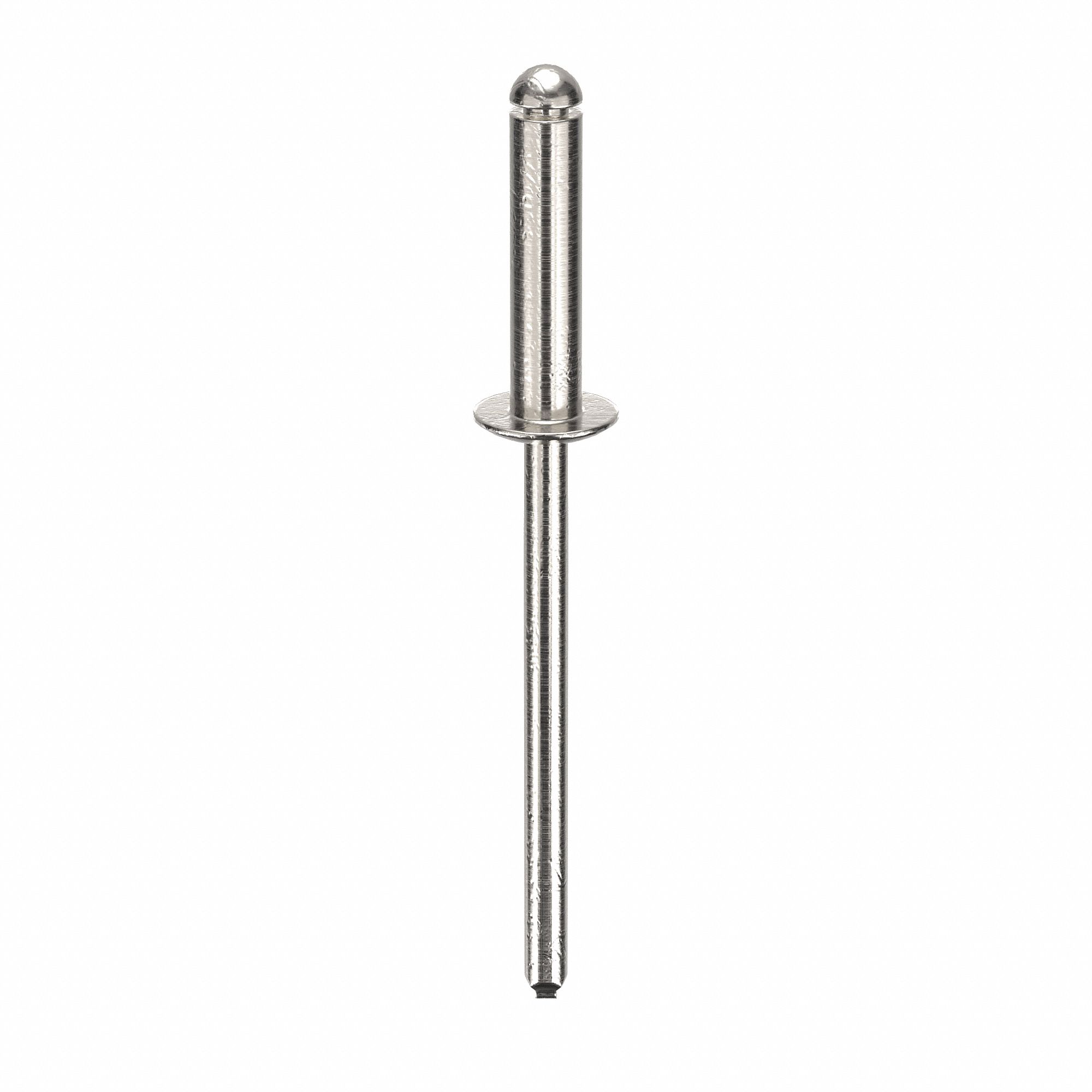

BLIND RIVET, 1⅝ IN L, ⅛ IN DIA, INCH, 1⅝ IN OVERALL L, 17/32 IN BODY L, DOME, 500 PK
BLIND RIVET, 1⅝ IN L, ⅛ IN DIA, INCH, 1⅝ IN OVERALL L, 17/32 IN BODY L, DOME, 500 PK
APPROVED VENDOR
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
- Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
- Zoom In: Double click on image.
- Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Product Details
This blind rivet is made of IFI-114-11 aluminum and has a bright (uncoated) finish. Plus, it is grey and meets the standards for IFI-114.
Technical Specs
- ItemBlind Rivet
- Overall Length1 5/8 in
- Shank Diameter0.125 in
- Body MaterialAluminum
- Head TypeDome
- Head Angle90 Degrees
- Tensile Strength150 lb
- Minimum Material Thickness5/16 in
- Material Grade/ClassIFI-114-11
- ColourGrey
- StandardsIFI-114
- Head Diameter Tolerance+/-0.012 in
- Blind Rivet TypeOpen End
- System of Measurement Inch
- Body Length 17/32 in
- Product Type Blind Rivet
- Finish Bright (Uncoated)
- Head Diameter 1/4 in
- Shear Strength 120 lb
- Maximum Hole Diameter 0.133 in
- Maximum Material Thickness 3/8 in
- Mandrel Material Aluminum
- Minimum Hole Diameter 0.129 in
- Drill Size #30
- Rivet Number 46
- Body Length Tolerance -0.004 in/+0.020 in
- Country of Origin Varies
(subject to change)
