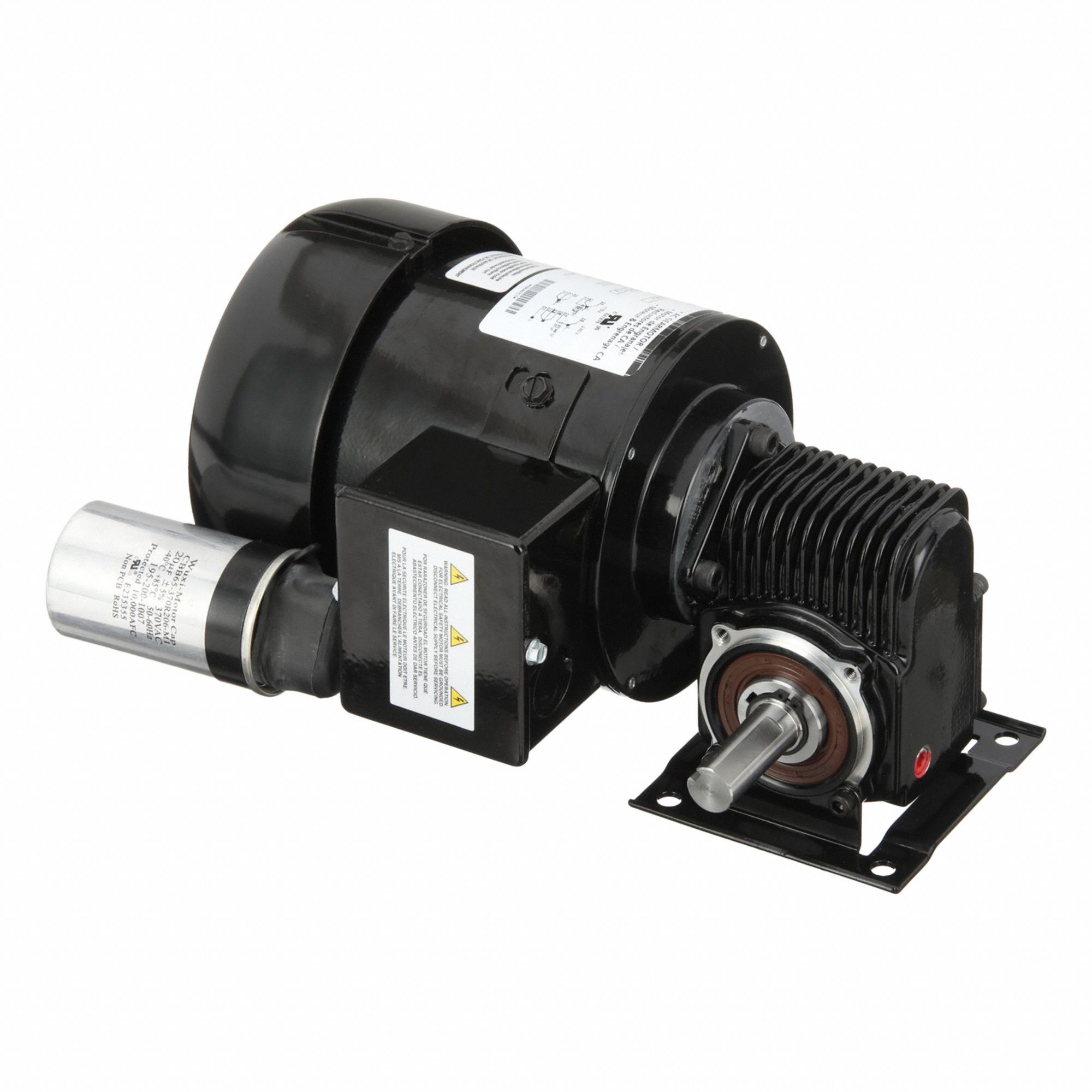

AC GEARMOTOR, RIGHT ANGLE, SINGLE OUTPUT SHAFT, PSC, TEFC, 330 RPM, 15 IN-LB MAXIMUM TORQUE, 5,1

AC GEARMOTOR, RIGHT ANGLE, SINGLE OUTPUT SHAFT, PSC, TEFC, 330 RPM, 15 IN-LB MAXIMUM TORQUE, 5,1

DAYTON

AC GEARMOTOR, RIGHT ANGLE, SINGLE OUTPUT SHAFT, PSC, TEFC, 330 RPM, 15 IN-LB MAXIMUM TORQUE, 5,1 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
AC GEARMOTOR, RIGHT ANGLE, SINGLE OUTPUT SHAFT, PSC, TEFC, 330 RPM, 15 IN-LB MAXIMUM TORQUE, 5,1

AC GEARMOTOR, RIGHT ANGLE, SINGLE OUTPUT SHAFT, PSC, TEFC, 330 RPM, 15 IN-LB MAXIMUM TORQUE, 5,1

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $1,398.12 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG3XA87
  • Mfr. Model # 3XA87
  • UNSPSC # 20101617
  • CATALOGUE PAGE # 32
  • Shipping Weight 19.0 lbs

Technical Specs

  • ItemAC Gearmotor
  • Motor TypePermanent Split Capacitor
  • Nameplate Speed330 RPM
  • Overhung Load Capacity200 lb
  • Output Shaft Height1.69 in
  • Operating Voltage115/230V AC
  • Gear Ratio5:1
  • Output LocationRight Hand
  • Includes CapacitorCapacitor Included
  • Capacitor RequiredYes
  • Full Load Current2.35/1.25 A
  • Housing MaterialDie Cast Aluminum
  • Keyway Depth1/8 in
  • LubricationOil Filled
  • Mount Hole Center-to-Center Length3 in
  • Mount TypeAny Position
  • Output Shaft Length1 1/2 in
  • Overall Width5.63 in
  • Seal TypeLip Type on Input and Output Shaft
  • Thermal ProtectionNone
  • Number of Output Shafts 1
  • Motor Enclosure Totally Enclosed Fan-Cooled
  • Maximum Torque 15 in-lb
  • Rotation CW/CCW
  • Mounting Orientation Any Angle
  • Inverter Rated No
  • Brake Type None
  • Shaft Orientation Right Angle
  • Bearing Type Ball on Motor, Needle on Case
  • Frequency 50 Hz, 60 Hz
  • Gear Material Hardened Steel
  • Input Horsepower 0.25 hp
  • Keyway Width 3/16 in
  • Maximum Ambient Temperature 104 Degrees F
  • Mount Hole Centre-to-Centre Width 3.25 in
  • Output Shaft Diameter 5/8 in
  • Overall Height 6 in
  • Phase Single
  • Standards C-UL Recognized, UL Recognized
  • Inverter Rating 5:1
  • Country of Origin United States (subject to change)
