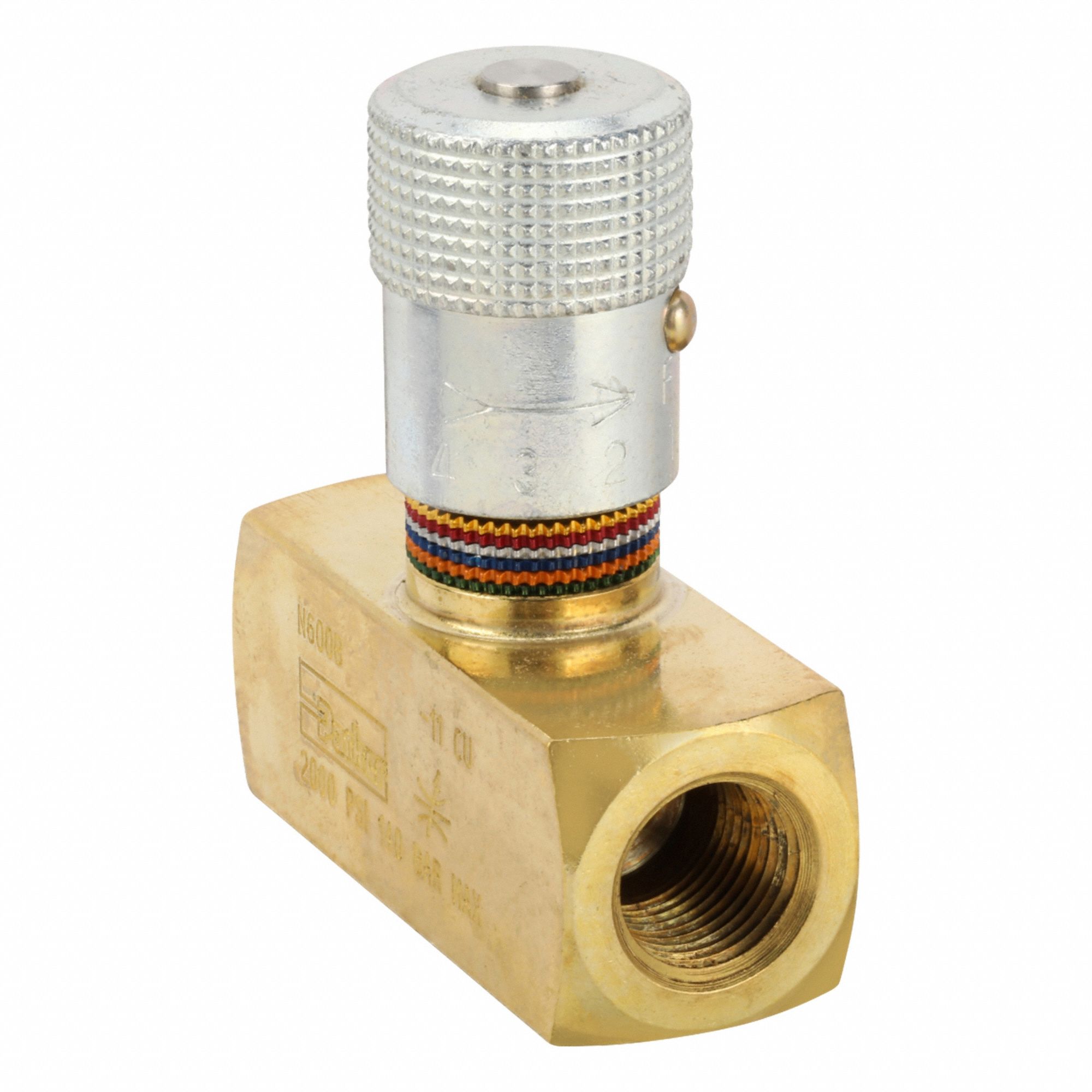

NEEDLE VALVE, 8 GPM MAXIMUM FLOW RATE, 3/8 IN NPT THREAD, 2,000 PSI MAXIMUM PRESSURE, BRASS

NEEDLE VALVE, 8 GPM MAXIMUM FLOW RATE, 3/8 IN NPT THREAD, 2,000 PSI MAXIMUM PRESSURE, BRASS

PARKER

NEEDLE VALVE, 8 GPM MAXIMUM FLOW RATE, 3/8 IN NPT THREAD, 2,000 PSI MAXIMUM PRESSURE, BRASS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
NEEDLE VALVE, 8 GPM MAXIMUM FLOW RATE, 3/8 IN NPT THREAD, 2,000 PSI MAXIMUM PRESSURE, BRASS

NEEDLE VALVE, 8 GPM MAXIMUM FLOW RATE, 3/8 IN NPT THREAD, 2,000 PSI MAXIMUM PRESSURE, BRASS

PARKER

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $162.25 / each

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # DYEN600B
  • Mfr. Model # N600B
  • UNSPSC # 40141628
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.85 lbs

Technical Specs

  • ItemNeedle Valve
  • Adjustment MethodRotary Knob
  • Coefficient of Volume (Cv)0.787
  • For MediaAir, Oil
  • Inlet Connection GenderFemale
  • Inlet Connection TypeNPT
  • Operating Temperature - Minimum-40 Degrees F
  • Outlet Connection GenderFemale
  • Outlet Connection TypeNPT
  • Seal MaterialNitrile
  • Control DirectionOne-Way
  • MountingInline
  • Overall Length2.5 in
  • Port-to-Port Length2.5 in
  • Valve ControlFlow Control
  • Actuation Mechanism Manual
  • Body Material Brass
  • Flow Rate - Maximum 8 gpm
  • Inlet Connection Dash Size 18
  • Inlet Connection Size 3/8 in
  • Operating Temperature - Maximum 250 Degrees F
  • Outlet Connection Dash Size 18
  • Outlet Connection Size 3/8 in
  • Pressure - Maximum 2,000 psi
  • Valve Type Needle
  • Includes Seals Seals Included
  • Overall Height 2.68 in
  • Overall Width 1 in
  • Series N
